SAP ABAP Table CRMT_BW_SALES_ORDER_I (BW: Datasource for CRM Sales Orders - Item Data)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-ANA-RFW (Application Component) Reporting Framework
     ⤷ CRM_REPORT (Package) Operative Reporting in CRM

Basic Data

Table Category	INTTAB	Structure

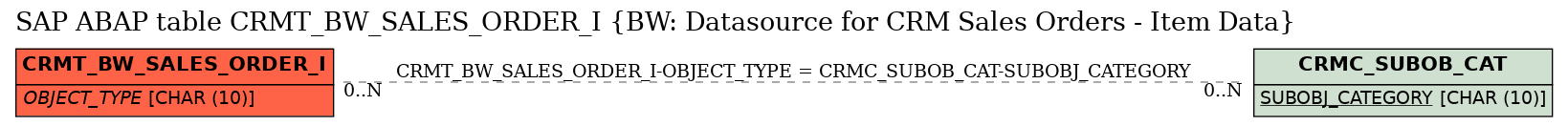

Structure	CRMT_BW_SALES_ORDER_I	Table Relationship Diagram
Short Description	BW: Datasource for CRM Sales Orders - Item Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	ORDERADM_H Data for BW DataSources
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
4	OBJECT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
5	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
6	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
7	DESCRIPTION_UC	☐	CRMT_PROCESS_DESCRIPTION_UC	CRM_PROCESS_DESCRIPTION_UC	CHAR	40	0	Transaction Description (Upper Case)
8	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
9	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
10	OBJECT_TYPE	☐	CRMT_SUBOBJECT_CATEGORY	CRM_OJ_NAME_PROCESS	CHAR	10	0	Business Transaction Category	CRMC_SUBOB_CAT
11	CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
12	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
13	CHANGED_AT	☐	CRMT_OPPT_CHANGED_AT	DATUM	DATS	8	0	Time of Last Change to the Transaction
14	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
15	RECORDMODE	☐	RODMUPDMOD	RODMUPDMOD	CHAR	1	0	BW Delta Process: Record Mode
16	NUM_OF_HEAD	☐	CRMT_NUMBER_OF_H	INT4	INT4	10	0	Order Header Number
17	OCCURRENCE	☐	CRMT_OCC_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
18	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
19	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
20	OCCURR_QUOT	☐	CRMT_QUO_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
21	OCCURR_CONT	☐	CRMT_CON_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
22	REF_UPDATE	☐	CRMT_FLG_REF_UPDATE_BW	XFELD	CHAR	1	0	Flag: Ref. Update (Extract Structure Only Partially Filled)
23	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
24	CREATED_TS	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
25	CHANGED_TS	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
26	.INCLUDE	☐				0	0	ORDERADM_I Data for BW DataSources
27	ITEM_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
28	ITEM_CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
29	ITEM_CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
30	ITEM_CHANGED_AT	☐	CRMT_OPPT_CHANGED_AT	DATUM	DATS	8	0	Time of Last Change to the Transaction
31	ITEM_CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
32	ORDER_DATE	☐	CRMT_OPPT_ORDER_DATE	DATUM	DATS	8	0	Posting Date
33	NUMBER_INT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
34	ITEM_OBJECT_TYPE	☐	CRMT_SWO_OBJTYP_PROCESS_ITEM	CRM_OJ_NAME_PROCESS_ITEM	CHAR	10	0	CRM Item Object Type	*
35	ITM_TYPE	☐	CRMT_ITEM_TYPE	CRM_ITEM_TYPE	CHAR	4	0	Item Category	*
36	NUMBER_OF_I	☐	CRMT_NUMBER_OF_I	INT4	INT4	10	0	Order Item Number
37	BW_ASSIGN	☐	CRMT_BW_ASSIGN	CRMT_BW_ASSIGN	CHAR	1	0	Assign BW and CO
38	ITM_USAGE	☐	CRMT_ITEM_USAGE	CRM_ITEM_USAGE	CHAR	2	0	Usage of Higher-Level Item
39	ITM_TYPE_USAGE	☐	CRMT_IT_TYPE_USAGE	CRM_IT_TYPE_USAGE	CHAR	4	0	Item Category Usage	*
40	ALTERNATIVE	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
41	PARENT	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
42	ITM_BP	☐	CRM_ISU_PARTNER_NO	CRM_ISU_PARTNER_NO	CHAR	10	0	Partner Number
43	ITEM_CREATED_TS	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
44	ITEM_CHANGED_TS	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
45	ORDER_DATE_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
46	.INCLUDE	☐				0	0	PARTNER (Sales) Data for BW DataSources
47	SOLD_TO_PARTY	☐	CRMT_SOLD_TO_PART	BU_PARTNER	CHAR	10	0	Sold-To Party	*
48	SHIP_TO_PARTY	☐	CRMT_SHIP_TO_PART	BU_PARTNER	CHAR	10	0	Ship-To Party	*
49	BILL_TO_PARTY	☐	CRMT_BILL_TO_PART	BU_PARTNER	CHAR	10	0	Bill-To Party	*
50	PAYER	☐	CRMT_RP_PAYER	BU_PARTNER	CHAR	10	0	Payer	*
51	SOLD_FROM	☐	CRMT_SOLD_FROM_PARTY_ID	BU_PARTNER	CHAR	10	0	Salesperson ID	*
52	.INCLUDE	☐				0	0	PARTNER (Locator) Various Partner Functions
53	INSTALL_AT	☐	CRMT_INSTALL_AT_PART	BU_PARTNER	CHAR	10	0	Installed At	*
54	INSTALL_AT_LIST	☐	CRMT_INSTALL_AT_LIST	CHAR80	CHAR	80	0	Installed At - Name
55	RESPONS_AT_PARTNER	☐	CRMT_RESPONSIBLE_AT_PARTNER	BU_PARTNER	CHAR	10	0	Person Responsible at Partners (Channel Management)	*
56	END_CUSTOMER	☐	CRMT_END_CUSTOMER	BU_PARTNER	CHAR	10	0	End Customer (Channel Management)	*
57	RESP_AT_PART	☐	CRMT_RESPONSIBLE_AT_PARTNER	BU_PARTNER	CHAR	10	0	Person Responsible at Partners (Channel Management)	*
58	.INCLUDE	☐				0	0	PARTNER (General) Data for BW DataSoures
59	SALES_EMPLOYEE	☐	CRMT_SALES_EMPLOYEE	BU_PARTNER	CHAR	10	0	Employee	*
60	PERSON_RESP	☐	CRMT_PERSON_RESP	BU_PARTNER	CHAR	10	0	Employee Responsible	*
61	CONTACT_PERSON	☐	CRMT_CONTACT_PERSON	BU_PARTNER	CHAR	10	0	Customer Contact Person	*
62	SALESPARTNER	☐	CRMT_SALESPARTNER	BU_PARTNER	CHAR	10	0	Sales Partners	*
63	RESP_GROUP_RFW	☐	CRMT_RESPONSIBLE_GROUP	BU_PARTNER	CHAR	10	0	Responsible Group	*
64	PLANNING_ACCOUNT	☐	CRMT_PLANNING_ACCOUNT	BU_PARTNER	CHAR	10	0	Planning Account	*
65	.INCLUDE	☐				0	0	PARTNER (Call Center) Data for BW Datasoures
66	EXECUTING_CC	☐	CRMT_EXECUTING_CC	BU_PARTNER	CHAR	10	0	Executing Interaction Center	*
67	RESP_GROUP	☐	CRMT_RESPONSIBLE_GROUP	BU_PARTNER	CHAR	10	0	Responsible Group	*
68	.INCLUDE	☐				0	0	ORGMAN Data for BW DataSources
69	SALES_ORG_RESP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
70	SALES_ORG	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
71	SALES_OFFICE	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
72	SALES_GROUP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
73	DIS_CHANNEL	☐	CRMT_DISTRIBUTION_CHANNEL	CRM_DISTRIBUTION_CHANNEL	CHAR	2	0	Distribution Channel	*
74	DIVISION	☐	CRMT_DIVISION	CRM_DIVISION	CHAR	2	0	Division	*
75	SERVICE_ORG_RESP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
76	SERVICE_ORG	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
77	PURCH_ORG_RESP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
78	PURCH_ORG	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
79	PURCH_GROUP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
80	IC_BD_CCODE	☐	CRM_IC_BD_CCODE	BUKRS	CHAR	4	0	Company Code for a Business Transaction	*
81	IC_BD_LOGSYS	☐	CRM_IC_BD_LOGSYS	LOGSYS	CHAR	10	0	Logical System for a Business Transaction	*
82	.INCLUDE	☐				0	0	SALES Data for BW DataSources
83	CUST_GROUP1	☐	CRMT_CUST_GROUP1	CRM_CUST_GROUP1	CHAR	3	0	Customer Group 1	*
84	CUST_GROUP2	☐	CRMT_CUST_GROUP2	CRM_CUST_GROUP2	CHAR	3	0	Customer Group 2	*
85	CUST_GROUP3	☐	CRMT_CUST_GROUP3	CRM_CUST_GROUP3	CHAR	3	0	Customer Group 3	*
86	CUST_GROUP4	☐	CRMT_CUST_GROUP4	CRM_CUST_GROUP4	CHAR	3	0	Customer Group 4	*
87	CUST_GROUP5	☐	CRMT_CUST_GROUP5	CRM_CUST_GROUP5	CHAR	3	0	Customer Group 5	*
88	INDUSTRY	☐	CRMT_INDUSTRY	CRM_INDUSTRY	CHAR	4	0	Industry Sector	*
89	REJECTION	☐	CRMT_REJECTION_CODE	CRM_REJECTION_CODE	CHAR	2	0	Cancellation Reason Code	*
90	PROBABILITY	☐	CRMT_ORDER_PROBABILITY	CRM_PROBABILITY	NUMC	3	0	Order Probability
91	PCAT_HDR_ID	☐	COMT_PCAT_ID	COM_PCAT_OBJECTID	CHAR	30	0	Product Catalog Number
92	PCAT_VRT_ID	☐	COMT_PCAT_VRT_ID	COM_PCAT_OBJECTID	CHAR	30	0	Catalog Variant Number
93	PCAT_CTY_ID	☐	COMT_PCAT_CTY_ID	COM_PCAT_OBJECTID	CHAR	30	0	Catalog Area Number
94	ABNORMAL_DEMAND	☐	CRMT_ABNORMAL_DEMAND	CRM_ABNORMAL_DEMAND	CHAR	1	0	Abnormal Demand
95	DLV_RELEVANCE	☐	CRMT_DELIVERY_RELEVANT	CRM_DELIVERY_RELEVANT	CHAR	1	0	Delivery-Relevant
96	DATE_QTY_FIXED	☐	CRMT_DATE_QTY_FIXED	CRM_BOOLEAN	CHAR	1	0	Fixed Date and Quantity
97	.INCLUDE	☐				0	0	General Product Data for BW DataSources
98	PRODUCT_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
99	PRODUCT_GUID	☐	CRMT_PRODUCT_GUID_32	SYSUUID_C	CHAR	32	0	GUID for Product CHAR32
100	MATERIAL	☐	CRMT_R3_MATERIAL	CRM_R3_MATERIAL	CHAR	18	0	Distribution CRM -> R/3: Material
101	CATEGORY_ID	☐	COMT_CATEGORY_ID	COM_CATEGORY_ID	CHAR	20	0	Category ID
102	CATEGORY_GUID	☐	COMT_CATEGORY_GUID	SYSUUID	RAW	16	0	Category GUID
103	SHORT_TEXT_UC	☐	COMT_PRSHTEXTX_UP	PRSHTEXTG40	CHAR	40	0	Product Description
104	CATALOG_ID	☐	CATALOG_PL	KATALOGID	CHAR	20	0	Catalog ID, from Which the Line PPR Was Selected	*
105	CATALOG_ITEM_ID	☐	CRMT_CATALOGITEM	CRM_CATALOGITEM	CHAR	40	0	Catalog Item (Unique Key)
106	PARTNER_PROD	☐	CRMT_ITEM_DESCR_PARTNER	PRSHTEXT40	CHAR	40	0	Product Number of Business Partner
107	PARENT_PRODUCT	☐	CRMT_PRODUCT_GUID_32	SYSUUID_C	CHAR	32	0	GUID for Product CHAR32
108	COMPETITOR_PROD	☐	CRMT_PRODUCT_GUID_32	SYSUUID_C	CHAR	32	0	GUID for Product CHAR32
109	REPLACED_PROD	☐	CRMT_PRODUCT_GUID_32	SYSUUID_C	CHAR	32	0	GUID for Product CHAR32
110	.INCLUDE	☐				0	0	PRODUCT_I Data for BW DataSources
111	GROSS_WEIGHT	☐	CRMT_GROSS_WEIGHT	MENG15	QUAN	15	3	Gross Weight
112	NET_WEIGHT	☐	CRMT_NET_WEIGHT	MENG15	QUAN	15	3	Net Weight
113	WEIGHT_UNIT	☐	COMT_WEIGHT_UNIT	MEINS	UNIT	3	0	Weight Unit	*
114	VOLUME	☐	CRMT_VOLUME	MENG15	QUAN	15	3	Volume Occupied by the Product per Volume Unit
115	VOLUME_UNIT	☐	COMT_VOLUME_UNIT	MEINS	UNIT	3	0	Unit for the Volume of a Product	*
116	PROCESS_QTY_NUM	☐	CRMT_PROCESS_QTY_NUM	CRM_PROCESS_QTY_NUM	INT4	10	0	Numerator (factor) for conversion trans. quantity in BME
117	PROCESS_QTY_DEN	☐	CRMT_PROCESS_QTY_DEN	CRM_PROCESS_QTY_DEN	INT4	10	0	Denominator (factor) for conversion trans. quantity in BME
118	EXPONENT10	☐	CRMT_EXPONENT10	CRM_EXPONENT10	INT2	5	0	10 Exponent for Quantity Conversion
119	PROCESS_QTY_UNIT	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
120	PROD_PR_GROUP	☐	CRMT_PROD_PR_GROUP	CRM_PROD_PR_GROUP	CHAR	2	0	Product Group	*
121	PRC_GROUP1	☐	CRMT_PRC_GROUP1	CRM_PRC_GROUP1	CHAR	3	0	Product Group 1	*
122	PRC_GROUP2	☐	CRMT_PRC_GROUP2	CRM_PRC_GROUP2	CHAR	3	0	Product Group 2	*
123	PRC_GROUP3	☐	CRMT_PRC_GROUP3	CRM_PRC_GROUP3	CHAR	3	0	Product Group 3	*
124	PRC_GROUP4	☐	CRMT_PRC_GROUP4	CRM_PRC_GROUP4	CHAR	3	0	Product Group 4	*
125	PRC_GROUP5	☐	CRMT_PRC_GROUP5	CRM_PRC_GROUP5	CHAR	3	0	Product Group 5	*
126	BASE_QTY_UNIT	☐	COMT_PRODUCT_BASE_UOM	MEINS	UNIT	3	0	Base Unit of Measure of Product	*
127	.INCLUDE	☐				0	0	PRICING_H Data for BW DataSources
128	EXCHG_TYPE	☐	CRMT_EXCHG_TYPE	KURST	CHAR	4	0	Exchange Rate Type	*
129	EXCHG_DATE	☐	CRMT_EXCHG_DATE	CRM_EXCHG_DATE	DATS	8	0	Exchange Rate Date
130	EXCHG_RATE	☐	CRMT_EXCHG_RATE	CRM_EXCHG_RATE	DEC	9	5	Exchange Rate
131	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
132	PRICE_DATE	☐	CRMT_PRICE_DATE	CRM_PRICE_DATE	DATS	8	0	Pricing Date
133	REF_CURRENCY	☐	CRMT_REF_CURRENCY	WAERS	CUKY	5	0	Reference Currency	*
134	PMNTTRMS	☐	CRMT_PMNTTRMS	CRM_PMNTTRMS	CHAR	4	0	Terms of Payment	*
135	CUST_GROUP	☐	CRMT_CUST_GROUP	CRM_CUST_GROUP	CHAR	2	0	Customer Group	*
136	CUSTOMER_TYPE	☐	CRMT_CUSTOMER_TYPE	BU_KIND	CHAR	4	0	Business Partner Type	*
137	.INCLUDE	☐				0	0	PRICING_I Data for BW DataSources
138	NET_VALUE_MAN	☐	CRMT_NET_VALUE_MAN	WERTV8	CURR	15	2	Total Expected Net Value Products in Document Currency
139	TARGET_VALUE	☐	CRMT_TARGET_VALUE	WERTV10	CURR	19	2	Target Value for Contracts
140	NET_PRICE	☐	CRMT_NET_PRICE	WERTV8	CURR	15	2	Net Price
141	NET_VALUE	☐	CRMT_NET_VALUE	WERTV8	CURR	15	2	Net Value
142	TAX_AMOUNT	☐	CRMT_TAX_AMOUNT	WERTV8	CURR	15	2	Tax amount in document currency
143	FREIGHT	☐	CRMT_FREIGHT	WERTV8	CURR	15	2	Shipment costs in document currency
144	SUBTOTAL1	☐	CRMT_SUBTOTAL1	WERTV8	CURR	15	2	Subtotal 1 from pricing procedure for condition
145	SUBTOTAL2	☐	CRMT_SUBTOTAL2	WERTV8	CURR	15	2	Subtotal 2 from pricing procedure for condition
146	SUBTOTAL3	☐	CRMT_SUBTOTAL3	WERTV8	CURR	15	2	Subtotal 3 from pricing procedure for condition
147	SUBTOTAL4	☐	CRMT_SUBTOTAL4	WERTV8	CURR	15	2	Subtotal 4 from pricing procedure for condition
148	SUBTOTAL5	☐	CRMT_SUBTOTAL5	WERTV8	CURR	15	2	Subtotal 5 from pricing procedure for condition
149	SUBTOTAL6	☐	CRMT_SUBTOTAL6	WERTV8	CURR	15	2	Subtotal 6 from pricing procedure for condition
150	CREDIT_INDICATOR	☐	CRMT_CREDIT_INDICATOR	CRMT_CREDIT_INDICATOR	CHAR	1	0	Credit Debit Indicator
151	GROSS_VALUE	☐	CRMT_GROSS_VALUE	WERTV8	CURR	15	2	Gross Order Value in PO Currency
152	.INCLUDE	☐				0	0	DATES Data for BW DataSources
153	REQUESTED_DATE	☐	CRMT_REQUESTED_DATE	CRM_RPRTNG_DATE	DATS	8	0	Order Date
154	CONFIRMED_DATE	☐	CRMT_CONFIRMED_DATE	CRM_RPRTNG_DATE	DATS	8	0	Latest Confirmation Date for Item Schedule Line
155	BEGIN_DATE	☐	CRMT_BEGIN_DATE	CRM_RPRTNG_DATE	DATS	8	0	Contract Start Date
156	ENDING_DATE	☐	CRMT_ENDING_DATE	CRM_RPRTNG_DATE	DATS	8	0	Contract End Date
157	START_OF_BILLING	☐	CRMT_START_OF_BILLING	CRM_RPRTNG_DATE	DATS	8	0	Start Date of Billing Plan
158	VALID_FROM_DATE	☐	CRMT_VALID_FROM_DATE	CRM_RPRTNG_DATE	DATS	8	0	Quotation Valid from Date
159	VALID_TO_DATE	☐	CRMT_VALID_TO_DATE	CRM_RPRTNG_DATE	DATS	8	0	Quotation: Valid to Date
160	BW_POST_DATE	☐	CRMT_BW_POST_DATE	CRM_RPRTNG_DATE	DATS	8	0	Posting Date for BW Reporting
161	PLANNED_TS_FROM	☐	CRMT_PLANNED_TS_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp: Planned Date/Time from
162	PLANNED_TS_TO	☐	CRMT_PLANNED_TS_TO	BCOS_TSTMP	DEC	15	0	Time Stamp: Planned Date/Time to
163	ACTUAL_TS_FROM	☐	CRMT_ACTUAL_TS_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp: Actual Date/Time from
164	ACTUAL_TS_TO	☐	CRMT_ACTUAL_TS_TO	BCOS_TSTMP	DEC	15	0	Time Stamp: Actual Date/Time to
165	PLANNED_FROM	☐	CRMT_PLANNED_FROM	CRM_RPRTNG_DATE	DATS	8	0	Planned Date from
166	PLANNED_TO	☐	CRMT_PLANNED_TO	CRM_RPRTNG_DATE	DATS	8	0	Planned Date to
167	ACTUAL_FROM	☐	CRMT_ACTUAL_FROM	CRM_RPRTNG_DATE	DATS	8	0	Actual Date from
168	ACTUAL_TO	☐	CRMT_ACTUAL_TO	CRM_RPRTNG_DATE	DATS	8	0	Actual Date to
169	EARLIEST_CONFIRM	☐	CRMT_EARLIEST_CONFIRMED	CRM_RPRTNG_DATE	DATS	8	0	Earliest Confirmation Date Still Not Delivered
170	DURA	☐	CRMT_BW_DURATION	TIMEDURA	DEC	13	0	Duration of Contract/Quotation
171	DURA_FULLFILL	☐	CRMT_BW_DURA_FULLFILL	TIMEDURA	DEC	13	0	Duration Until Fulfillment of Contract
172	DURA_UNIT	☐	CRMT_BW_DURA_UNIT	TIMEUNITNA	CHAR	12	0	Time Unit for Duration of Contract/Quotation in Days	*
173	BEGIN_TO_COMPLET	☐	CRMT_BW_BEGIN_TO_COMPLETE	TIMEDURA	DEC	13	0	Duration Start to Conversion or Cancellation of a Quotation
174	COMPLETE_TO_END	☐	CRMT_BW_COMPLETE_TO_END	TIMEDURA	DEC	13	0	Duration Conversion or Cancellation Before End of Quotation
175	REL_TO_BEGIN	☐	CRMT_BW_REL_TO_BEGIN		DEC	7	2	Time Relation: Time to Completion / Validity Interval
176	REL_BEFORE_END	☐	CRMT_BW_REL_BEFORE_END		DEC	5	2	Time Relation: Time Completed Before End / Validity Interval
177	REQ_DLV_DATE	☐	CRMT_REQ_DELIVERY_DATE	BCOS_TSTMP	DEC	15	0	Time Stamp: Last Required Delivery Date
178	LAST_DLV_DATE	☐	CRMT_LAST_DELIVERY_DATE	BCOS_TSTMP	DEC	15	0	Time Stamp: Last Delivery Date
179	LAST_QI_ACT_DATE	☐	CRMT_LAST_QI_ACTUAL_DATE	BCOS_TSTMP	DEC	15	0	Time Stamp: Last Actual Goods Issue Data
180	LAST_REQ_AVA_DAT	☐	CRMT_LAST_REQ_AVAILABLE_DATE	BCOS_TSTMP	DEC	15	0	Time Stamp: Last Material Availability Date (Requested)
181	LAST_CONF_AV_DAT	☐	CRMT_LAST_CONF_AVAILABLE_DATE	BCOS_TSTMP	DEC	15	0	Time Stamp: Last Material Availability Date (Confirmed)
182	LAST_REQ_QI_PLDA	☐	CRMT_LAST_REQ_QI_PLANNED_DATE	BCOS_TSTMP	DEC	15	0	Time Stamp: Last Planned Goods Issue Date (Requested)
183	LAST_CONF_QI_PLD	☐	CRMT_LAST_CONF_QI_PLANNED_DATE	BCOS_TSTMP	DEC	15	0	Time Stamp: Last Planned Goods Issue Date (Confirmed)
184	CONFIRMED_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
185	ACTUAL_FROM_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
186	EARLIEST_CON_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
187	REQUESTED_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
188	VALID_FROM_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
189	VALID_TO_TS	☐	CRMT_DATE_TIMESTAMP_TO	BCOS_TSTMP	DEC	15	0	Time stamp (Date and Time) until a Date/Duration
190	.INCLUDE	☐				0	0	CUMULATED_I Data for BW DataSources
191	CALL_OF_CURR_CUM	☐	CRMT_CALL_OF_CURRENCY_CUM	WAERS	CUKY	5	0	Currency for Value Called	*
192	CALL_OF_QTY_CUM	☐	CRMT_CALL_OF_QTY_CUM	CRM_MENGV15	QUAN	15	3	Quantity Retrieved for a Contract
193	CALL_OF_UNIT_CUM	☐	CRMT_CALL_OF_QTY_UNIT_CUM	MEINS	UNIT	3	0	Quantity Unit Called	*
194	CALL_OF_VAL_CUM	☐	CRMT_CALL_OF_VALUE_CUM	CRM_COND_VALUE	CURR	19	2	Released Value for a Contract
195	COMPL_CURR_CUM	☐	CRMT_COMPLETED_CURRENCY_CUM	WAERS	CUKY	5	0	Currency of Actual Referenced Value	*
196	COMPL_QTY_CUM	☐	CRMT_COMPLETED_QTY_CUM	CRM_MENGV15	QUAN	15	3	Actual Referenced Quantity for a Quotation
197	COMPL_UNIT_CUM	☐	CRMT_COMPLETED_QTY_UNIT_CUM	MEINS	UNIT	3	0	Unit for Actual Referenced Quantity	*
198	COMPL_VALUE_CUM	☐	CRMT_COMPLETED_VALUE_CUM	WERTV8	CURR	15	2	Actual Referenced Value for a Quotation
199	TARGET_QUAN_CUM	☐	CRMT_TARGET_QUAN_CUM	MENG13	QUAN	13	3	Target Quantity Cumulated
200	TGT_QTY_UNIT_CUM	☐	CRMT_TARGET_QTY_UNIT_CUM	MEINS	UNIT	3	0	Unit for a Target Quantity	*
201	DELIVERY_QTY_CUM	☐	CRMT_DELIVERED_QTY_CUM	CRM_MENGV15	QUAN	15	3	Delivered Quantity for an Item
202	INVOICED_QTY_CUM	☐	CRMT_INVOICED_QTY_CUM	CRM_MENGV15	QUAN	15	3	Billed Quantity for an Item
203	O_CALLOF_QTY_CUM	☐	CRMT_O_CALLOF_QTY_CUM	CRM_MENGV15	QUAN	15	3	Open Releasable Quantity for Item
204	O_INV_QTY_CUM	☐	CRMT_OPEN_INV_QTY_CUM	CRM_MENGV15	QUAN	15	3	Open Item Quantity for Billing
205	O_ORDER_QTY_CUM	☐	CRMT_OPEN_ORD_QTY_CUM	CRM_MENGV15	QUAN	15	3	Open Order Quantity for Item
206	DELIVERY_VAL_CUM	☐	CRMT_DELIVERED_VAL_CUM	WERTV8	CURR	15	2	Delivered Value for an Item
207	INVOICED_VAL_CUM	☐	CRMT_INVOICED_VAL_CUM	WERTV8	CURR	15	2	Billed Value of an Item
208	O_CALLOF_VAL_CUM	☐	CRMT_O_CALLOF_VAL_CUM	CRM_COND_VALUE	CURR	19	2	Open Releasable Value for Item
209	O_INV_VAL_CUM	☐	CRMT_OPEN_INV_VAL_CUM	WERTV8	CURR	15	2	Open Item Value for Billing
210	O_ORDER_VAL_CUM	☐	CRMT_OPEN_ORD_VAL_CUM	WERTV8	CURR	15	2	Open Order Value for Item
211	FULLFILL_QTY	☐	CRMT_FULLFILLMENT_TGT		DEC	9	2	Degree of Fulfillment: Target/Quantity
212	FULLFILL_VAL	☐	CRMT_FULLFILLMENT_TGT		DEC	9	2	Degree of Fulfillment: Target/Quantity
213	CUMULAT_UNIT_CUM	☐	CRMT_CUMULAT_QTY_UNIT_CUM	MEINS	UNIT	3	0	Unit of Cumulated Quantity	*
214	CUMULAT_CURR_CUM	☐	CRMT_CUMULAT_CURR_CUM	WAERS	CUKY	5	0	Currency of Cumulated Value	*
215	QUOT_VAL_CUM	☐	CRMT_QUOT_VAL_CUM	WERTV8	CURR	15	2	Quotation Value for an Item
216	QUOT_QTY_CUM	☐	CRMT_QUOT_QTY_CUM	CRM_MENGV15	QUAN	15	3	Quotation Quantity for Item
217	GI_QTY_CUM	☐	CRMT_GOODS_ISSUE_QTY_CUM	CRM_MENGV15	QUAN	15	3	Goods Issue Quantity for an Item
218	GI_QTY_SINGLE	☐	CRMT_GOODS_ISSUE_QTY_CUM	CRM_MENGV15	QUAN	15	3	Goods Issue Quantity for an Item
219	DELIV_QTY_SINGLE	☐	CRMT_DELIVERED_QTY_CUM	CRM_MENGV15	QUAN	15	3	Delivered Quantity for an Item
220	.INCLUDE	☐				0	0	SHIPPING Data for BW DataSources
221	INCOTERMS1	☐	CRMT_INCOTERMS1	CRM_INCOTERMS1	CHAR	3	0	Incoterms (Part 1)	*
222	INCOTERMS2	☐	CRMT_INCOTERMS2	CRM_INCOTERMS2	CHAR	28	0	Incoterms (Part 2)
223	.INCLUDE	☐				0	0	BILLING Data for BW DataSources
224	BILLING_DATE	☐	CRMT_BW_BILL_DATE	CRM_RPRTNG_DATE	DATS	8	0	Billing Date
225	BILLING_BLOCK	☐	CRMT_BUS_BILL_BLOCK_REASON	CRM_BILLING_BLOCK	CHAR	2	0	Business Partner (CRM): Billing Block Reason	*
226	LOC_GUID	☐	CRMT_LOC_GUID	SYSUUID_C	CHAR	32	0	Letter of Credit GUID from SAP Global Trade Services
227	LOC_EXT_NUMBER	☐	CRMT_LOC_EXTERNAL_NUMBER		CHAR	40	0	External Number Letter of Credit
228	BILLING_DATE_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
229	.INCLUDE	☐				0	0	STATUS Data for BW DataSources
230	STATUS_INQUIRY	☐	CRMT_STATUS_INQUIRY	BOOLEAN	CHAR	1	0	Status of Inquiry
231	STATUS_QUOTATION	☐	CRMT_STATUS_QUOTATION	CRM_BOOLEAN	CHAR	1	0	Quotation Status
232	STATUS_ERROR	☐	CRMT_STATUS_ERROR	CRM_BOOLEAN	CHAR	1	0	Indicates Whether Document is Incorrect
233	STATUS_INVOICED	☐	CRMT_STATUS_INVOICED	CRM_BOOLEAN	CHAR	1	0	Billing Status
234	STATUS_ACCEPTED	☐	CRMT_STATUS_ACCEPTED	BOOLEAN	CHAR	1	0	Status Accepted
235	STATUS_COMPLETED	☐	CRMT_STATUS_COMPLETED	BOOLEAN	CHAR	1	0	Status: Completed
236	STATUS_CANCELLED	☐	CRMT_STATUS_CANCELLED	BOOLEAN	CHAR	1	0	Rejection Status
237	STATUS_DOC_SYS	☐	CRM_J_STATUS	CRM_J_STATUS	CHAR	5	0	Object Status
238	STATUS_DELIVERED	☐	CRMT_DELIVERY_STAT	CRMT_BW_DELIVERY_STAT_DOM	CHAR	1	0	Delivery Status (Use for BW Only)
239	STATUS_EXPIRED	☐	CRMT_STATUS_EXPIRED	BOOLEAN	CHAR	1	0	Status End of Validity Period (Quotation)
240	STATUS_INCOMPL	☐	CRMT_STATUS_INCOMPLETE	BOOLEAN	CHAR	1	0	Status: Incompleted
241	.INCLUDE	☐				0	0	SRV_OSSET Data for BW DataSources
242	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
243	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
244	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	*
245	ACT_REASON_CAT	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
246	ACT_REASON_GROUP	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
247	ACT_REASON_CODE	☐	QCODE	QCODE	CHAR	4	0	Code	*
248	EXT_REFOBJ	☐	CRMT_EXT_REFOBJ	CHAR40	CHAR	40	0	External Reference Object
249	.INCLUDE	☐				0	0	Time Characteristics for BW Reporting
250	CALDAY	☐	SMOCALDAY	DATUM	DATS	8	0	Calendar Day
251	CALDAY_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
252	.INCLUDE	☐				0	0	DOC_FLOW Data for BW DataSources
253	PREDEC_OBJKEY	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
254	PREDEC_OBJTYPE	☐	CRMT_PRED_OBJECT_TYPE	OJ_NAME	CHAR	10	0	Object Type of a Preceding Document	*
255	LOGSYS_PRED	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
256	MKT_ELEMENT	☐	CRM_MKTPL_MKT_PLAN_TASKID	CGPL_EXTID	CHAR	24	0	Marketing Plan Element
257	PRED_LEAD_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
258	LEAD_CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
259	PRED_OPPT_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
260	OPPT_CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
261	PRED_ACT_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
262	ACT_CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	*
263	ACT_DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
264	QUOTATION_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
265	QUOT_VALID_FROM	☐	CRMT_VALID_FROM_DATE	CRM_RPRTNG_DATE	DATS	8	0	Quotation Valid from Date
266	PROCESS_CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	*
267	PROCESS_CATALOG	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
268	PROCESS_CODEGR	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
269	PROCESS_CODE	☐	QCODE	QCODE	CHAR	4	0	Code	*
270	PROCESS_OBJTYPE	☐	CRMT_PRED_OBJECT_TYPE	OJ_NAME	CHAR	10	0	Object Type of a Preceding Document	*
271	PO_NUMBER	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
272	PO_ITEM_NUMBER	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
273	LEAD_CREATED_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
274	OPPT_CREATED_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
275	QUOT_VALID_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
276	.INCLUDE	☐				0	0	Schedule line quantities - Daten für BW Datasoures
277	ORDER_QTY	☐	CRMT_QTY_ORDER	MENG13	QUAN	13	3	CRM: Order Quantity
278	CONFIRMED_QTY	☐	CRMT_QTY_CONFIRMED	MENG13	QUAN	13	3	CRM: Confirmed Quantity
279	.INCLUDE	☐				0	0	STATUS GROUPS Data for BW Datasources
280	BWSTONESYS0	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
281	BWSTONESYS1	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
282	BWSTONESYS2	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
283	BWSTONESYS3	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
284	BWSTONESYS4	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
285	BWSTONESYS5	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
286	BWSTONESYS6	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
287	BWSTONESYS7	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
288	BWSTONESYS8	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
289	BWSTONESYS9	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
290	BWSTONESYSA	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
291	BWSTTECSYS0	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
292	BWSTTECSYS1	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
293	BWSTTECSYS2	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
294	BWSTLOCSYS0	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
295	BWSTLOCSYS1	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
296	BWSTLOCSYS2	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
297	BWSTONESYSB	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
298	BWSTONESYSC	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
299	.INCLUDE	☐				0	0	CUMULATED_H Data for BW Data Sources
300	GROSS_VALUE_H	☐	CRMT_GROSS_VALUE_CUM	WERTV8	CURR	15	2	Total Gross Value of Document in Document Currency
301	NET_VALUE_H	☐	CRMT_NET_VALUE_CUM	WERTV8	CURR	15	2	Total Net Value of Document in Document Currency
302	NET_VALUE_MAN_H	☐	CRMT_NET_VALUE_MAN_CUM	WERTV8	CURR	15	2	Expected Total Net Value of Products in Document Currency
303	.INCLUDE	☐				0	0	Territory Data for BW Data Sources (Partner Attribute)
304	PATH_GUID	☐	CRMT_PATH_GUID_32	SYSUUID_C	CHAR	32	0	Path GUID of Territory 32
305	TERR_GUID	☐	CRMT_TERR_GUID_32	SYSUUID_C	CHAR	32	0	Territory GUID 32
306	.INCLUDE	☐				0	0	Hosted Order Management
307	HOM_FLAG	☐	CRMT_HOM_FLAG	CRM_BOOLEAN	CHAR	1	0	Indicator of an order from Hosted Order Management scenario
308	.INCLUDE	☐				0	0	Further Product Data for BW DataSources
309	IOBJECT_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
310	IOBJECT_GUID	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
311	CONFPROD_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
312	CONFPROD_GUID	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
313	PROD_OBJ_FAM	☐	COMT_PRODUCT_OBJECT_FAMILY	COM_PRODUCT_OBJECT_FAMILY	CHAR	4	0	Object Family	*
314	BATCH_ID	☐	CRMT_BATCH_ID	BATCH_ID	CHAR	10	0	Batch Number
315	SAMPLE	☐	CRMT_SAMPLE_INV	CRM_BOOLEAN	CHAR	1	0	Sample Indicator
316	SAMPLE_SPEC	☐	CRMT_SAMPLE_SPEC	CRMBWSAMPLE	CHAR	1	0	Sample
317	SAMPLE_QTY_ALLOW	☐	CRM_ACT_NUMBER_OF_SAMPLES	DEC4	DEC	4	0	Number of samples
318	.INCLUDE	☐				0	0	CUOBJ for BW DataSources
319	CUOBJ	☐	CRMT_INT_OBJ_NO	IB_INSTANCE	NUMC	18	0	Configuration (Internal Object Number)
320	.INCLUDE	☐				0	0	FLAGS Data for BW DataSources
321	FLAG_ALT_ITM	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
322	FLAG_STAT	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
323	.INCLUDE	☐				0	0	Reasons for Rejection External Dynamic Fields
324	RJCTRS	☐	CRMT_RJCTRS	CRM_RJCTRS	CHAR	3	0	Reason for Rejection	*
325	.INCLUDE	☐				0	0	APO Item Data for BW DataSources
326	EXE_LOC_NUMBER	☐	CHAR20	CHAR20	CHAR	20	0	Char 20
327	EXE_LOC_TYPE	☐	CHAR4	CHAR4	CHAR	4	0	Not More Closely Defined Area, Possibly Used for Patchlevels
328	FACING_LOCATION	☐	CHAR20	CHAR20	CHAR	20	0	Char 20
329	FACING_LOCTYPE	☐	CHAR4	CHAR4	CHAR	4	0	Not More Closely Defined Area, Possibly Used for Patchlevels
330	FIRSTS_LOCATION	☐	CHAR20	CHAR20	CHAR	20	0	Char 20
331	FIRSTS_LOC_TYPE	☐	CHAR4	CHAR4	CHAR	4	0	Not More Closely Defined Area, Possibly Used for Patchlevels
332	OVERRIDE_LOC	☐	CHAR20	CHAR20	CHAR	20	0	Char 20
333	.INCLUDE	☐				0	0	PARTNER (APO) Data for BW DataSources
334	EXELOC_BP	☐	CRMT_EXELOC_BP	BU_PARTNER	CHAR	10	0	Business Partner of the Executing Location	*
335	FACLOC_BP	☐	CRMT_FACLOC_BP	BU_PARTNER	CHAR	10	0	Business Partner for Facing Location	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BW_SALES_ORDER_I	OBJECT_TYPE	CRMC_SUBOB_CAT	SUBOBJ_CATEGORY

History

Last changed by/on	SAP	20131122
SAP Release Created in	30A
