SAP ABAP Table CRMT_BSP_SRV_APPT_DET_I (Appointment Schedule)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_BSP_SRV_APPT_DET_I	Table Relationship Diagram
Short Description	Appointment Schedule

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Appointment Schedule
3	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
5	ITEM_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	DISPO_FLG	☐	CRMT_SRV_DISPO_FLG	FLAG	CHAR	1	0	Relevant for Resource Planning
7	DURATION	☐	CRMT_SRV_DURATION	MENG13	QUAN	13	3	Duration
8	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
9	DURATION_UNIT	☐	CRMT_SRV_DURATION_UOM	MEINS	UNIT	3	0	Unit for Duration of Work	T006
10	HR_PLVAR	☐	PLVAR	PLVAR	CHAR	2	0	Plan Version	*
11	HR_OTYPE	☐	OTYPE	OTYPE	CHAR	2	0	Object Type	*
12	HR_OBJID	☐	HROBJID	HROBJID	NUMC	8	0	Object ID	*
13	HR_OTEXT	☐	OTEXT	TEXT25	CHAR	25	0	Object Type Text
14	HR_STEXT	☐	STEXT	TEXT40	CHAR	40	0	Object Name
15	CONFIRM_RELEVANT	☐	CRMT_CONFIRM_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Confirmation
16	SCHED_PARAM1	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
17	SCHED_PARAM2	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
18	SCHED_PARAM3	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
19	SCHED_PARAM1_T	☐	CRM_LRP_APP_PARAM_T	CRM_LRP_APP_PARAM_T	CHAR	15	0	Texts for Appointment Scheduling Parameters
20	SCHED_PARAM2_T	☐	CRM_LRP_APP_PARAM_T	CRM_LRP_APP_PARAM_T	CHAR	15	0	Texts for Appointment Scheduling Parameters
21	SCHED_PARAM3_T	☐	CRM_LRP_APP_PARAM_T	CRM_LRP_APP_PARAM_T	CHAR	15	0	Texts for Appointment Scheduling Parameters
22	PERSONS	☐	CRMT_SRV_PERSONS	NUMC3	NUMC	3	0	Number of Persons
23	.INCLUDE	☐				0	0	Service Process Item - Date Fields (Object IL Dates)
24	APPT_TYPE1	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
25	IS_DURATION1	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
26	APPT_TEXT1	☐	SC_TXT	TEXT40	CHAR	40	0	Description
27	DATE1	☐	CRMT_BSP_SRV_CUST_BEG	DATS	DATS	8	0	Requested Start
28	APPT_TYPE2	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
29	IS_DURATION2	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
30	APPT_TEXT2	☐	SC_TXT	TEXT40	CHAR	40	0	Description
31	DATE2	☐	CRMT_BSP_SRV_CUST_BEG	DATS	DATS	8	0	Requested Start
32	APPT_TYPE3	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
33	IS_DURATION3	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
34	APPT_TEXT3	☐	SC_TXT	TEXT40	CHAR	40	0	Description
35	DATE3	☐	CRMT_BSP_SRV_CUST_END	DATS	DATS	8	0	Requested End
36	APPT_TYPE4	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
37	IS_DURATION4	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
38	APPT_TEXT4	☐	SC_TXT	TEXT40	CHAR	40	0	Description
39	DATE4	☐	CRMT_BSP_SRV_CUST_END	DATS	DATS	8	0	Requested End
40	APPT_TYPE5	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
41	IS_DURATION5	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
42	APPT_TEXT5	☐	SC_TXT	TEXT40	CHAR	40	0	Description
43	DATE5	☐	CRMT_BSP_SRV_CUST_END	DATS	DATS	8	0	Requested End
44	APPT_TYPE6	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
45	IS_DURATION6	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
46	APPT_TEXT6	☐	SC_TXT	TEXT40	CHAR	40	0	Description
47	DATE6	☐	CRMT_BSP_SRV_APPT_BEG	DATS	DATS	8	0	Earliest Appointment Start
48	APPT_TYPE7	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
49	IS_DURATION7	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
50	APPT_TEXT7	☐	SC_TXT	TEXT40	CHAR	40	0	Description
51	DATE7	☐	CRMT_BSP_SRV_APPT_END	DATS	DATS	8	0	Latest Appointment Start
52	APPT_TYPE8	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
53	IS_DURATION8	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
54	APPT_TEXT8	☐	SC_TXT	TEXT40	CHAR	40	0	Description
55	DATE8	☐	CRMT_BSP_SRV_APPT_BEG	DATS	DATS	8	0	Earliest Appointment Start
56	APPT_TYPE9	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
57	IS_DURATION9	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
58	APPT_TEXT9	☐	SC_TXT	TEXT40	CHAR	40	0	Description
59	DATE9	☐	CRMT_BSP_SRV_APPT_END	DATS	DATS	8	0	Latest Appointment Start

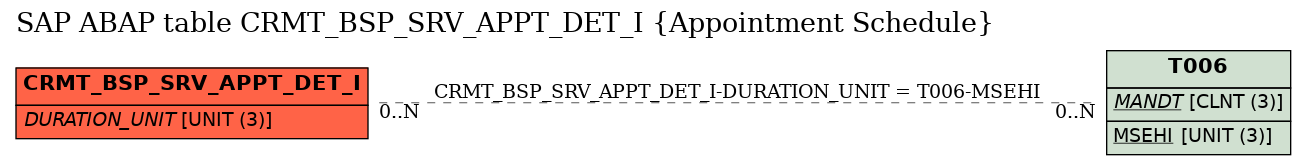

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_SRV_APPT_DET_I	DURATION_UNIT	T006	MSEHI

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
