SAP ABAP Table CRMT_BSP_S1O_PRIM_COUNTER (Counter and Measurement Reading (Header) BSP UI Service)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure

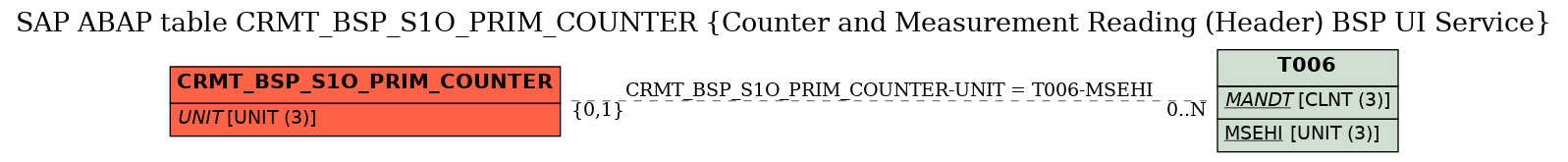

Structure	CRMT_BSP_S1O_PRIM_COUNTER	Table Relationship Diagram
Short Description	Counter and Measurement Reading (Header) BSP UI Service

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Reading Item Link Work Structure
3	.INCLUDE	☐				0	0	Reading Header link structure
4	.INCLUDE	☐				0	0	Reading Item Link Table
5	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
6	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
7	MP_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
8	READ_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
9	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
10	.INCLUDE	☐				0	0	Fields for communication to create/change/display Rd
11	.INCLUDE	☐				0	0	Workstructure of Readings
12	GUID	☐	CRMT_MPK_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a Kernel Object
13	.INCLUDE	☐				0	0	Fields shared between Work and DB structures of Readings
14	.INCLUDE	☐				0	0	Time and User Information
15	CREATED_AT	☐	CRMT_MPK_CREATED_AT	BCOS_TSTMP	DEC	15	0	Transaction was Created at this Time
16	CREATED_BY	☐	CRMT_MPK_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
17	CHANGED_AT	☐	CRMT_MPK_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
18	CHANGED_BY	☐	CRMT_MPK_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
19	OBJECT_ID	☐	CRMT_MPK_OBJECT_ID_READING	CRM_MPK_OBJECT_ID_READING	CHAR	20	0	Reading Number
20	LOGSYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*
21	ERROR_FLAG	☐	CRMT_MPK_ERROR	CRM_MPK_BOOLEAN	CHAR	1	0	Reading Error
22	CANCEL	☐	CRMT_MPK_CANCEL	CRM_MPK_BOOLEAN	CHAR	1	0	Cancel Reading
23	DELETE_FLAG	☐	CRMT_MPK_DELETE	CRM_MPK_BOOLEAN	CHAR	1	0	Deletion Flag for One-stage Deletion
24	DESCRIPTION	☐	CRMT_MPK_DESCR	CRM_MPK_DESCR	CHAR	40	0	Counter Description
25	TEXT_EXISTS	☐	CRMT_MPK_TEXT_EXISTS	CRM_MPK_BOOLEAN	CHAR	1	0	Long Text Exists for this Object
26	UNIT	☐	CRMT_MPK_UNIT_ENTER	MEINS	UNIT	3	0	Unit for Counter Reading	T006
27	READER	☐	CRMT_MPK_READER	BU_PARTNER	CHAR	10	0	Person who took the reading	*
28	SOURCE	☐	CRMT_MPK_SOURCE	CRM_MPK_SOURCE	CHAR	1	0	Reading Origin
29	INPUT_MODE	☐	CRMT_MPK_INPUT_MODE	CRM_MPK_INPUT_MODE	CHAR	1	0	Input Mode for Readings
30	TIMESTAMP_FROM	☐	CRMT_MPK_TIMESTAMP_FROM	TZNTSTMPS	DEC	15	0	Valid from timestamp
31	TIMEZONE_FROM	☐	CRMT_MPK_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone from	*
32	TIMESTAMP_TO	☐	CRMT_MPK_TIMESTAMP_TO	TZNTSTMPS	DEC	15	0	Valid to timestamp
33	TIMEZONE_TO	☐	CRMT_MPK_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone to	*
34	.INCLUDE	☐				0	0	Value Fields of Readings in work format
35	VALUE	☐	CRMT_MPK_VALUE_VISIBLE_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Visible Counter Value
36	VALUE_DELTA	☐	CRMT_MPK_VALUE_DIFF_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Difference Value from Previous Counter Reading
37	OVERALL	☐	CRMT_MPK_VALUE_OVERALL_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Overall Counter Value
38	MP_OBJECT_ID	☐	CRMT_MPK_OBJECT_ID_MPOINT	CRM_MPK_OBJECT_ID_MPOINT	CHAR	20	0	Counter Identifier
39	RFC_MODE	☐	CRMT_MPK_RFC_MODE	CRM_MPK_RFC_MODE	CHAR	1	0	RFC - Mode
40	DATE_FROM	☐	CRMT_MPK_DATE_FROM	DATUM	DATS	8	0	Reading Valid from Date
41	TIME_FROM	☐	CRMT_MPK_TIME_FROM	UZEIT	TIMS	6	0	Reading Valid from Time
42	DATE_TO	☐	CRMT_MPK_DATE_TO	DATUM	DATS	8	0	Reading Valid to Date
43	TIME_TO	☐	CRMT_MPK_TIME_TO	UZEIT	TIMS	6	0	Reading Valid to Time
44	NEW_VALUE	☐	CRMT_MPK_VALUE_VISIBLE_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Visible Counter Value
45	NEWVALUE_DELTA	☐	CRMT_MPK_VALUE_DIFF_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Difference Value from Previous Counter Reading
46	.INCLUDE	☐				0	0
47	PRIM_COUNTER_DESC	☐	CRMT_MPK_DESCR	CRM_MPK_DESCR	CHAR	40	0	Counter Description
48	PRIM_COUNTER_EXISTS	☐	XFELD	XFELD	CHAR	1	0	Checkbox

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_S1O_PRIM_COUNTER	UNIT	T006	MSEHI	REF	C	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	500
