SAP ABAP Table CRMT_BSP_OPP_ITEM_LIST_IL (Item list for an Opportunity)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_BSP_OPP_ITEM_LIST_IL	Table Relationship Diagram
Short Description	Item list for an Opportunity

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Management of Interface Structures
2	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
4	NUMBER_INT	☐	CRMT_BSP_ITEM_NO	CRM_BSP_ITEM_NO	NUMC	10	0	Item Number in Document
5	PROD_HIERARCHY	☐	CRMT_PROD_HIERARCHY	COM_CATEGORY_ID	CHAR	20	0	Product Category
6	APPLICATION	☐	COMT_APPLICATION	COM_APPLICATION	CHAR	20	0	Application to Which the Category Hierarchy Is Assigned	*
7	PROD_HIER_DESCR	☐	COMT_CATEGORY_TEXT	TEXT80	CHAR	80	0	Category Description
8	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
9	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
10	ITM_TYPE	☐	CRMT_ITEM_TYPE	CRM_ITEM_TYPE	CHAR	4	0	Item Category	CRMC_ITEM_TYPE
11	QUANTITY	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
12	QTY_UNIT	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	T006
13	NET_VALUE_MAN	☐	CRMT_NET_VALUE_MAN	WERTV8	CURR	15	2	Total Expected Net Value Products in Document Currency
14	NET_VALUE	☐	CRMT_NET_VALUE	WERTV8	CURR	15	2	Net Value
15	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	TCURC
16	CURR_NET_VALUE	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	TCURC
17	NUMBER_PARENT	☐	CRMT_BSP_ITEM_NO_PARENT	CRM_BSP_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Document
18	NUMBER_ALTERN	☐	CRMT_BSP_ITEM_NO_ALTERNATIVE	CRM_BSP_ITEM_NO	NUMC	10	0	Item for Which This Item is an Alternative in the Document
19	SCHED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
20	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
21	PRODUCT	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
22	CRM_OBJECT_TYPE	☐	CRMT_PRT_OTYPE	CRMT_PRT_OTYPE	CHAR	20	0	Object Type for Navigation	*
23	.INCLUDE	☐				0	0
24	.INCLUDE	☐				0	0

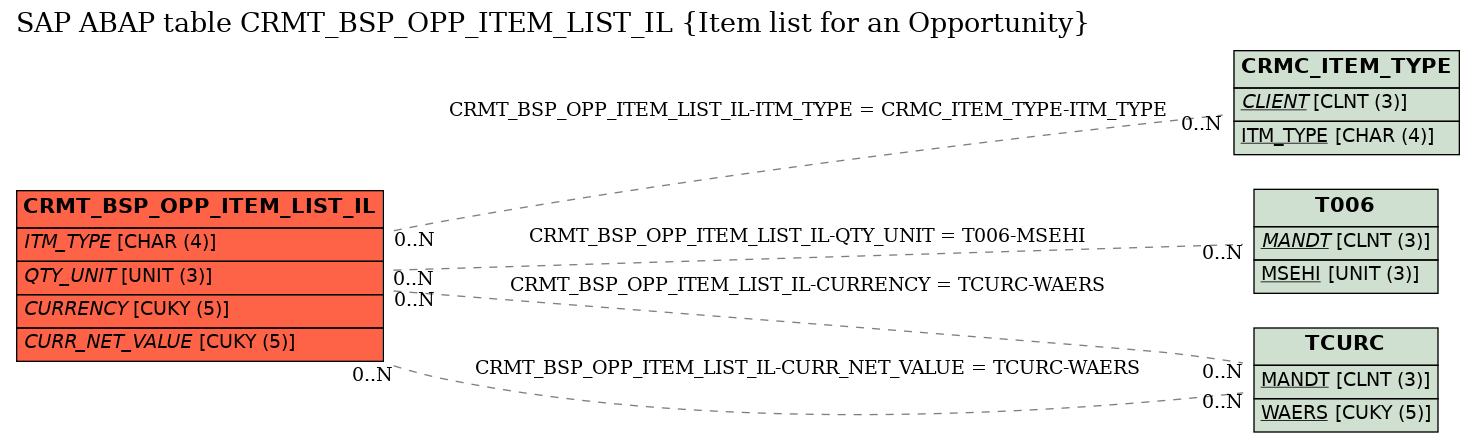

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_OPP_ITEM_LIST_IL	CURRENCY	TCURC	WAERS
2	CRMT_BSP_OPP_ITEM_LIST_IL	CURR_NET_VALUE	TCURC	WAERS
3	CRMT_BSP_OPP_ITEM_LIST_IL	ITM_TYPE	CRMC_ITEM_TYPE	ITM_TYPE
4	CRMT_BSP_OPP_ITEM_LIST_IL	QTY_UNIT	T006	MSEHI

History

Last changed by/on	SAP	20130604
SAP Release Created in	310
