SAP ABAP Table CRMT_BSP_ERMS_WB_ATTACHMENT (E-Mail attachment)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IC-EMS (Application Component) E-Mail Response Management System
     ⤷ CRM_ERMS_WORKBENCH (Package) ERMS Workbench

Basic Data

Table Category	INTTAB	Structure

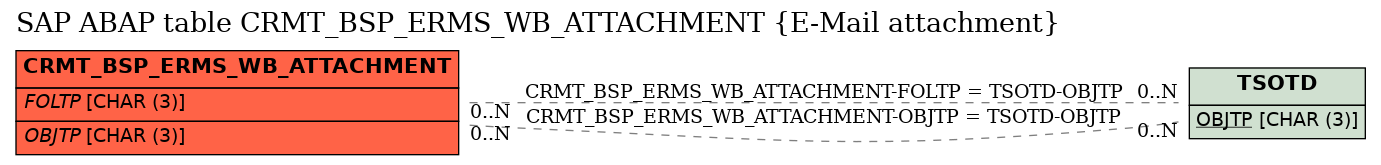

Structure	CRMT_BSP_ERMS_WB_ATTACHMENT	Table Relationship Diagram
Short Description	E-Mail attachment

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_ERMS_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	SAPoffice: Interface for attachment list
3	FOLTP	☐	SO_FOL_TP	SO_OBJ_TP	CHAR	3	0	Object folder: Object type from ID	TSOTD
4	FOLYR	☐	SO_FOL_YR	SO_OBJ_YR	CHAR	2	0	Object folder: Year from ID
5	FOLNO	☐	SO_FOL_NO	SO_OBJ_NO	CHAR	12	0	Object folder: Number from ID	*
6	OBJTP	☐	SO_OBJ_TP	SO_OBJ_TP	CHAR	3	0	Code for document class	TSOTD
7	OBJYR	☐	SO_OBJ_YR	SO_OBJ_YR	CHAR	2	0	Object: Year from ID
8	OBJNO	☐	SO_OBJ_NO	SO_OBJ_NO	CHAR	12	0	Object: Number from ID	*
9	FORNAM	☐	SO_FOR_NAM	USERNAME	CHAR	12	0	Name of forwarder
10	OBJNAM	☐	SO_OBJ_NAM	SO_OBJ_NAM	CHAR	12	0	Name of document, folder or distribution list
11	OBJDES	☐	SO_OBJ_DES	SO_OBJ_DES	CHAR	50	0	Short description of contents
12	FOLRG	☐	SO_FOL_RG	SO_FOL_RG	CHAR	1	0	Folder: Area (private, shared folders)
13	FILE_EXT	☐	SO_FILEEXT	CHAR3	CHAR	3	0	File extension for PC application
14	OBJLEN	☐	SO_OBJ_LEN	SO_OBJ_LEN	CHAR	12	0	Size of Document Content
15	CREATOR	☐	SO_CREATOR	SO_TEXT004	CHAR	4	0	Creator for MacIntosh-based files
16	OBJCP	☐	SO_OBJ_CP	SO_FLAG	CHAR	1	0	Document cannot be changed
17	FIXED	☐	SO_FIXED	SO_FLAG	CHAR	1	0	Check-in/check-out flag
18	OBJSND	☐	SO_OBJ_SND	SO_FLAG	CHAR	1	0	Object has already been sent
19	OWNTP	☐	SO_OWN_TP	SO_OBJ_TP	CHAR	3	0	Owner type from ID	*
20	OWNYR	☐	SO_OWN_YR	SO_OBJ_YR	CHAR	2	0	Owner year from the ID
21	OWNNO	☐	SO_OWN_NO	SO_OBJ_NO	CHAR	12	0	Owner number from the ID	*
22	EXTCT	☐	SO_EXTCT	SO_FLAG	CHAR	1	0	Object contents are stored externally
23	CRDAT	☐	SO_DAT_CR	DATUM	DATS	8	0	Date created
24	CRTIM	☐	SO_TIM_CR	UZEIT	TIMS	6	0	Time created
25	CHDAT	☐	SO_DAT_CH	DATUM	DATS	8	0	Date of Last Change
26	CHTIM	☐	SO_TIM_CH	UZEIT	TIMS	6	0	Time of Last Change
27	OBJECT_URL	☐	CRMT_ERMS_URL	CRMT_ERMS_STRING	STRG	0	0	URL
28	FILE_NAME	☐	CRMT_ERMS_FILE_NAME	CRMT_ERMS_STRING	STRG	0	0	File Name

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_ERMS_WB_ATTACHMENT	FOLTP	TSOTD	OBJTP
2	CRMT_BSP_ERMS_WB_ATTACHMENT	OBJTP	TSOTD	OBJTP

History

Last changed by/on	SAP	20070401
SAP Release Created in	500
