SAP ABAP Table CRMT_BSP_CPL_ITEMTREE_CONFIRM (Confirmation: Structure for Tab Page Item Tree)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure

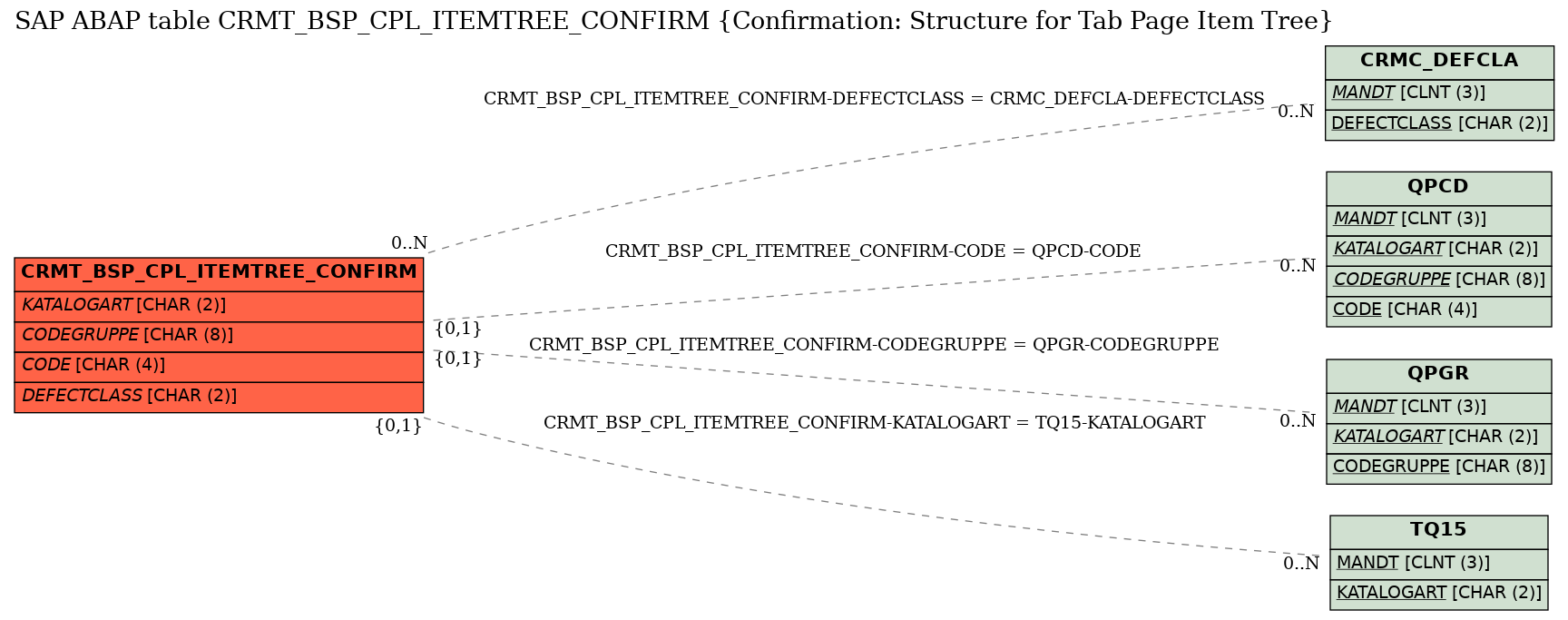

Structure	CRMT_BSP_CPL_ITEMTREE_CONFIRM	Table Relationship Diagram
Short Description	Confirmation: Structure for Tab Page Item Tree

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Service Process - Service Item Hierarchy
3	.INCLUDE	☐				0	0	Management of Interface Structures
4	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
6	HEADER_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
7	HEADER_OBJECT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
8	SCHED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
9	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
10	OBJECT_TYPE	☐	CRMT_SWO_OBJTYP_PROCESS_ITEM	CRM_OJ_NAME_PROCESS_ITEM	CHAR	10	0	CRM Item Object Type	*
11	NUMBER_INT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
12	NUMBER_PARENT	☐	CRMT_ITEM_NO_PARENT	CRM_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Transaction
13	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
14	ITM_TYPE	☐	CRMT_ITEM_TYPE_SRV_PROD	CRM_ITEM_TYPE	CHAR	4	0	Item Category for Service Product	*
15	QUANTITY	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
16	QUANTITY_CUM	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
17	QUANTITY_CONFIRMED	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
18	QTY_UNIT	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
19	DURATION	☐	CRMT_SRV_DURATION	MENG13	QUAN	13	3	Duration
20	DURATION_CUM	☐	CRMT_SRV_DURATION	MENG13	QUAN	13	3	Duration
21	DURATION_CONFIRMED	☐	CRMT_SRV_DURATION	MENG13	QUAN	13	3	Duration
22	DURATION_UNIT	☐	CRMT_SRV_DURATION_UOM	MEINS	UNIT	3	0	Unit for Duration of Work	*
23	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
24	ORDER_QTY	☐	CRMT_QTY_ORDER	MENG13	QUAN	13	3	CRM: Order Quantity
25	CONFIRMED_QTY	☐	CRMT_QTY_CONFIRMED	MENG13	QUAN	13	3	CRM: Confirmed Quantity
26	OBJ_ID_NUMBER	☐	CRMT_OBJ_ID_NUMBER	CRMT_OBJ_ID_NUMBER	CHAR	21	0	Combination of Object ID and Item Number
27	STATUS	☐	CRM_J_STATUS	CRM_J_STATUS	CHAR	5	0	Object Status
28	STATUS_ICON	☐	ICON_D	ICON	CHAR	4	0	Icon in text fields (substitute display, alias)	*
29	.INCLUDE	☐				0	0	Service:General output field for subject
30	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
31	GUID_HIERARCHY	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
32	SUBJECT_PROFILE	☐	CRMT_SUBJECT_PROFILE	CRM_SUBJECT_PROFILE	CHAR	9	0	Subject Profile	*
33	PROFILE_TYPE	☐	CRMT_SUBJECT_PROFILE_TYPE	CRM_SUBJECT_PROFILE_TYPE	CHAR	2	0	Subject Profile Category
34	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	TQ15
35	KATALOGTXT	☐	QTXTCATALG	QKURZTEXT	CHAR	40	0	Short Text for the Catalog
36	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
37	GROUPTEXT	☐	QKTEXTCD	QKURZTEXT	CHAR	40	0	Code Group Short Text
38	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
39	DEFECTCLASS	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	CRMC_DEFCLA
40	QUALITY	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
41	DEFQUANTITY	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
42	LISTCODE	☐	CRMT_SRV_SERVICE_CODE_LIST	CHAR14	CHAR	14	0	Code
43	CODETEXT	☐	QTXT_CODE	QKURZTEXT	CHAR	40	0	Short Text for Code
44	SORT	☐	CRMT_SORT	CRM_SORT	INT2	5	0	Sort Field
45	CATALOG_TYPE	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
46	CODEPROFILE	☐	CRMT_CODEGROUPS	CRM_CODEGROUPS	CHAR	9	0	Code Group Profile for Catalog
47	HIERARCHY_LEVEL	☐	CRMT_SUBJECT_PROFILE_LEVEL	CRM_SUBJECT_PROFILE_LEVEL	INT1	3	0	Hierarchy Level in Subject Profile
48	PARENT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
49	ICON	☐			STRG	0	0
50	ICON_EXPANDED	☐			STRG	0	0
51	IS_EXPANDED	☐	XFELD	XFELD	CHAR	1	0	Checkbox
52	IS_LEAF	☐	XFELD	XFELD	CHAR	1	0	Checkbox
53	IS_HOTSPOT	☐	XFELD	XFELD	CHAR	1	0	Checkbox
54	TOOLTIP	☐			STRG	0	0
55	DOCUMENT_ITEM	☐	CRMT_BSP_DOCUMENT_ITEM		CHAR	21	0	Concatenation of Document Number and Item Number

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_CPL_ITEMTREE_CONFIRM	CODE	QPCD	CODE	REF	C	CN
2	CRMT_BSP_CPL_ITEMTREE_CONFIRM	CODEGRUPPE	QPGR	CODEGRUPPE	REF	C	CN
3	CRMT_BSP_CPL_ITEMTREE_CONFIRM	DEFECTCLASS	CRMC_DEFCLA	DEFECTCLASS
4	CRMT_BSP_CPL_ITEMTREE_CONFIRM	KATALOGART	TQ15	KATALOGART	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
