SAP ABAP Table CRMT_BSP_CPL_IT_TREE_SUBJECT (PC UI Service: Technical Analysis in Hierarchy Tree)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_BSP_CPL_IT_TREE_SUBJECT	Table Relationship Diagram
Short Description	PC UI Service: Technical Analysis in Hierarchy Tree

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Include Structure: Display Tables in Tree Table View
3	PARENT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
4	ICON	☐			STRG	0	0
5	ICON_EXPANDED	☐			STRG	0	0
6	IS_EXPANDED	☐	XFELD	XFELD	CHAR	1	0	Checkbox
7	IS_LEAF	☐	XFELD	XFELD	CHAR	1	0	Checkbox
8	IS_HOTSPOT	☐	XFELD	XFELD	CHAR	1	0	Checkbox
9	TOOLTIP	☐			STRG	0	0
10	DESCRIPTION	☐			STRG	0	0
11	.INCLUDE	☐				0	0	Service:General output field for subject
12	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
13	GUID_HIERARCHY	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
14	SUBJECT_PROFILE	☐	CRMT_SUBJECT_PROFILE	CRM_SUBJECT_PROFILE	CHAR	9	0	Subject Profile	*
15	PROFILE_TYPE	☐	CRMT_SUBJECT_PROFILE_TYPE	CRM_SUBJECT_PROFILE_TYPE	CHAR	2	0	Subject Profile Category
16	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	TQ15
17	KATALOGTXT	☐	QTXTCATALG	QKURZTEXT	CHAR	40	0	Short Text for the Catalog
18	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
19	GROUPTEXT	☐	QKTEXTCD	QKURZTEXT	CHAR	40	0	Code Group Short Text
20	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
21	DEFECTCLASS	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	CRMC_DEFCLA
22	QUALITY	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
23	DEFQUANTITY	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
24	LISTCODE	☐	CRMT_SRV_SERVICE_CODE_LIST	CHAR14	CHAR	14	0	Code
25	CODETEXT	☐	QTXT_CODE	QKURZTEXT	CHAR	40	0	Short Text for Code
26	SORT	☐	CRMT_SORT	CRM_SORT	INT2	5	0	Sort Field
27	CATALOG_TYPE	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
28	CODEPROFILE	☐	CRMT_CODEGROUPS	CRM_CODEGROUPS	CHAR	9	0	Code Group Profile for Catalog
29	HIERARCHY_LEVEL	☐	CRMT_SUBJECT_PROFILE_LEVEL	CRM_SUBJECT_PROFILE_LEVEL	INT1	3	0	Hierarchy Level in Subject Profile

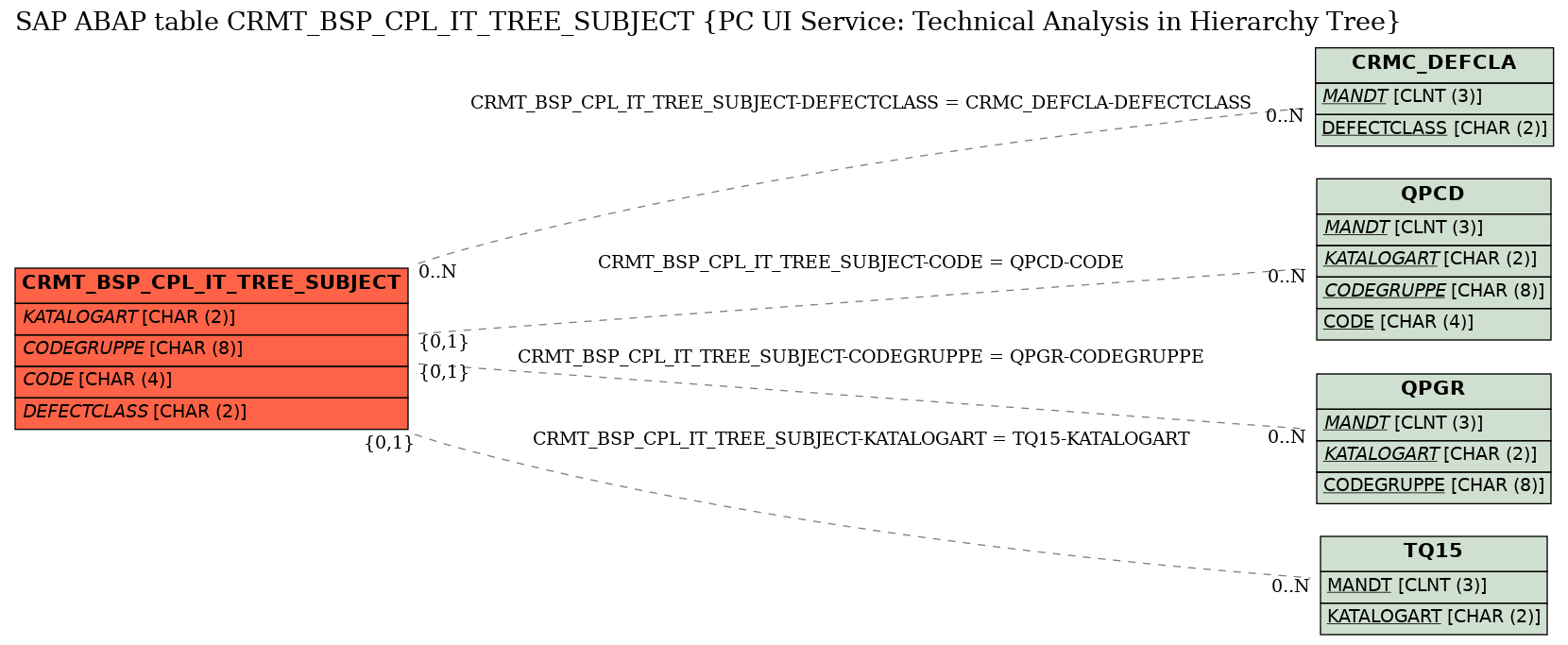

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_CPL_IT_TREE_SUBJECT	CODE	QPCD	CODE	REF	C	CN
2	CRMT_BSP_CPL_IT_TREE_SUBJECT	CODEGRUPPE	QPGR	CODEGRUPPE	REF	C	CN
3	CRMT_BSP_CPL_IT_TREE_SUBJECT	DEFECTCLASS	CRMC_DEFCLA	DEFECTCLASS
4	CRMT_BSP_CPL_IT_TREE_SUBJECT	KATALOGART	TQ15	KATALOGART	REF	C	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	400
