SAP ABAP Table CRMT_BSP_CONTACT_OBJ_BP (BSP: CONTACT Structure (with Standard Address))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-BP-PCU (Application Component) People-Centric UI (Business Partner)
     ⤷ CRM_BSP_MODEL_IL_BP (Package) Model Implementation: Business Partner

Basic Data

Table Category	INTTAB	Structure

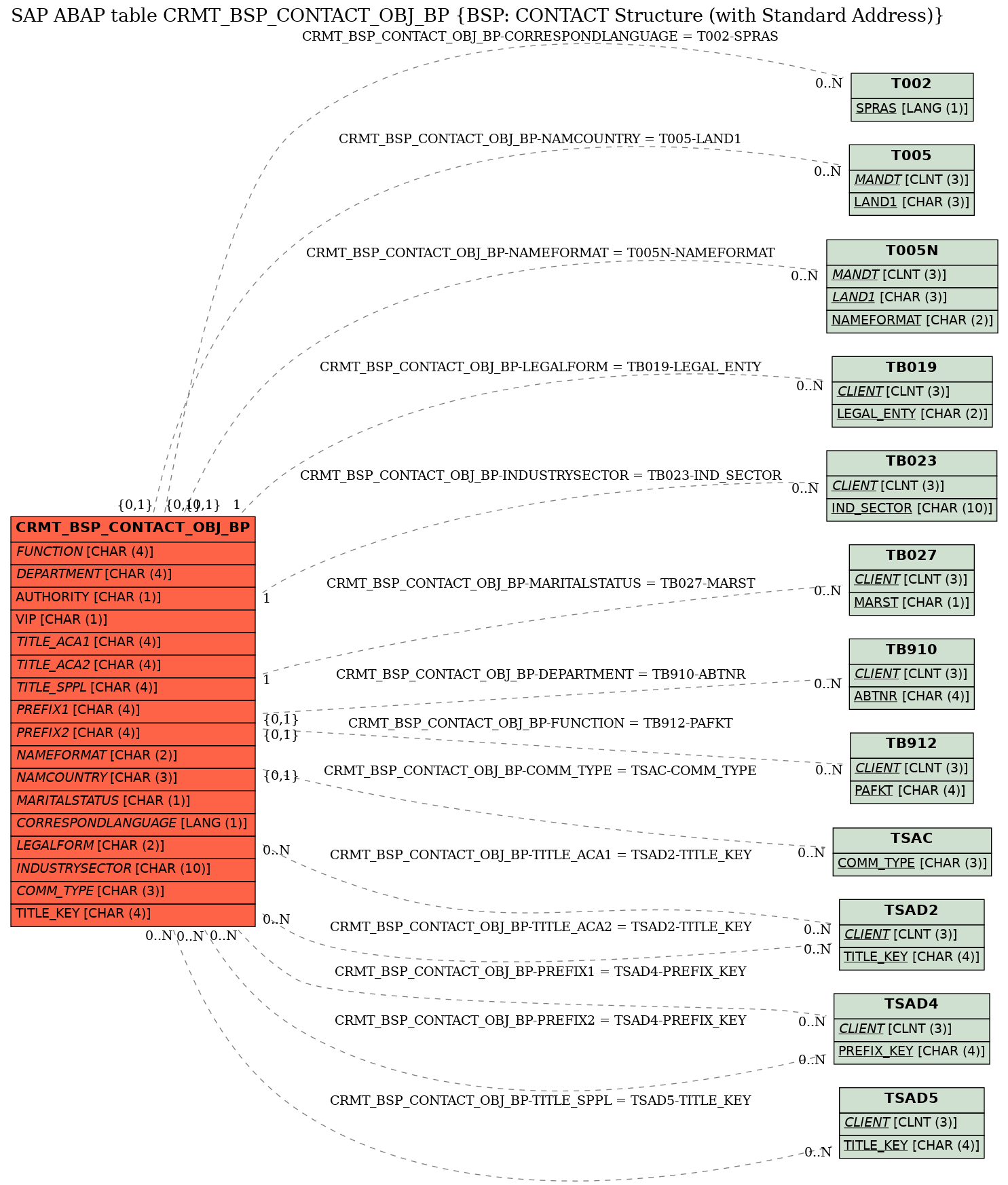

Structure	CRMT_BSP_CONTACT_OBJ_BP	Table Relationship Diagram
Short Description	BSP: CONTACT Structure (with Standard Address)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	BSP: CONTACT Structure (with Standard Address)
2	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
3	BP_NUMBER	☐	COMT_BSP_BU_PARTNER	BU_PARTNER	CHAR	10	0	Business Partner Number	*
4	CONP_NUMBER	☐	COMT_CONTACT	BU_PARTNER	CHAR	10	0	Contact Person ID	*
5	VALIDFROMDATE	☐	BU_DATFROM	DATUM	DATS	8	0	Validity Date (Valid From)
6	VALIDTODATE	☐	BU_DATTO	DATUM	DATS	8	0	Validity Date (Valid To)
7	FUNCTIONNAME	☐	COMT_BSP_BP_FUNC_DESC	TEXT40	CHAR	40	0	Function Description
8	FUNCTION	☐	BU_PAFKT	BU_PAFKT	CHAR	4	0	Function of partner	TB912
9	DEPARTMENTNAME	☐	COMT_BSP_BP_DEPT_DESC	TEXT40	CHAR	40	0	Department Description
10	DEPARTMENT	☐	BU_ABTNR	BU_ABTNR	CHAR	4	0	Department	TB910
11	AUTHORITY	☐	BU_PAAUTH	BU_PAAUTH	CHAR	1	0	Partner's Authority	*
12	VIP	☐	BU_PAVIP	BU_PAVIP	CHAR	1	0	VIP Partner	*
13	COMMENTS	☐	BU_PAREM	TEXT40	CHAR	40	0	Notes for Partner
14	TEL1_NUMBR	☐	AD_TLNMBR1	CHAR30	CHAR	30	0	First telephone no.: dialling code+number
15	TEL1_EXT	☐	AD_TLXTNS1	CHAR10	CHAR	10	0	First Telephone No.: Extension
16	FAX_NUMBER	☐	AD_FXNMBR1	CHAR30	CHAR	30	0	First fax no.: dialling code+number
17	FAX_EXTENS	☐	AD_FXXTNS1	CHAR10	CHAR	10	0	First fax no.: extension
18	E_MAIL	☐	AD_SMTPADR	AD_SMTPADR	CHAR	241	0	E-Mail Address
19	.INCLUDE	☐				0	0	SAP BP: BAPI Structure for Personal Data
20	FIRSTNAME	☐	BU_NAMEP_F	BU_NAME	CHAR	40	0	First name of business partner (person)
21	LASTNAME	☐	BU_NAMEP_L	BU_NAME	CHAR	40	0	Last name of business partner (person)
22	BIRTHNAME	☐	BU_BIRTHNM	BU_NAME	CHAR	40	0	Name at birth of business partner
23	MIDDLENAME	☐	BU_NAMEMID	BU_NAME	CHAR	40	0	Middle name or second forename of a person
24	SECONDNAME	☐	BU_NAMEPL2	BU_NAME	CHAR	40	0	Other Last Name of a Person
25	TITLE_ACA1	☐	AD_TITLE1	AD_TITLE1	CHAR	4	0	Academic Title: Key	TSAD2
26	TITLE_ACA2	☐	AD_TITLE2	AD_TITLE1	CHAR	4	0	Second academic title (key)	TSAD2
27	TITLE_SPPL	☐	AD_TITLES	AD_TITLES	CHAR	4	0	Name supplement, e.g. noble title (key)	TSAD5
28	PREFIX1	☐	AD_PREFIX	AD_PREFIX	CHAR	4	0	Name Prefix (Key)	TSAD4
29	PREFIX2	☐	AD_PREFIX2	AD_PREFIX	CHAR	4	0	2nd name prefix (key)	TSAD4
30	NICKNAME	☐	BU_NICKNAM	BU_NAME	CHAR	40	0	Nickname of Business Partner (Person)
31	INITIALS	☐	AD_INITS	CHAR10	CHAR	10	0	"Middle Initial" or personal initials
32	NAMEFORMAT	☐	AD_FORMAT	AD_NAMFORM	CHAR	2	0	Name format	T005N
33	NAMCOUNTRY	☐	AD_NAMCTRY	LAND1	CHAR	3	0	Country for name format rule	T005
34	NAMCOUNTRYISO	☐	INTCA	INTCA	CHAR	2	0	Country ISO code
35	SEX	☐	BU_SEXID	BU_SEXID	CHAR	1	0	Sex of business partner (person)
36	BIRTHPLACE	☐	BU_BIRTHPL	TEXT40	CHAR	40	0	Birthplace of business partner
37	BIRTHDATE	☐	BU_BIRTHDT	DATUM	DATS	8	0	Date of Birth of Business Partner
38	DEATHDATE	☐	BU_DEATHDT	DATUM	DATS	8	0	Date of death of business partner
39	MARITALSTATUS	☐	BU_MARST	BU_MARST	CHAR	1	0	Marital Status of Business Partner	TB027
40	CORRESPONDLANGUAGE	☐	BU_LANGU_CORR	SPRAS	LANG	1	0	Business Partner: Correspondence Language	T002
41	CORRESPONDLANGUAGEISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
42	FULLNAME	☐	BU_NAME1TX	TEXT80	CHAR	80	0	Full Name
43	EMPLOYER	☐	BU_EMPLO	BU_EMPLO	CHAR	35	0	Name of Employer of a Natural Person
44	OCCUPATION	☐	BU_JOBGR	BU_JOBGR	CHAR	4	0	Occupation/group	*
45	NATIONALITY	☐	BU_NATIO	LAND1	CHAR	3	0	Nationality	*
46	NATIONALITYISO	☐	INTCA	INTCA	CHAR	2	0	Country ISO code
47	COUNTRYORIGIN	☐	BU_CNDSC	LAND1	CHAR	3	0	Ctry of Origin: Non-Res. Companies	*
48	.INCLUDE	☐				0	0	SAP BP: BAPI Structure for Organization Data
49	NAME1	☐	BU_NAMEOR1	BU_NAME	CHAR	40	0	Name 1 of organization
50	NAME2	☐	BU_NAMEOR2	BU_NAME	CHAR	40	0	Name 2 of organization
51	NAME3	☐	BU_NAMEOR3	BU_NAME	CHAR	40	0	Name 3 of organization
52	NAME4	☐	BU_NAMEOR4	BU_NAME	CHAR	40	0	Name 4 of organization
53	LEGALFORM	☐	BU_LEGENTY	BU_LEGENTY	CHAR	2	0	BP: Legal form of organization	TB019
54	INDUSTRYSECTOR	☐	BU_INDSECT	BU_INDSECT	CHAR	10	0	Industry sector	TB023
55	FOUNDATIONDATE	☐	BU_FOUND_DAT	DATUM	DATS	8	0	Date organization founded
56	LIQUIDATIONDATE	☐	BU_LIQUID_DAT		DATS	8	0	Liquidation date of organization
57	LOC_NO_1	☐	BBBNR	NUM07	NUMC	7	0	International location number (part 1)
58	LOC_NO_2	☐	BBSNR	NUM05	NUMC	5	0	International location number (Part 2)
59	CHK_DIGIT	☐	BUBKZ	NUM01	NUMC	1	0	Check digit for the international location number
60	LEGALORG	☐	BU_LEGAL_ORG	BU_LEGAL_ORG	CHAR	2	0	Legal Entity of Organization	*
61	DEFAULTRELATIONSHIP	☐	BU_XDFREL	XFELD	CHAR	1	0	Standard Relationship
62	BUILDING_P	☐	AD_BLDNG_P	TEXT10	CHAR	10	0	Building (number or code)
63	FLOOR	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
64	ROOM_NO	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
65	INITS_SIG	☐	AD_ID_CODE	TEXT10	CHAR	10	0	Short name for correspondence
66	INHOUSE_ML	☐	AD_IH_MAIL	TEXT10	CHAR	10	0	Int. mail postal code
67	COMM_TYPE	☐	AD_COMM	AD_COMM	CHAR	3	0	Communication Method (Key) (Business Address Services)	TSAC
68	AD_DEPARTMENT	☐	COMT_BSP_BP_DEPT_DESC	TEXT40	CHAR	40	0	Department Description
69	AD_FUNCTION	☐	COMT_BSP_BP_FUNC_DESC	TEXT40	CHAR	40	0	Function Description
70	TITLE_KEY	☐	AD_TITLE	AD_TITLE	CHAR	4	0	Form-of-Address Key	*
71	TEL2_NUMBR	☐	COMT_BSP_BP_TEL2_NUMBR	CHAR30	CHAR	30	0	Second Telephone Number: Code + Extension
72	TEL2_EXT	☐	AD_TLXTNS1	CHAR10	CHAR	10	0	First Telephone No.: Extension
73	PARTNER2_ADDR	☐	COMT_BSP_ADDR_GUID	TEXT60	CHAR	60	0	Address (GUID/Description)
74	MOB_NUMBER	☐	AD_MBNMBR1	CHAR30	CHAR	30	0	First Mobile Telephone No.: Dialing Code + Number
75	CRM_NAVI_METHOD	☐	CRMT_PRT_MTD	CRMT_PRT_MTD	CHAR	20	0	Method for Navigation	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_CONTACT_OBJ_BP	COMM_TYPE	TSAC	COMM_TYPE		C	CN
2	CRMT_BSP_CONTACT_OBJ_BP	CORRESPONDLANGUAGE	T002	SPRAS	REF	C	CN
3	CRMT_BSP_CONTACT_OBJ_BP	DEPARTMENT	TB910	ABTNR		C	CN
4	CRMT_BSP_CONTACT_OBJ_BP	FUNCTION	TB912	PAFKT		C	CN
5	CRMT_BSP_CONTACT_OBJ_BP	INDUSTRYSECTOR	TB023	IND_SECTOR	REF	1	CN
6	CRMT_BSP_CONTACT_OBJ_BP	LEGALFORM	TB019	LEGAL_ENTY	KEY	1	CN
7	CRMT_BSP_CONTACT_OBJ_BP	MARITALSTATUS	TB027	MARST		1	CN
8	CRMT_BSP_CONTACT_OBJ_BP	NAMCOUNTRY	T005	LAND1	REF	C	CN
9	CRMT_BSP_CONTACT_OBJ_BP	NAMEFORMAT	T005N	NAMEFORMAT	REF	C	CN
10	CRMT_BSP_CONTACT_OBJ_BP	PREFIX1	TSAD4	PREFIX_KEY
11	CRMT_BSP_CONTACT_OBJ_BP	PREFIX2	TSAD4	PREFIX_KEY
12	CRMT_BSP_CONTACT_OBJ_BP	TITLE_ACA1	TSAD2	TITLE_KEY
13	CRMT_BSP_CONTACT_OBJ_BP	TITLE_ACA2	TSAD2	TITLE_KEY
14	CRMT_BSP_CONTACT_OBJ_BP	TITLE_SPPL	TSAD5	TITLE_KEY

History

Last changed by/on	SAP	20140117
SAP Release Created in	310
