SAP ABAP Table CRMST_SERVICEI_BTIL (Bus. Trans. IL Attribute Structure for SERVICEI Extension)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BTIL_OBJ (Package) Objects of the Transaction Interaction Layer

Basic Data

Table Category	INTTAB	Structure

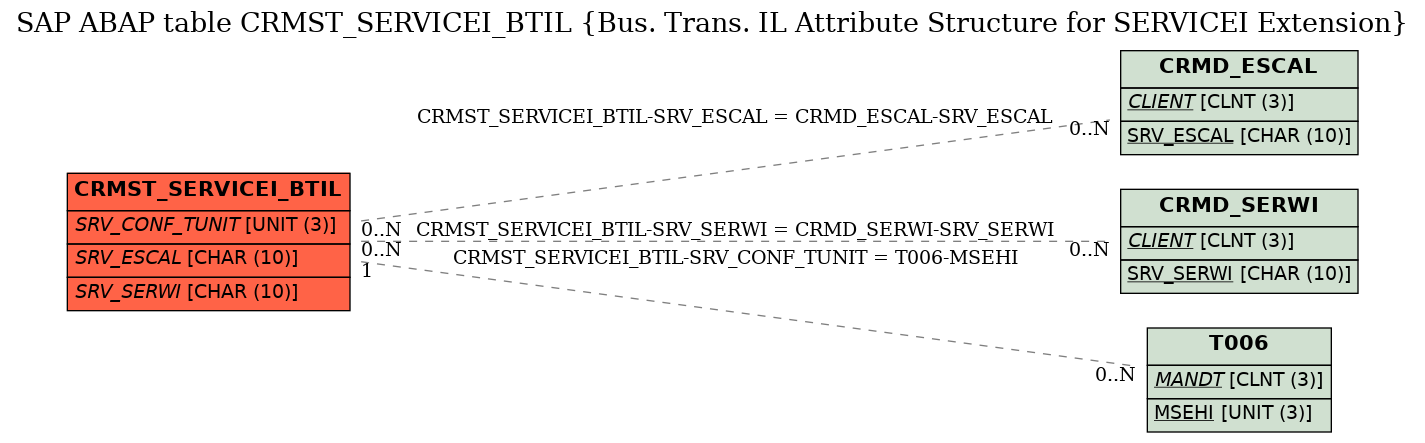

Structure	CRMST_SERVICEI_BTIL	Table Relationship Diagram
Short Description	Bus. Trans. IL Attribute Structure for SERVICEI Extension

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	CRM Service Item: Structure of External Fields
2	.INCLUDE	☐				0	0	Service Process
3	DISPO_FLG	☐	CRMT_SRV_DISPO_FLG	FLAG	CHAR	1	0	Relevant for Resource Planning
4	CONFIRM_RELEVANT	☐	CRMT_CONFIRM_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Confirmation
5	INSPEC_RELEVANT	☐	CRMT_INSPECTION_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Inspection
6	.INCLUDE	☐				0	0	Service Confirmation
7	SRV_CONF_TIME	☐	CRMT_SRV_CONF_DURATION	DAUER_5_2	QUAN	7	2	Confirmed Duration
8	SRV_CONF_TUNIT	☐	CRMT_SRV_CONF_TIME_UNIT	MEINS	UNIT	3	0	Time Unit for Confirmed Duration	T006
9	ASSIGNMENT_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
10	.INCLUDE	☐				0	0	ServiceProcess General Fields for TransactionAndConfirmation
11	SERVICE_TYPE	☐	CRMT_SERVICE_TYPE	CRMT_SERVICE_TYPE	CHAR	4	0	Service Type	*
12	VALUATION_TYPE	☐	CRMT_VALUATION_TYPE	CRMT_VALUATION_TYPE	CHAR	6	0	Valuation Type	*
13	.INCLUDE	☐				0	0	Service Agreements (SLA)
14	SRV_ESCAL	☐	CRMT_SRV_ESCAL	CRM_SRV_ESCAL	CHAR	10	0	Response Profile	CRMD_ESCAL
15	SRV_SERWI	☐	CRMT_SRV_SERWI	CRM_SRV_SERWI	CHAR	10	0	Service Profile	CRMD_SERWI
16	SRV_RULE_ID	☐	SC_RULEID	TEXT25	CHAR	25	0	Internal Identification of Rules of Periodic Appointments
17	SRCL_SERVICE_PROFILE	☐	CRMT_SRCL_SRVPRF	CRM_SRV_SERWI	CHAR	10	0	Processing Times: Service Profile	*
18	SRCL_RESPONSE_PROFILE	☐	CRMT_SRCL_RSPRF	CRM_SRCL_RSPRF	CHAR	10	0	Processing Time: Response Profile	*
19	.INCLUDE	☐				0	0	Service Process Fields for Warranty Management
20	WARRANTY	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
21	WARRANTY_ID	☐	CRMT_WTY_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Warranty ID
22	.INCLUDE	☐				0	0	EEW Include
23	SERVICE_I_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
24	.INCLUDE	☐				0	0
25	.INCLUDE	☐				0	0	CRM Service Item:Dynamic Fields (Only Modifiable Internally)
26	DEMAND_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
27	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
28	HR_STEXT	☐	STEXT	TEXT40	CHAR	40	0	Object Name
29	HR_OTEXT	☐	OTEXT	TEXT25	CHAR	25	0	Object Type Text
30	QUANTITY_OLD	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
31	QTY_UNIT_OLD	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
32	.INCLUDE	☐				0	0	Service Item: Time Fields
33	TIMESTAMP_FROM	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
34	TIMEZONE_FROM	☐	CRMT_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone for a Start Time	*
35	TIME_OUT_FROM	☐	CRMT_SRV_BEG_TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Start of Work
36	TIMESTAMP_TO	☐	CRMT_DATE_TIMESTAMP_TO	BCOS_TSTMP	DEC	15	0	Time stamp (Date and Time) until a Date/Duration
37	TIMEZONE_TO	☐	CRMT_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone for End Time	*
38	TIME_OUT_TO	☐	CRMT_SRV_END_TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	End of Work
39	TIMEPROFILE	☐	TIMECONT	TIMECONT	CHAR	12	0	Name of Date Profile
40	.INCLUDE	☐				0	0	CRM Structure - Service Item Requirement - External
41	DURATION	☐	CRMT_SRV_DURATION	MENG13	QUAN	13	3	Duration
42	DURATION_UNIT	☐	CRMT_SRV_DURATION_UOM	MEINS	UNIT	3	0	Unit for Duration of Work	*
43	HR_PLVAR	☐	PLVAR	PLVAR	CHAR	2	0	Plan Version	*
44	HR_OTYPE	☐	OTYPE	OTYPE	CHAR	2	0	Object Type	*
45	HR_OBJID	☐	HROBJID	HROBJID	NUMC	8	0	Object ID	*
46	PERSONS	☐	CRMT_SRV_PERSONS	NUMC3	NUMC	3	0	Number of Persons
47	.INCLUDE	☐				0	0	Scheduling Parameters
48	SCHED_PARAM1	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
49	SCHED_PARAM2	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
50	SCHED_PARAM3	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
51	.INCLUDE	☐				0	0	CRM Service Confirmation Item: Dynamic Fields
52	ORDER_NUMBER	☐	CRMT_OBJECT_ID_SRV	CRM_OBJECT_ID	CHAR	10	0	Service Process Number
53	ORDER_ITEM	☐	CRMT_ITEM_NO_SRV	CRM_ITEM_NO	NUMC	10	0	Transaction Item Number in Document
54	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMST_SERVICEI_BTIL	SRV_CONF_TUNIT	T006	MSEHI		1	CN
2	CRMST_SERVICEI_BTIL	SRV_ESCAL	CRMD_ESCAL	SRV_ESCAL
3	CRMST_SERVICEI_BTIL	SRV_SERWI	CRMD_SERWI	SRV_SERWI

History

Last changed by/on	SAP	20130604
SAP Release Created in	310
