SAP ABAP Table CPET_TERMCONVIN_MESS (CPE - Formula Message: Structure for TERMCONVIN)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-IF (Application Component) R/3 Interface for Business Transactions
     ⤷ CRM_DATAEXCHANGE_BTX (Package) One Order: MBDoc, Validation, Data Exchange R/3 Sales

Basic Data

Table Category	INTTAB	Structure
Structure	CPET_TERMCONVIN_MESS	Table Relationship Diagram
Short Description	CPE - Formula Message: Structure for TERMCONVIN

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Common structure for all segment structures
2	TR_STATUS	☐			CHAR	4	0
3	BEF_IMG	☐			INT1	3	0
4	TASK	☐			INT1	3	0
5	SENDBITS	☐			RAW	32	0
6	.INCLUDE	☐				0	0	CPE Term - Input for Conversion
7	.INCLUDE	☐				0	0	CPE Term - Key for Input of General Data
8	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
9	TERMCONVIN_GUID	☐	CPET_TERMCONVIN_GUID	SYSUUID	RAW	16	0	CPE Term - GUID for Conversion Input
10	.INCLUDE	☐				0	0	CPE - Input for Conversion Rule - Non GUID Key Part
11	CONVPLACE	☐	CPET_CONVPLACE	NUMC4	NUMC	4	0	CPE - Conversion Place
12	CURRFROM	☐	CPET_CURRFROM	WAERS	CUKY	5	0	CPE - Currency to Be Converted During Conversion ('from')	TCURC
13	UOMFROM	☐	CPET_UOMFROM	MEINS	UNIT	3	0	CPE - Unit of Measure to Be Converted During Conv. ('From')	T006
14	CURRTO	☐	CPET_CURRTO	WAERS	CUKY	5	0	CPE - Currency to Be Converted to During Conversion ('to')	TCURC
15	UOMTO	☐	CPET_UOMTO	MEINS	UNIT	3	0	CPE - Unit of Measure Converted to During Conversion	T006
16	.INCLUDE	☐				0	0	CPE - Input for Conversion Rule - Data Part
17	CONVERSIONRULE	☐	CPET_CONVERSIONRULE	CPE_RULE	CHAR	5	0	CPE - Conversion Rule	CPEC_CONVERSION
18	FIXEXCHRATE	☐	CPET_FIXEXCHRATE	CPE_CONVFACTOR	DEC	16	8	CPE Term - Fixed Exchange Rate for Currency Conversion
19	FACTORFROM	☐	CPET_FACTORFROM	CPE_CONVFACTOR	DEC	16	8	CPE - From-Factor for Conversion
20	FACTORTO	☐	CPET_FACTORTO	CPE_CONVFACTOR	DEC	16	8	CPE - To-Factor for Conversion

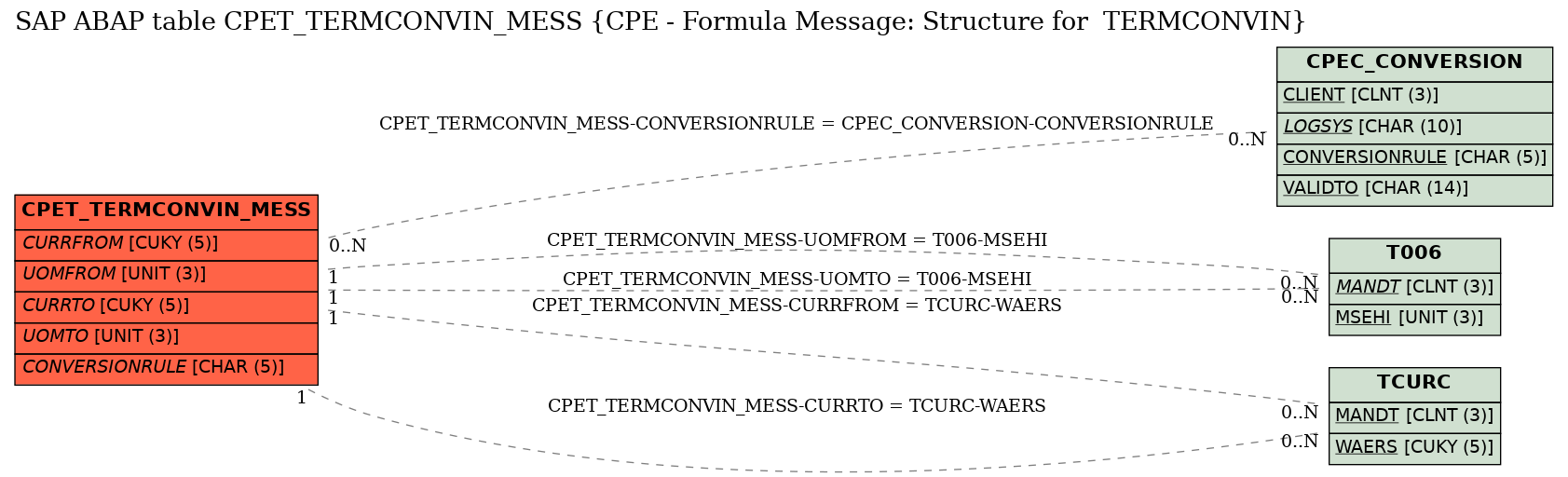

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CPET_TERMCONVIN_MESS	CONVERSIONRULE	CPEC_CONVERSION	CONVERSIONRULE
2	CPET_TERMCONVIN_MESS	CURRFROM	TCURC	WAERS		1	CN
3	CPET_TERMCONVIN_MESS	CURRTO	TCURC	WAERS		1	CN
4	CPET_TERMCONVIN_MESS	UOMFROM	T006	MSEHI		1	CN
5	CPET_TERMCONVIN_MESS	UOMTO	T006	MSEHI		1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
