SAP ABAP Table CCMACTIONOBJS (Screen: Assign actions to object types - usage restriction)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-CIC (Application Component) Interaction Center WinClient
     ⤷ CCMA (Package) Interaction Center Components

Basic Data

Table Category	INTTAB	Structure

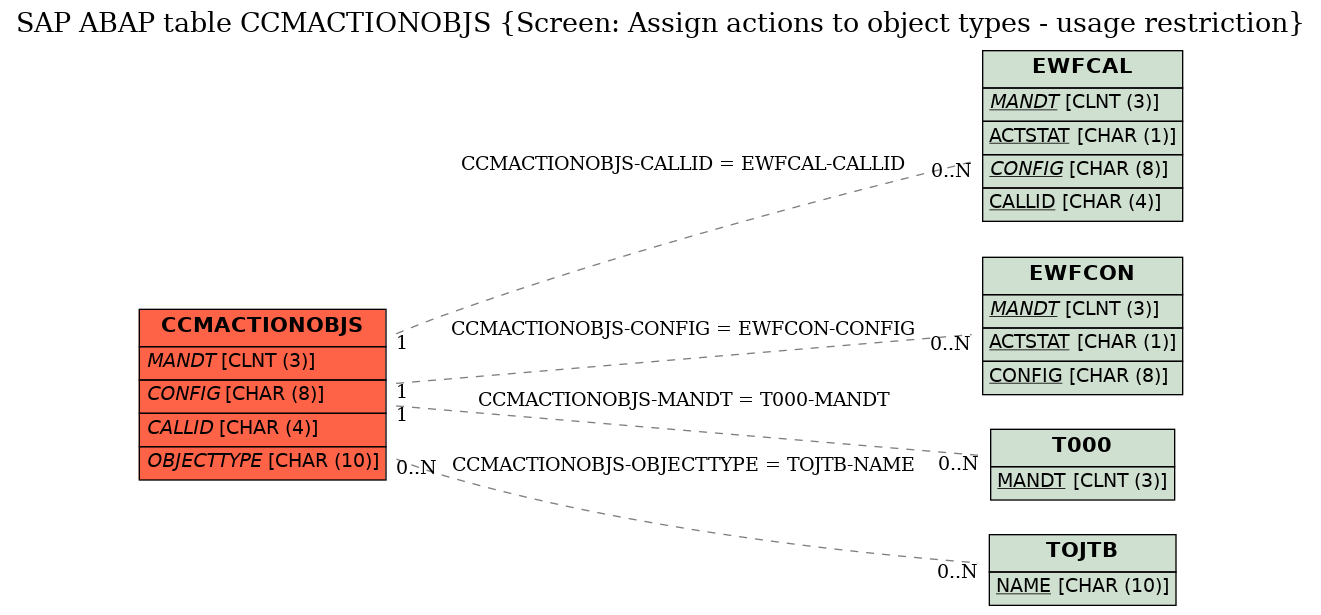

Structure	CCMACTIONOBJS	Table Relationship Diagram
Short Description	Screen: Assign actions to object types - usage restriction

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Assign transactions to object types - usage restriction
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	ACTSTAT	☐	CCMACTIVEACTIONDEPENDENCY	CCMBOOLEAN	CHAR	1	0	Activation status of the object assignment
4	CONFIG	☐	EWF_CONFIG	EWF_CONFIG	CHAR	8	0	Action Box Configuration	EWFCON
5	CALLID	☐	EWF_CALLID	EWF_CALLID	CHAR	4	0	Action Box transaction code	EWFCAL
6	OBJECTTYPE	☐	CCMOBJTYPEACTIONDEPENDENCY	OJ_NAME	CHAR	10	0	Object type for which action usage is restricted	TOJTB
7	DOUBLECLICK	☐	CCMDOUBLECLICKACTION	CCMBOOLEAN	CHAR	1	0	Action triggered by a double-click
8	DESCRIPT	☐	EWF_CALLTX	TEXT30	CHAR	30	0	Description of an Action Box transaction
9	OBJSTEXT	☐	OJ_STEXT	TEXT20	CHAR	20	0	Name

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CCMACTIONOBJS	CALLID	EWFCAL	CALLID	KEY	1	CN
2	CCMACTIONOBJS	CONFIG	EWFCON	CONFIG	KEY	1	CN
3	CCMACTIONOBJS	MANDT	T000	MANDT	KEY	1	CN
4	CCMACTIONOBJS	OBJECTTYPE	TOJTB	NAME	REF

History

Last changed by/on	SAP	20070401
SAP Release Created in
