SAP ABAP Table CCIHS_PTCPAPI (EHS: API Structure for Pattern-Collective Pattern Assignment)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ EHS-IHS (Application Component) Industrial Hygiene and Safety
     ⤷ CBIH (Package) EH&S: Industrial Hygiene and Safety

Basic Data

Table Category	INTTAB	Structure

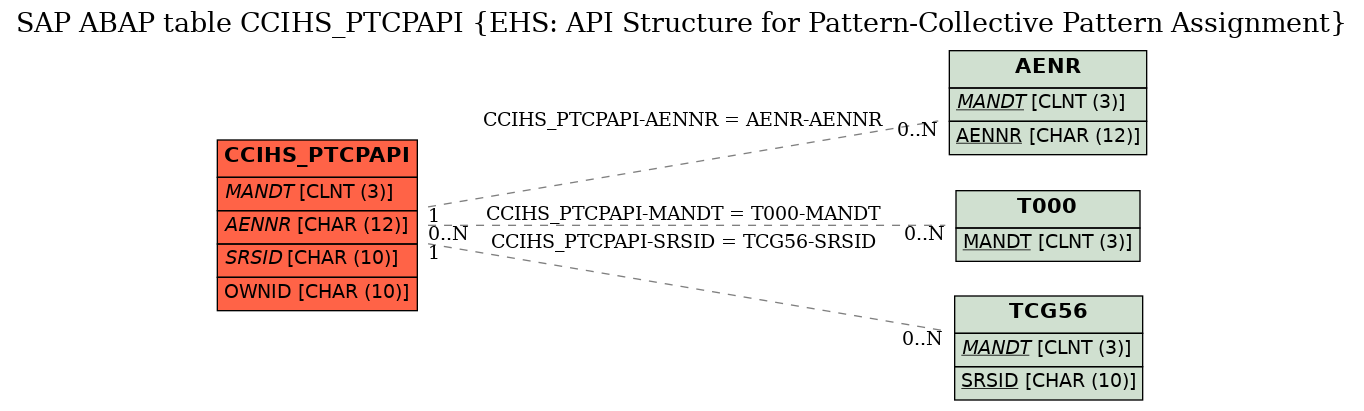

Structure	CCIHS_PTCPAPI	Table Relationship Diagram
Short Description	EHS: API Structure for Pattern-Collective Pattern Assignment

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	EHS: Pattern to Collective Pattern Assignment
2	.INCLUDE	☐				0	0	EHS: Structure for key info of master data
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
4	RECN	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
5	ACTN	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
6	.INCLUDE	☐				0	0	EHS: Structure for General Administration Information
7	VALFR	☐	ESEVALFR	DATUM	DATS	8	0	Valid-From Date
8	VALTO	☐	ESEVALTO	DATUM	DATS	8	0	Valid-To Date
9	AENNR	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	AENR
10	DELFLG	☐	ESEDELFLG	ESDFLAG	CHAR	1	0	Deletion Indicator
11	PARKFLG	☐	ESEPARKFLG	ESDFLAG	CHAR	1	0	Data Record Is Inactive
12	CRDAT	☐	ESECRDAT	DATUM	DATS	8	0	Created On
13	CRNAM	☐	ESECRNAM	USNAM	CHAR	12	0	Created By
14	UPDDAT	☐	ESEUPDDAT	DATUM	DATS	8	0	Changed On
15	UPDNAM	☐	ESEUPDNAM	USNAM	CHAR	12	0	Last Changed By
16	SRSID	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	TCG56
17	OWNID	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
18	RECNROOT	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
19	RECNTCP	☐	CCIHE_RECNTCP	ESDRECN	NUMC	20	0	Reference to Collective Pattern
20	RECNTPT	☐	CCIHE_RECNTPT	ESDRECN	NUMC	20	0	Reference to a Pattern or Collective Pattern
21	.INCLUDE	☐				0	0	EHS: Standard Fields for EHS API Structures
22	ERRORMODE	☐	ESEERRMODE	CHAR1	CHAR	1	0	Indicator: Error or warning in an API function
23	ERRORINFO	☐	NUMC4	NUMC4	NUMC	4	0	Count parameters
24	ERRORCLASS	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
25	ERRORPARAM	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
26	LOGLOCKMOD	☐	ESELGLCKMD	CHAR1	CHAR	1	0	Logical Lock Mode
27	EXTINFO	☐	ESEEXTINFO	CHAR10	CHAR	10	0	External Information
28	LINEMOD	☐	ESELINEMOD	CHAR1	CHAR	1	0	Processing status or mode of a record/step loop line

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CCIHS_PTCPAPI	AENNR	AENR	AENNR	REF	1	CN
2	CCIHS_PTCPAPI	MANDT	T000	MANDT
3	CCIHS_PTCPAPI	SRSID	TCG56	SRSID	REF	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
