SAP ABAP Table BAPI_RE_PARCEL_LAND_DAT (Parcel - Data)

Hierarchy

☛ EA-FIN (Software Component) EA-FIN
   ⤷ RE-FX-LM (Application Component) Land Use Management
     ⤷ RE_LM_PL (Package) RE: Parcel of Land

Basic Data

Table Category	INTTAB	Structure

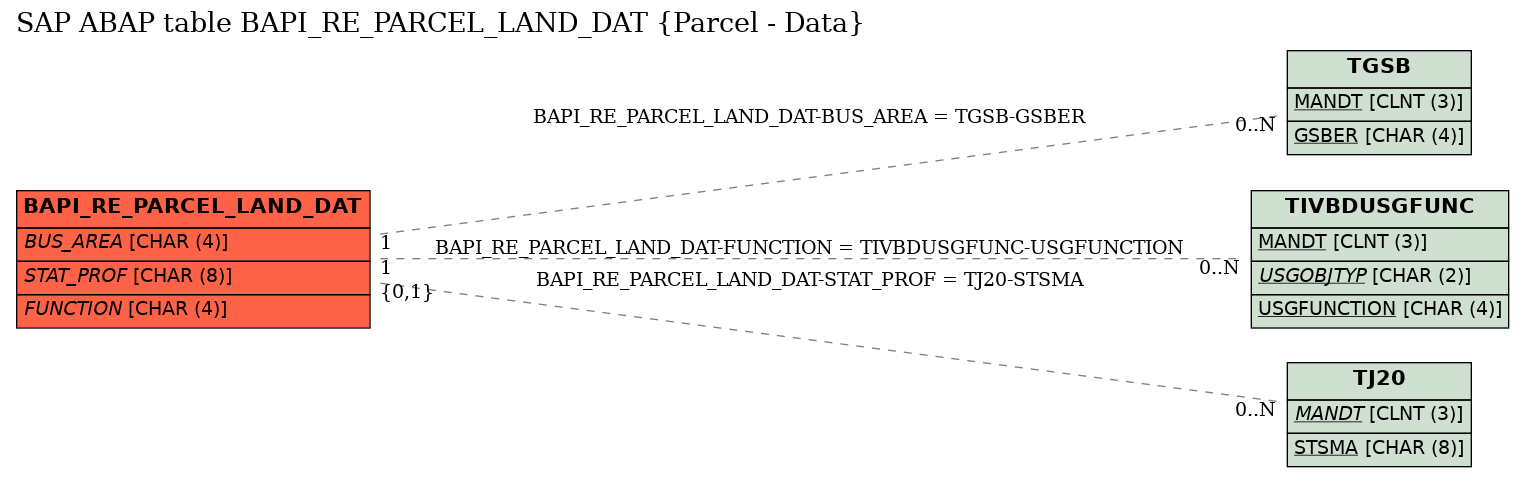

Structure	BAPI_RE_PARCEL_LAND_DAT	Table Relationship Diagram
Short Description	Parcel - Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	BUS_AREA	☐	GSBER	GSBER	CHAR	4	0	Business Area	TGSB
2	SURVEYING_STATUS	☐	RELMPLSURVEYIND	RELMPLSURVEYIND	CHAR	1	0	Surveying Status of Parcel
3	IS_TEMPORARY_PARCEL	☐	RELMPLISTEMPORARY	RECABOOL	CHAR	1	0	Temporary Parcel
4	PARCEL_OF_LAND_TEXT	☐	RELMXPL	RECAXLDESCRIPTION	CHAR	60	0	Parcel of Land - Text
5	AUTHORIZATION_GROUP	☐	RECAAUTHGRP	RECAAUTHGRP	CHAR	40	0	Authorization Group
6	OBJECT_VALID_FROM	☐	RELMPLVALIDFROM	RECADATEBEG	DATS	8	0	Date Parcel Valid From
7	OBJECT_VALID_TO	☐	RELMPLVALIDTO	RECADATEEND	DATS	8	0	Date: Parcel Ceased to Exist On
8	RESPONSIBLE	☐	RECARESPONSIBLE	XUBNAME	CHAR	12	0	Person Responsible	*
9	STAT_PROF	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	TJ20
10	FUNCTION	☐	REBDUSGFUNCTION	REBDUSGFUNCTION	CHAR	4	0	Function of Object	TIVBDUSGFUNC

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPI_RE_PARCEL_LAND_DAT	BUS_AREA	TGSB	GSBER	REF	1	CN
2	BAPI_RE_PARCEL_LAND_DAT	FUNCTION	TIVBDUSGFUNC	USGFUNCTION	REF	1	CN
3	BAPI_RE_PARCEL_LAND_DAT	STAT_PROF	TJ20	STSMA	REF	C	CN

History

Last changed by/on	SAP	20110901
SAP Release Created in	600
