SAP ABAP Table BAPI_EQALL (BAPI Structure for all Relevant Data of an Equipment)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ PM (Application Component) Plant Maintenance
     ⤷ IWWW (Package) Application development R/3 MSM WWW functions

Basic Data

Table Category	INTTAB	Structure

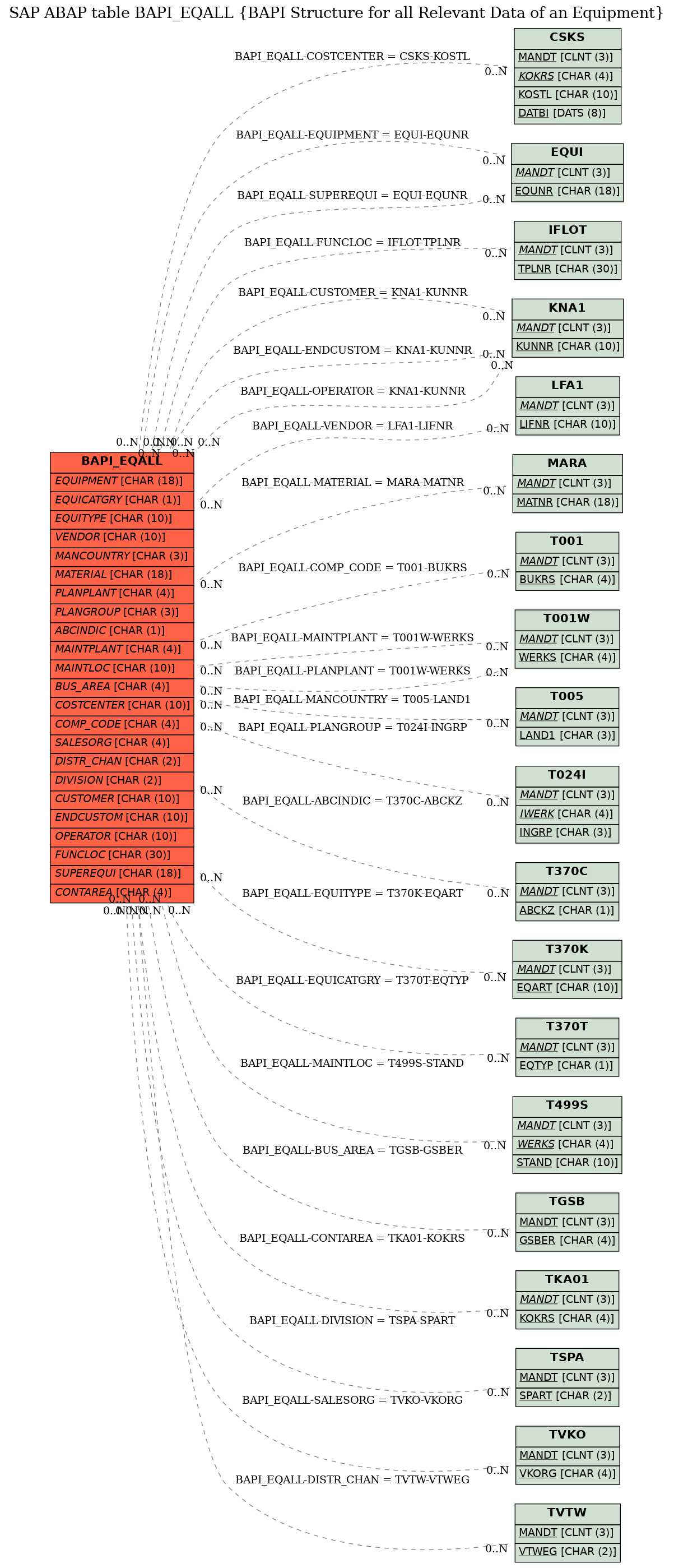

Structure	BAPI_EQALL	Table Relationship Diagram
Short Description	BAPI Structure for all Relevant Data of an Equipment

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	BAPI Structure for EQUI Data of an Equipment to be Created
2	EQUIPMENT	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	EQUI
3	EQUICATGRY	☐	EQTYP	EQTYP	CHAR	1	0	Equipment Category	T370T
4	EQUITYPE	☐	EQART	EQART	CHAR	10	0	Type of Technical Object	T370K
5	INVENTORY	☐	INVNR	INVNR_ANLA	CHAR	25	0	Inventory number
6	VENDOR	☐	ELIEF	LIFNR	CHAR	10	0	Vendor number	LFA1
7	WARRANTY	☐	GWLEN	DATUM	DATS	8	0	Date on which the warranty ends
8	MANFACTURE	☐	HERST	TEXT30	CHAR	30	0	Manufacturer of asset
9	MANCOUNTRY	☐	HERLD	LAND1	CHAR	3	0	Country of manufacture	T005
10	MANMODEL	☐	TYPBZ	TYPBZ	CHAR	20	0	Manufacturer model number
11	MATERIAL	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
12	SERIALNO	☐	GERNR	GERNR	CHAR	18	0	Serial Number
13	MATERIAL_EXTERNAL	☐	MGV_MATERIAL_EXTERNAL	MATNR_EXT	CHAR	40	0	Long Material Number for MATERIAL Field
14	MATERIAL_GUID	☐	MGV_MATERIAL_GUID	MATNR_EGUID	CHAR	32	0	External GUID for MATERIAL Field
15	MATERIAL_VERSION	☐	MGV_MATERIAL_VERSION	MATNR_VERS	CHAR	10	0	Version Number for MATERIAL Field
16	UII	☐	UII_CHAR72	UII_CHAR72	CHAR	72	0	Unique Item Identifier
17	.INCLUDE	☐				0	0	BAPI Structure for EQUZ Data of an Equipment to be Created
18	PLANPLANT	☐	IWERK	WERKS	CHAR	4	0	Maintenance Planning Plant	T001W
19	PLANGROUP	☐	INGRP	INGRP	CHAR	3	0	Planner Group for Customer Service and Plant Maintenance	T024I
20	.INCLUDE	☐				0	0	BAPI Structure for EQKT Data of an Equipment to be Created
21	EQUIDESCR	☐	KTX01	TEXT40	CHAR	40	0	Description of technical object
22	.INCLUDE	☐				0	0	BAPI Structure for ILOA Data of an Equipment to be Created
23	ABCINDIC	☐	ABCKZ	ABCKZ	CHAR	1	0	ABC Indicator for Technical Object	T370C
24	SORTFIELD	☐	EQFNR	CHAR30	CHAR	30	0	Sort Field
25	MAINTPLANT	☐	SWERK	WERKS	CHAR	4	0	Maintenance Plant	T001W
26	MAINTLOC	☐	PMLOC	AP_STAND	CHAR	10	0	Location of maintenance object	T499S
27	MAINTROOM	☐	RAUMNR	CHAR8	CHAR	8	0	Room
28	BUS_AREA	☐	GSBER	GSBER	CHAR	4	0	Business Area	TGSB
29	COSTCENTER	☐	KOSTL	KOSTL	CHAR	10	0	Cost Center	CSKS
30	COMP_CODE	☐	BUKRS	BUKRS	CHAR	4	0	Company Code	T001
31	.INCLUDE	☐				0	0	BAPI Structure for Sales/Customer Data for Equipment
32	SALESORG	☐	VKORG	VKORG	CHAR	4	0	Sales Organization	TVKO
33	DISTR_CHAN	☐	VTWEG	VTWEG	CHAR	2	0	Distribution Channel	TVTW
34	DIVISION	☐	SPART	SPART	CHAR	2	0	Division	TSPA
35	CUSTOMER	☐	KUND1	KUNNR	CHAR	10	0	Customer No.	KNA1
36	ENDCUSTOM	☐	KUND2	KUNNR	CHAR	10	0	End customer number	KNA1
37	OPERATOR	☐	KUND3	KUNNR	CHAR	10	0	Operator	KNA1
38	.INCLUDE	☐				0	0	BAPI Structure for Hierarchy Data of a Piece of Equipment
39	FUNCLOC	☐	TPLNR	TPLNR	CHAR	30	0	Functional Location	IFLOT
40	SUPEREQUI	☐	HEQUI	EQUNR	CHAR	18	0	Superordinate Equipment	EQUI
41	POSEQUI	☐	HEQNR	CHAR4	CHAR	4	0	Equipment position at InstallLoc (Superior Equip./FunctLoc)
42	.INCLUDE	☐				0	0	BAPI Stucture for Non-maintainable Equipment Data
43	CONTAREA	☐	KOKRS	CACCD	CHAR	4	0	Controlling Area	TKA01

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPI_EQALL	ABCINDIC	T370C	ABCKZ
2	BAPI_EQALL	BUS_AREA	TGSB	GSBER
3	BAPI_EQALL	COMP_CODE	T001	BUKRS
4	BAPI_EQALL	CONTAREA	TKA01	KOKRS
5	BAPI_EQALL	COSTCENTER	CSKS	KOSTL
6	BAPI_EQALL	CUSTOMER	KNA1	KUNNR
7	BAPI_EQALL	DISTR_CHAN	TVTW	VTWEG
8	BAPI_EQALL	DIVISION	TSPA	SPART
9	BAPI_EQALL	ENDCUSTOM	KNA1	KUNNR
10	BAPI_EQALL	EQUICATGRY	T370T	EQTYP
11	BAPI_EQALL	EQUIPMENT	EQUI	EQUNR
12	BAPI_EQALL	EQUITYPE	T370K	EQART
13	BAPI_EQALL	FUNCLOC	IFLOT	TPLNR
14	BAPI_EQALL	MAINTLOC	T499S	STAND
15	BAPI_EQALL	MAINTPLANT	T001W	WERKS
16	BAPI_EQALL	MANCOUNTRY	T005	LAND1
17	BAPI_EQALL	MATERIAL	MARA	MATNR
18	BAPI_EQALL	OPERATOR	KNA1	KUNNR
19	BAPI_EQALL	PLANGROUP	T024I	INGRP
20	BAPI_EQALL	PLANPLANT	T001W	WERKS
21	BAPI_EQALL	SALESORG	TVKO	VKORG
22	BAPI_EQALL	SUPEREQUI	EQUI	EQUNR
23	BAPI_EQALL	VENDOR	LFA1	LIFNR

History

Last changed by/on	SAP	20130529
SAP Release Created in
