SAP ABAP Table BAPI2076_TREE (BUS2076 (Cost Object Nodes): Hierarchy Nodes)

Hierarchy

☛ SAP_ABA (Software Component) Cross-Application Component
   ⤷ CA-GTF-TS (Application Component) Technical Application Support
     ⤷ BK (Package) CO Cross-application Objects

Basic Data

Table Category	INTTAB	Structure

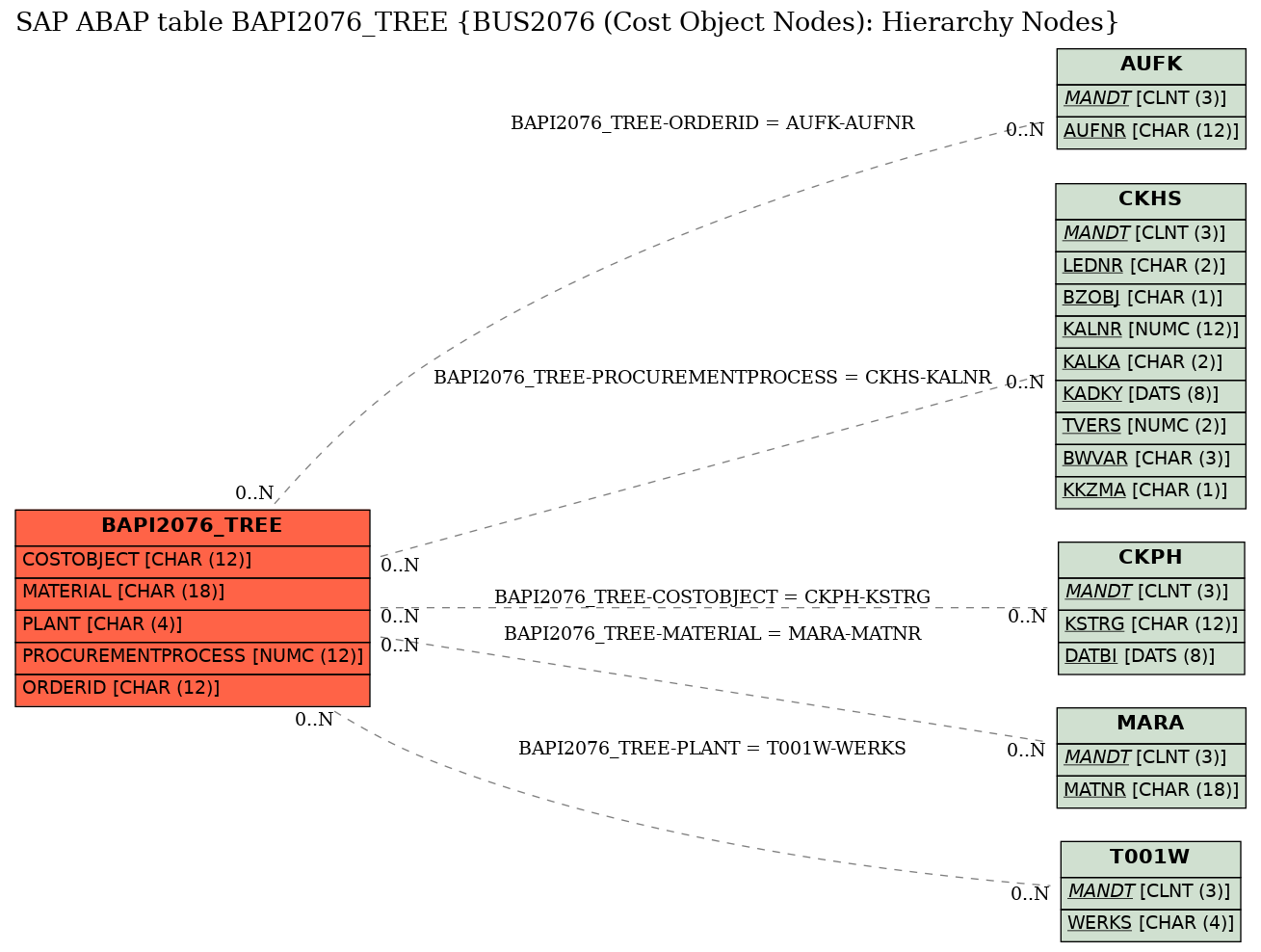

Structure	BAPI2076_TREE	Table Relationship Diagram
Short Description	BUS2076 (Cost Object Nodes): Hierarchy Nodes

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	LINEID	☐	KK_LINEID	SYST_LONG	INT4	10	0	Table Line of Hierarchy Node
2	LINEID_PARENT	☐	KK_LINEID	SYST_LONG	INT4	10	0	Table Line of Hierarchy Node
3	LINEID_FIRST_SON	☐	KK_LINEID	SYST_LONG	INT4	10	0	Table Line of Hierarchy Node
4	LINEID_NEXT_BROTHER	☐	KK_LINEID	SYST_LONG	INT4	10	0	Table Line of Hierarchy Node
5	COSTOBJECT	☐	KSTRG	KSTRG	CHAR	12	0	Cost Object	*
6	MATERIAL	☐	MATNR	MATNR	CHAR	18	0	Material Number
7	PLANT	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
8	PROCUREMENTPROCESS	☐	CKML_N_PROCNR	CK_KALNR	NUMC	12	0	Procurement Process	*
9	ORDERID	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	*
10	MATERIAL_EXTERNAL	☐	MGV_MATERIAL_EXTERNAL	MATNR_EXT	CHAR	40	0	Long Material Number for MATERIAL Field
11	MATERIAL_GUID	☐	MGV_MATERIAL_GUID	MATNR_EGUID	CHAR	32	0	External GUID for MATERIAL Field
12	MATERIAL_VERSION	☐	MGV_MATERIAL_VERSION	MATNR_VERS	CHAR	10	0	Version Number for MATERIAL Field

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPI2076_TREE	COSTOBJECT	CKPH	KSTRG
2	BAPI2076_TREE	MATERIAL	MARA	MATNR
3	BAPI2076_TREE	ORDERID	AUFK	AUFNR
4	BAPI2076_TREE	PLANT	T001W	WERKS
5	BAPI2076_TREE	PROCUREMENTPROCESS	CKHS	KALNR

History

Last changed by/on	SAP	20040312
SAP Release Created in
