SAP ABAP Table AGS_BPCA_NODE_STRUCT (Structure for Nodes in BPCA Reporting)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-TWB-BCA (Application Component) Business Process Change Analyzer
     ⤷ AGS_BPCA_EN (Package) Business Process Chanage Analysis

Basic Data

Table Category	INTTAB	Structure

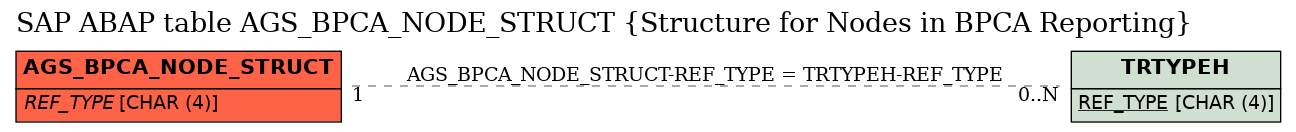

Structure	AGS_BPCA_NODE_STRUCT	Table Relationship Diagram
Short Description	Structure for Nodes in BPCA Reporting

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	BCSTATUS	☐	SCPRACST	SCPRACST	CHAR	1	0	BC Sets: Activation Status
2	STATUS	☐	STAT_STAT	STAT_STAT	CHAR	10	0	Processing status	*
3	TEXT	☐	BMREFTEXT	TEXT255	CHAR	255	0	Name of object assignments
4	TREE_ID	☐	HIER_ROBJE	CHAR70	CHAR	70	0	Referenced object for node
5	OBJTYPE	☐	AGR_TITLE	TEXT80	CHAR	80	0	Short Description
6	TYPE_KEY	☐	SCRTEXT_TC	SCRTEXT	CHAR	50	0	Test Case Type
7	URL	☐	AGR_URL	AGR3_HTML	CHAR	255	0	URL for the SAP Portal
8	URL_TYPE	☐	URLTYPE	URLTYPE	CHAR	20	0	Type of URL
9	CUS_COMP	☐	SYSDLVUNIT	SYSDLVUNIT	CHAR	30	0	Technical Description of Logical Components	*
10	BROTHER_ID	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
11	PARENT_ID	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
12	NODE_ID2	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
13	DEFAULTFLG	☐	XFELD	XFELD	CHAR	1	0	Checkbox
14	REFNODE_ID	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
15	RESPIMP	☐	STAT_RESS	STAT_RESS	CHAR	12	0	Employee responsible	*
16	.INCLUDE	☐				0	0	Structure repository for process model objects: References
17	.INCLUDE	☐				0	0	Link table key include
18	NODE_ID	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
19	EXT_KEY	☐	HIER_TREE	HIER_TREE	CHAR	12	0	External key
20	REF_TYPE	☐	HIER_RTYPE	HIER_RTYPE	CHAR	4	0	Valid Reference Types in Structure Repository	TRTYPEH
21	REF_OBJECT	☐	HIER_ROBJE	CHAR70	CHAR	70	0	Referenced object for node
22	.INCLUDE	☐				0	0	Link table data part include
23	EXTENSION	☐	HIER_NAMES	HIER_NAMES	CHAR	15	0	Structure enhancement ID	*
24	R_SEQUEN	☐	HIER_NUM10		NUMC	10	0	Numerical Character 10
25	COMPONENT	☐	SYSDLVUNIT	SYSDLVUNIT	CHAR	30	0	Technical Description of Logical Components	*
26	SYSTEMINST	☐	SYSTEMINST	SYSTEMINST	CHAR	20	0	Code for an Assigned System Landscape in Project	*
27	COMPRELFR	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
28	COMPRELTO	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
29	DEFAULTREF	☐	XFELD	XFELD	CHAR	1	0	Checkbox
30	IN_SCOPE	☐	XFELD	XFELD	CHAR	1	0	Checkbox
31	PRDVERSFR	☐	SBORPV_FRM	SBORPVNR	CHAR	20	0	Component Release
32	PRDVERSTO	☐	SBORPV_TO	SBORPVNR	CHAR	20	0	Component Release
33	APPL_FLAG1	☐	HIER_AFLAG	CHAR1	CHAR	1	0	Flag: Use by application only
34	APPL_FLAG2	☐	HIER_AFLAG	CHAR1	CHAR	1	0	Flag: Use by application only
35	APPL_FLAG3	☐	HIER_AFLAG	CHAR1	CHAR	1	0	Flag: Use by application only
36	UPG_FLAG	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
37	TEST_CASES	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
38	TBOM_GUID	☐	AGS_TBOM_GUID	SYSUUID_C	CHAR	32	0	AGS_TBOM_GUID
39	TBOM_STATUS	☐	AGS_TBOM_STATUS	AGS_TBOM_STATUS	CHAR	1	0	TBOM Status
40	TBOM_STATUS_TEXT	☐	AGS_TBOM_STATUS_TEXT	DDTEXT	CHAR	60	0	TBOM Status text
41	TBOM_TYPE	☐	CHAR40	CHAR40	CHAR	40	0	Character field of length 40
42	TBOM_SYSCOMP	☐	FLAG	FLAG	CHAR	1	0	General Flag
43	TBOM_SYSCOMP_TEXT	☐	TEXT50	TEXT50	CHAR	50	0	Text Field
44	TBOM_TYPE_KEY	☐	FLAG	FLAG	CHAR	1	0	General Flag
45	TEST_OBJ	☐	HIER_ROBJE	CHAR70	CHAR	70	0	Referenced object for node

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	AGS_BPCA_NODE_STRUCT	REF_TYPE	TRTYPEH	REF_TYPE		1	CN

History

Last changed by/on	SAP	20100705
SAP Release Created in	400
