SAP ABAP Table /SAPSLL/PRPREF_UI_ARCH_S (Preference: Output Structure for /SAPSLL/PRPREF from Archive)
Hierarchy
☛
SLL-LEG (Software Component) SLL-LEG 901: Add-On Installation
⤷
SLL-LEG (Application Component) Global Trade Services
⤷
/SAPSLL/LEGAL_PRE_SRV (Package) Legal Services: Preference Management: Service Functions
SLL-LEG (Software Component) SLL-LEG 901: Add-On Installation⤷
SLL-LEG (Application Component) Global Trade Services⤷
/SAPSLL/LEGAL_PRE_SRV (Package) Legal Services: Preference Management: Service Functions
Basic Data
| Table Category | INTTAB | Structure |
| Structure | /SAPSLL/PRPREF_UI_ARCH_S |

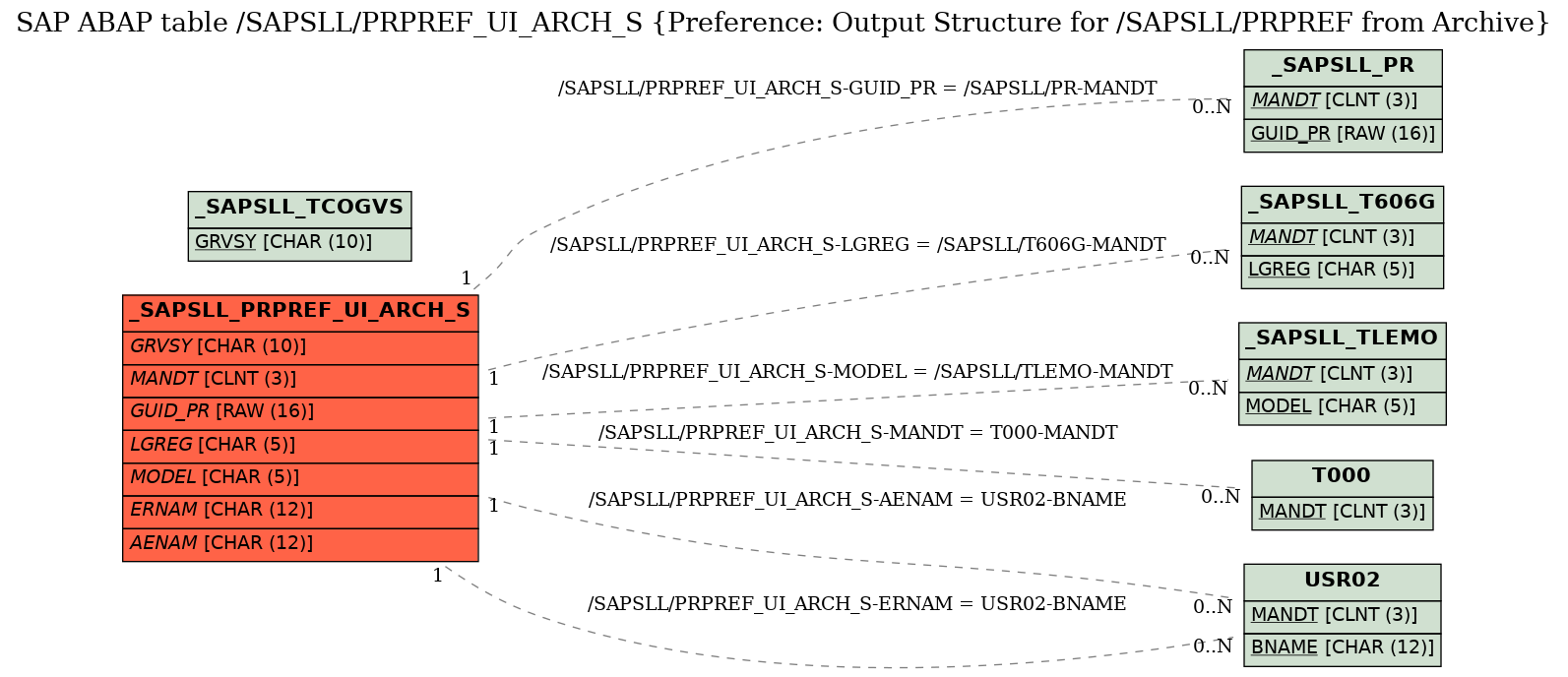

Table Relationship Diagram
|
| Short Description | Preference: Output Structure for /SAPSLL/PRPREF from Archive |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | ||
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  .INCLUDE |
0 | 0 | Legal and Logistics Srv.: Prod.Master Mapping - PK W/O Clnt | |||||
| 2 | GRVSY |
/SAPSLL/GRVSY | /SAPSLL/GRVSY | CHAR | 10 | 0 | Logical System Group | /SAPSLL/TCOGVS | |
| 3 | PRVSY |
/SAPSLL/PRVSY | /SAPSLL/OBJEX_PRVSY | CHAR | 40 | 0 | Product Number | ||
| 4 | PRTYP |
/SAPSLL/PRTYP | /SAPSLL/PRTYP | CHAR | 2 | 0 | Prod. Cat. fr. Backend System for Legal and Logistics Serv. | ||
| 5 | .INCLUDE |
0 | 0 | SLL: Product Master: Preference Data | |||||
| 6 | .INCLUDE |
0 | 0 | SLL: Product Master: Preference Data - PK | |||||
| 7 | MANDT |
MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
| 8 | .INCLUDE |
0 | 0 | SLL: Product Master: Preference Data - PK w/o Client | |||||
| 9 | GUID_PRPREF |
/SAPSLL/GUID_16 | SYSUUID | RAW | 16 | 0 | Primary Key as GUID in 'RAW' Format | ||
| 10 | .INCLUDE |
0 | 0 | SLL: Product Master: Preference Data - Data Part | |||||
| 11 | .INCLUDE |
0 | 0 | SLL: Product Master: Preference Data - SK | |||||
| 12 | .INCLUDE |
0 | 0 | Legal and Logistics Services: Product Master - PK w/o Client | |||||
| 13 | GUID_PR |
/SAPSLL/GUID_16 | SYSUUID | RAW | 16 | 0 | Primary Key as GUID in 'RAW' Format | /SAPSLL/PR | |
| 14 | .INCLUDE |
0 | 0 | SLL: GUID for Identifying the Entry in the Model Table | |||||
| 15 | GUID_MODEL |
/SAPSLL/GUID_MODEL | /SAPSLL/GUID_MODEL | CHAR | 20 | 0 | GUID for Table Entry of Preference Model | ||
| 16 | LGREG |
/SAPSLL/LGREG | /SAPSLL/LGREG | CHAR | 5 | 0 | Legal Regulation | /SAPSLL/T606G | |
| 17 | PRFTY |
/SAPSLL/PRFTY | /SAPSLL/PRFTY | CHAR | 1 | 0 | Type of Preference Data in Product Master | ||
| 18 | PRMET |
/SAPSLL/PRMET | /SAPSLL/PRMET | CHAR | 1 | 0 | Preference: Comparison Method | ||
| 19 | .INCLUDE |
0 | 0 | SLL: Valid To | |||||
| 20 | DATBI |
/SAPSLL/RPTET | /SAPSLL/TSTMP | DEC | 15 | 0 | Definitive Date (Valid-To Date) | ||
| 21 | .INCLUDE |
0 | 0 | SLL: Valid From | |||||
| 22 | DATAB |
/SAPSLL/RPTST | /SAPSLL/TSTMP | DEC | 15 | 0 | Definitive Date (Valid-From Time) | ||
| 23 | .INCLUDE |
0 | 0 | SLL: Product Master: Peference Data - Data Part w/o ETS | |||||
| 24 | PREFE |
/SAPSLL/PREFE | /SAPSLL/PREFE | NUMC | 2 | 0 | Preference: Preference Indicator | ||
| 25 | QUANT |
/SAPSLL/QUANT_FLT | /SAPSLL/FLOAT | FLTP | 16 | 16 | Quantity as Floating Point Field | ||
| 26 | QUAUM |
/SAPSLL/DIMUM | MEINS | UNIT | 3 | 0 | Unit of Measurement of a Dimension | * | |
| 27 | VALCP |
/SAPSLL/PRE_VALCP_FLT | /SAPSLL/FLOAT | FLTP | 16 | 16 | Preferential Threshold Value | ||
| 28 | VALOR |
/SAPSLL/PRE_VALOR_FLT | /SAPSLL/FLOAT | FLTP | 16 | 16 | Positive Share | ||
| 29 | VALNO |
/SAPSLL/PRE_VALNO_FLT | /SAPSLL/FLOAT | FLTP | 16 | 16 | Proportion of Dutiable Components | ||
| 30 | VALRB |
/SAPSLL/PRE_VALRB_FLT | /SAPSLL/FLOAT | FLTP | 16 | 16 | RVC Benefit for Designated Intermediate Material | ||
| 31 | VLCUR |
/SAPSLL/AMCUR | WAERS | CUKY | 5 | 0 | Currency of a Value | * | |
| 32 | MODEL |
/SAPSLL/MODEL | /SAPSLL/MODEL | CHAR | 5 | 0 | Preference Model | /SAPSLL/TLEMO | |
| 33 | .INCLUDE |
0 | 0 | GTS: Administration: Created By, Changed By, Time Stamp | |||||
| 34 | ERNAM |
/SAPSLL/ERNAM | XUBNAME | CHAR | 12 | 0 | Name of User Who Created the Object | USR02 | |
| 35 | CRTSP |
/SAPSLL/CRTSP | /SAPSLL/TMELS | DEC | 15 | 0 | Date and Time When Object Was Added | ||
| 36 | AENAM |
/SAPSLL/AENAM | XUBNAME | CHAR | 12 | 0 | Name of User Who Changed the Object | USR02 | |
| 37 | CHTSP |
/SAPSLL/CHTSP | /SAPSLL/TMELS | DEC | 15 | 0 | Date and Time When Object Was Changed | ||
| 38 | .INCLUDE |
0 | 0 | SLL: Preferential Origin | |||||
| 39 | PURLA |
/SAPSLL/PURLA | LAND1 | CHAR | 3 | 0 | Preferential Country of Origin | * | |
| 40 | PRNUM_TXT |
/SAPSLL/PRTXT | TEXT60 | CHAR | 60 | 0 | Product Master Short Text | ||
| 41 | PREFE_TXT |
TEXT80 | TEXT80UEB | CHAR | 80 | 0 | Text (80 Characters) | ||
| 42 | LGREG_TXT |
TEXT80 | TEXT80UEB | CHAR | 80 | 0 | Text (80 Characters) | ||
| 43 | PLANT |
/SAPSLL/WERKS | /SAPSLL/WERKS | CHAR | 4 | 0 | Plant from Feeder System | ||
| 44 | PLANTGRP |
/SAPSLL/VSOGP | /SAPSLL/VSOGP | CHAR | 10 | 0 | Plant Group for Feeder System Plants | * | |
| 45 | GUID_MODEL_TXT |
TEXT10 | TEXT10 | CHAR | 10 | 0 | Text (10 Characters) | ||
| 46 | PROCID |
/SAPSLL/PROCID | /SAPSLL/PROCID | CHAR | 1 | 0 | Procurement Indicator | ||
| 47 | PRSALE |
/SAPSLL/PRSALE | /SAPSLL/PRSALE | CHAR | 1 | 0 | Indicator for Product Saleability |
Foreign Keys
| |
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right |
|---|---|---|---|---|---|---|---|
 |
|
|
|
|
|
|
|
| 1 | /SAPSLL/PRPREF_UI_ARCH_S | AENAM |  USR02 |
BNAME |
KEY | 1 | CN |
| 2 | /SAPSLL/PRPREF_UI_ARCH_S | ERNAM | USR02 |
BNAME |
KEY | 1 | CN |
| 3 | /SAPSLL/PRPREF_UI_ARCH_S | GUID_PR | /SAPSLL/PR |
MANDT |
KEY | 1 | CN |
| 4 | /SAPSLL/PRPREF_UI_ARCH_S | LGREG | /SAPSLL/T606G |
MANDT |
KEY | 1 | CN |
| 5 | /SAPSLL/PRPREF_UI_ARCH_S | MANDT | T000 |
MANDT |
KEY | 1 | CN |
| 6 | /SAPSLL/PRPREF_UI_ARCH_S | MODEL | /SAPSLL/TLEMO |
MANDT |
REF | 1 | CN |
History
| Last changed by/on | SAP | 20141106 |
| SAP Release Created in | 7.00 |
