SAP ABAP Table WTYBRF_MPOINT (BRF Data Source: Measurement Point)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ LO-WTY (Application Component) Warranty Claim Processing
     ⤷ ISAUTO_WTY (Package) Warranty Processing

Basic Data

Table Category	INTTAB	Structure

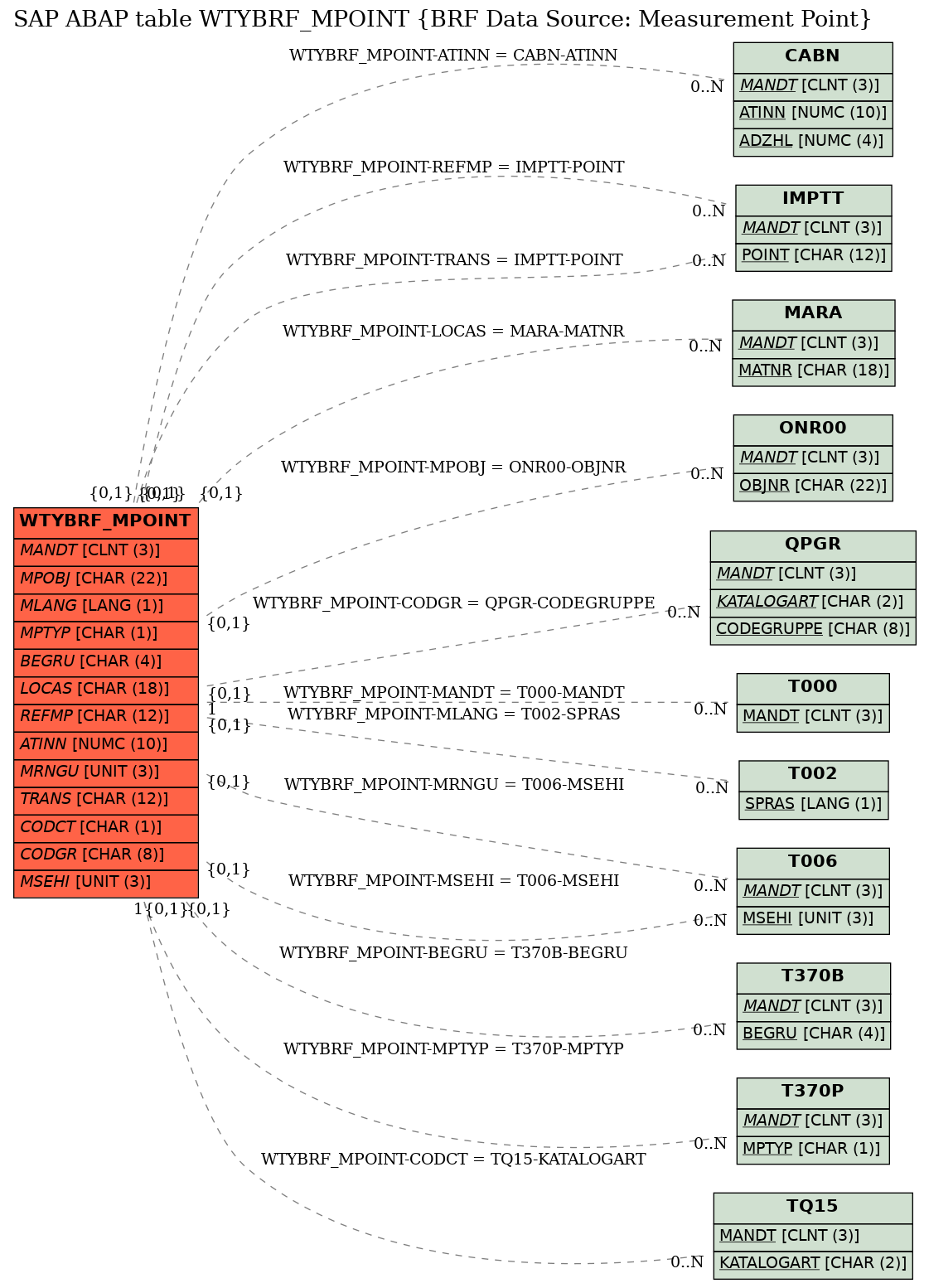

Structure	WTYBRF_MPOINT	Table Relationship Diagram
Short Description	BRF Data Source: Measurement Point

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	HANDLE	☐	WTY_HANDLE	WTY_HANDLE	CHAR	22	0	Warranty Handling, Number
2	PNGUID	☐	WTY_GUID	SYSUUID	RAW	16	0	GUID Warranty Claim
3	.INCLUDE	☐				0	0	Measuring Point (Structure)
4	.INCLUDE	☐				0	0	Measuring Point (Table)
5	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
6	POINT	☐	IMRC_POINT	IMRC_POINT	CHAR	12	0	Measuring Point	*
7	MPOBJ	☐	IMRC_MPOBJ	J_OBJNR	CHAR	22	0	Object Number for the Measuring Point Object	ONR00
8	PSORT	☐	IMRC_PSORT	CHAR20	CHAR	20	0	Position Number of the Object Measuring Point (Sort Field)
9	PSORTR	☐	IMRCRPSORT	X	CHAR	1	0	Indicator: Position Number Comes From Reference MeasPoint
10	PTTXT	☐	IMRC_PTTXT	TEXT40	CHAR	40	0	Description of Measuring Point
11	MLANG	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
12	KZLTX	☐	ILOM_KZLTX	X	CHAR	1	0	Indicator: Long text exists
13	MPTYP	☐	IMRC_MPTYP	IMRC_MPTYP	CHAR	1	0	Measuring Point Category	T370P
14	IRFMP	☐	IMRC_IRFMP	X	CHAR	1	0	Indicator: MeasPoint Is a Reference Measuring Point
15	ERDAT	☐	ICRDT	DATUM	DATS	8	0	Date on Which Object Was Created
16	ERNAM	☐	ICRNA	USNAM	CHAR	12	0	Name of User Who Created the Object
17	AEDAT	☐	IUPDT	DATUM	DATS	8	0	Date on which the object was last changed
18	AENAM	☐	IUPNA	USNAM	CHAR	12	0	Name of the User Who Last Changed the Object
19	BEGRU	☐	IAUTG	IAUTG	CHAR	4	0	Authorization Group for Technical Object	T370B
20	INACT	☐	IMRC_INACT	X	CHAR	1	0	Indicator: Measuring Point Inactive
21	LVORM	☐	IMRC_DEL2	IMRC_DEL2	CHAR	1	0	Deletion Flag for 2-Level Deletion Logic
22	LOCAS	☐	IMRC_LOCAS	MATNR	CHAR	18	0	Assembly for Localization of Measuring Point	MARA
23	REFMP	☐	IMRC_REFMP	IMRC_POINT	CHAR	12	0	Reference Meas.Pt	IMPTT
24	ATINN	☐	ATINN	ATINN	NUMC	10	0	Internal characteristic	CABN
25	ATINNR	☐	IMRCRATINN	X	CHAR	1	0	Indicator: Charac Comes From Reference Measuring Point
26	EXPON	☐	IMRC_EXPON	IMRC_EXPON	INT2	5	0	Power of Ten Exponent for Floating Point Display
27	DECIM	☐	IMRC_DECIM	IMRC_DECIM	INT2	5	0	Number of Decimal Places for Number Display
28	DESIR	☐	IMRC_DESIR	IMRC_FLTPS	FLTP	16	16	Measuring Point Target Value
29	DESIRI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
30	DESIRR	☐	IMRCRDESIR	X	CHAR	1	0	Indicator: Target Value Comes From Reference Measuring Point
31	DSTXT	☐	IMRC_DSTXT	TEXT40	CHAR	40	0	Aditional Short Text for Measuring Point
32	DSTXTR	☐	IMRCRDSTXT	X	CHAR	1	0	Indicator: Additional Text Comes From Reference MeasPoint
33	MRMIN	☐	IMRC_MRMIN	IMRC_FLTPS	FLTP	16	16	Lower Measurement Range Limit/Minimum Total Counter Reading
34	MRMINI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
35	MRMAX	☐	IMRC_MRMAX	IMRC_FLTPS	FLTP	16	16	Upper Measurement Range Limit/Maximum Total Counter Reading
36	MRMAXI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
37	MRNGU	☐	IMRC_MRNGU	MEINS	UNIT	3	0	Measurement Range Unit	T006
38	INDCT	☐	IMRC_INDCT	X	CHAR	1	0	Indicator to Show that Measuring Point Is a Counter
39	INDRV	☐	IMRC_INDRV	X	CHAR	1	0	Indicator: Counter Runs Backwards
40	INDTR	☐	IMRC_INDTR	X	CHAR	1	0	Indicator That Measurement Reading Transfer is Supported
41	TRANS	☐	IMRC_TRANS	IMRC_POINT	CHAR	12	0	Measuring Point from Which Meas. Reading Was Transferred	IMPTT
42	CJUMP	☐	IMRC_CJUMP	IMRC_FLTPS	FLTP	16	16	Counter Overflow Reading in SI Unit
43	CJUMPI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
44	PYEAR	☐	IMRC_PYEAR	IMRC_FLTPS	FLTP	16	16	Annual Estimate in SI Unit
45	PYEARI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
46	CODCT	☐	IMRC_CODCT	QKATART	CHAR	1	0	Catalog Type - Measurement Reading Valuation Code	TQ15
47	CODGR	☐	IMRC_CODGR	QCODEGRP	CHAR	8	0	Code Group - Measurement Reading Valuation Code	QPGR
48	CODGRR	☐	IMRCRCODGR	X	CHAR	1	0	Indicator: Code Group Comes From Reference Measuring Point
49	CDSUF	☐	IMRC_CDSUF	X	CHAR	1	0	Indicator: Valuation Code Sufficient for Measurmnt. Document
50	MODTR	☐	IMRC_MODTR	IMRC_MODTR	CHAR	1	0	Mode of Counter Reading Transfer
51	.INCLUDE	☐				0	0
52	INDTRR	☐	IMRCRINDTR	X	CHAR	1	0	Indicator: Measurement Transfer Comes from Ref. Meas. Point
53	.INCLUDE	☐				0	0	Characteristic Fields for Measuring Point
54	ATNAM	☐	ATNAM	ATNAM	CHAR	30	0	Characteristic Name
55	ATFOR	☐	ATFOR	ATFOR	CHAR	4	0	Data type of characteristic
56	ATVOR	☐	IMRC_INEGV	X	CHAR	1	0	Indicator: Negative Values Allowed
57	MSEHI	☐	MSEHI	MEINS	UNIT	3	0	Unit of Measurement	T006
58	ATDIM	☐	ATDIM	EXP10	INT2	5	0	Exponent display
59	ANZDZ	☐	ANZDZ	ANZDZ	INT2	5	0	Number of Decimal Places
60	AUSWAHLMGE	☐	QAUSWAHLMG	QAUSWAHLMG	CHAR	8	0	Selected Set	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	WTYBRF_MPOINT	ATINN	CABN	ATINN	REF	C	CN
2	WTYBRF_MPOINT	BEGRU	T370B	BEGRU	REF	C	CN
3	WTYBRF_MPOINT	CODCT	TQ15	KATALOGART	REF	C	CN
4	WTYBRF_MPOINT	CODGR	QPGR	CODEGRUPPE	REF	C	CN
5	WTYBRF_MPOINT	LOCAS	MARA	MATNR	REF	C	CN
6	WTYBRF_MPOINT	MANDT	T000	MANDT	KEY	1	CN
7	WTYBRF_MPOINT	MLANG	T002	SPRAS	REF	C	CN
8	WTYBRF_MPOINT	MPOBJ	ONR00	OBJNR	REF	C	CN
9	WTYBRF_MPOINT	MPTYP	T370P	MPTYP	REF	1	CN
10	WTYBRF_MPOINT	MRNGU	T006	MSEHI	REF	C	CN
11	WTYBRF_MPOINT	MSEHI	T006	MSEHI	REF	C	CN
12	WTYBRF_MPOINT	REFMP	IMPTT	POINT	REF	C	CN
13	WTYBRF_MPOINT	TRANS	IMPTT	POINT	REF	C	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in	600
