SAP ABAP Table TSMW04 (Actions for services in error case)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-SRV (Application Component) Flow / Services
     ⤷ SMW0 (Package) Middleware - Errorservice

Basic Data

Table Category	TRANSP	Transparent table

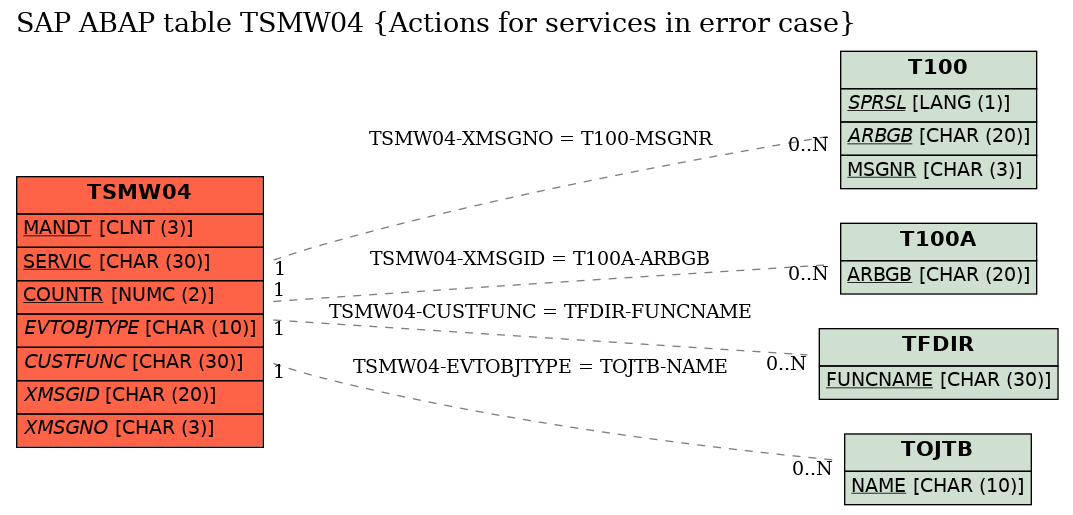

Transparent table	TSMW04	Table Relationship Diagram
Short Description	Actions for services in error case

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	SERVIC	☑	SMWMSGLSER	SMOG_CHR30	CHAR	30	0	Service/ Class/ Function module
3	COUNTR	☑	NUM2	NUM2	NUMC	2	0	Numeric, 2-digit value
4	ERRAC	☐	SMWERRAC	SMWERRAC	CHAR	5	0	Error Action
5	.INCLUDE	☐				0	0	Error action parameters
6	EVTOBJTYPE	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	TOJTB
7	EVTSEVENT	☐	SWO_EVENT	SWC_ELEM	CHAR	32	0	Event
8	EVTFEVENT	☐	SWO_EVENT	SWC_ELEM	CHAR	32	0	Event
9	MAILREC	☐	CHAR255	CHAR255	CHAR	255	0	Char255
10	MAILTYPE	☐	SO_ESCAPE	SO_ESCAPE	CHAR	1	0	Specification of recipient type
11	MAILEXPR	☐	SO_SND_EX	SO_FLAG	CHAR	1	0	Send express
12	CUSTFUNC	☐	FUNCNAME	FUNCNAME	CHAR	30	0	Function name	TFDIR
13	CUSTPAR1	☐	CHAR40	CHAR40	CHAR	40	0	Character field of length 40
14	CUSTPAR2	☐	CHAR40	CHAR40	CHAR	40	0	Character field of length 40
15	XMSGID	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	T100A
16	XMSGNO	☐	MSGNO	MSGNR	CHAR	3	0	System Message Number	T100
17	XMSGV1	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
18	XMSGV2	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
19	XMSGV3	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
20	XMSGV4	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	TSMW04	CUSTFUNC	TFDIR	FUNCNAME	KEY	1	CN
2	TSMW04	EVTOBJTYPE	TOJTB	NAME	KEY	1	CN
3	TSMW04	XMSGID	T100A	ARBGB	KEY	1	CN
4	TSMW04	XMSGNO	T100	MSGNR	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	12A
