SAP ABAP Table TSMW02 (Actions in error: defaults)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-MW-SRV (Application Component) Flow / Services
⤷ SMW0 (Package) Middleware - Errorservice
⤷ CRM-MW-SRV (Application Component) Flow / Services
⤷ SMW0 (Package) Middleware - Errorservice
Basic Data
Table Category | TRANSP | Transparent table |

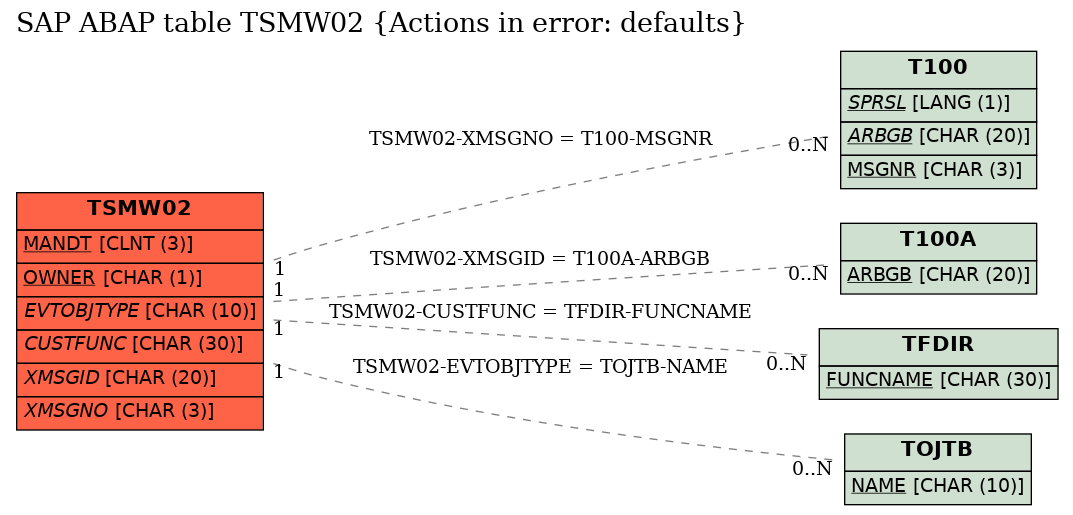

Transparent table | TSMW02 | Table Relationship Diagram |
Short Description | Actions in error: defaults |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | C | Customizing table, maintenance only by cust., not SAP import |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
2 | OWNER | SMWOWNER | SMWOWNER | CHAR | 1 | 0 | Owner of a table entry | ||
3 | ERRAC | SMWERRAC | SMWERRAC | CHAR | 5 | 0 | Error Action | ||
4 | ACTIVE | FLAG | FLAG | CHAR | 1 | 0 | General Flag | ||
5 | .INCLUDE | 0 | 0 | Error action parameters | |||||
6 | EVTOBJTYPE | SWO_OBJTYP | OJ_NAME | CHAR | 10 | 0 | Object Type | TOJTB | |
7 | EVTSEVENT | SWO_EVENT | SWC_ELEM | CHAR | 32 | 0 | Event | ||
8 | EVTFEVENT | SWO_EVENT | SWC_ELEM | CHAR | 32 | 0 | Event | ||
9 | MAILREC | CHAR255 | CHAR255 | CHAR | 255 | 0 | Char255 | ||
10 | MAILTYPE | SO_ESCAPE | SO_ESCAPE | CHAR | 1 | 0 | Specification of recipient type | ||
11 | MAILEXPR | SO_SND_EX | SO_FLAG | CHAR | 1 | 0 | Send express | ||
12 | CUSTFUNC | FUNCNAME | FUNCNAME | CHAR | 30 | 0 | Function name | TFDIR | |
13 | CUSTPAR1 | CHAR40 | CHAR40 | CHAR | 40 | 0 | Character field of length 40 | ||
14 | CUSTPAR2 | CHAR40 | CHAR40 | CHAR | 40 | 0 | Character field of length 40 | ||
15 | XMSGID | SYMSGID | ARBGB | CHAR | 20 | 0 | Message Class | T100A | |
16 | XMSGNO | MSGNO | MSGNR | CHAR | 3 | 0 | System Message Number | T100 | |
17 | XMSGV1 | SYMSGV | SYCHAR50 | CHAR | 50 | 0 | Message Variable | ||
18 | XMSGV2 | SYMSGV | SYCHAR50 | CHAR | 50 | 0 | Message Variable | ||
19 | XMSGV3 | SYMSGV | SYCHAR50 | CHAR | 50 | 0 | Message Variable | ||
20 | XMSGV4 | SYMSGV | SYCHAR50 | CHAR | 50 | 0 | Message Variable | ||
21 | XMSGRES | CHAR6 | CHAR6 | CHAR | 6 | 0 | Character field of length 6 |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | TSMW02 | CUSTFUNC | TFDIR | FUNCNAME | KEY | 1 | CN |
2 | TSMW02 | EVTOBJTYPE | TOJTB | NAME | KEY | 1 | CN |
3 | TSMW02 | XMSGID | T100A | ARBGB | KEY | 1 | CN |
4 | TSMW02 | XMSGNO | T100 | MSGNR | KEY | 1 | CN |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in |
