SAP ABAP Table TPDA_SESSIONS_SETTINGS (TPDA: Debug Sessions - Settings)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-ABA-LA (Application Component) Syntax, Compiler, Runtime
     ⤷ STPDA_DEBUGGER_SERVICES (Package) ABAP Debugger: Core Layer

Basic Data

Table Category	INTTAB	Structure

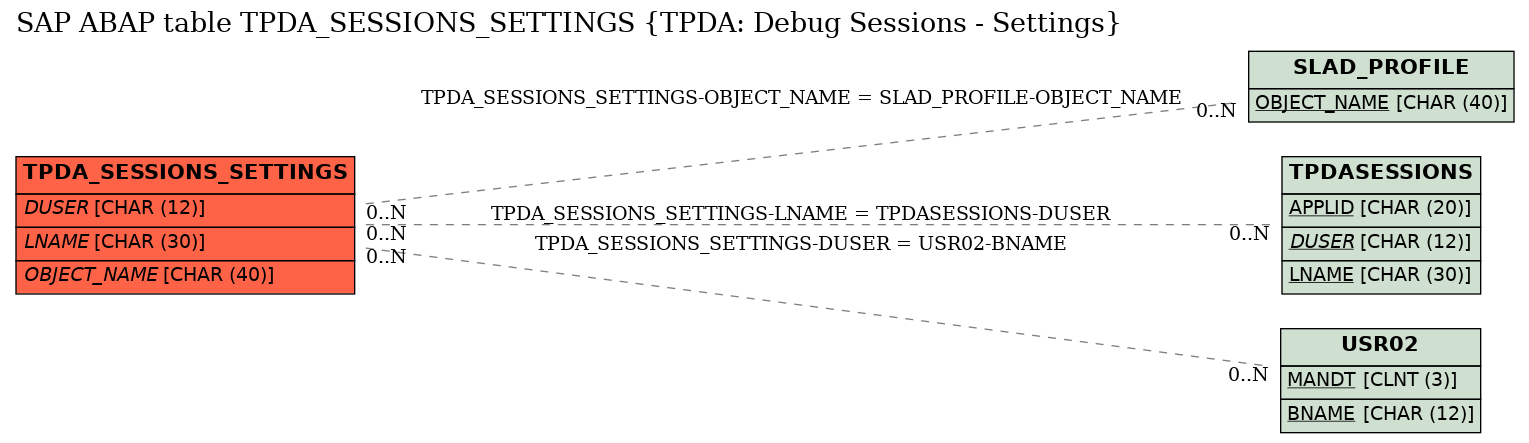

Structure	TPDA_SESSIONS_SETTINGS	Table Relationship Diagram
Short Description	TPDA: Debug Sessions - Settings

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	TPDA: Debug Sessions - Settings
2	.INCLUDE	☐				0	0	TPDA: Default Settings - Key
3	APPLID	☐	TPDA_FRAMEWORK_MEMBER_ID		CHAR	20	0	TPDA: ID of the Debugger Framework User
4	DUSER	☐	XUBNAME	XUBNAME	CHAR	12	0	User Name in User Master Record	USR02
5	LNAME	☐	TPDA_LAYOUT_NAME	CHAR30	CHAR	30	0	TPDA: Layout Name of User-Specific Debugger Layout	TPDASESSIONS
6	.INCLUDE	☐				0	0	Debugger Options
7	SYSTDBG	☐			INT1	3	0
8	SYNCBPS	☐			INT1	3	0
9	STOPONIMODEEND	☐			INT1	3	0
10	EXCCREATEOBJECT	☐			INT1	3	0
11	UPDDBG	☐			INT1	3	0
12	BTCDBG	☐			INT1	3	0
13	EMODESTACK	☐			INT1	3	0
14	ESI	☐			INT1	3	0
15	ACFLUSH	☐			INT1	3	0
16	SOAAC	☐			INT1	3	0
17	CHECKREADBINARY	☐			INT1	3	0
18	LAYERCONTROL	☐			INT1	3	0
19	DATATEMPERATURE	☐			INT1	3	0
20	.INCLUDE	☐				0	0	SLAD: Key Fields Object Set
21	OBJECT_NAME	☐	SLAD_PROFILE_NAME	SLAD_OBJECT_NAME	CHAR	40	0	SLAD: Profile Name	SLAD_PROFILE

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	TPDA_SESSIONS_SETTINGS	DUSER	USR02	BNAME
2	TPDA_SESSIONS_SETTINGS	LNAME	TPDASESSIONS	DUSER
3	TPDA_SESSIONS_SETTINGS	OBJECT_NAME	SLAD_PROFILE	OBJECT_NAME

History

Last changed by/on	SAP	20141013
SAP Release Created in	700
