SAP ABAP Table TCUWS_MAT_APO (Materials Batch-Specific Unit of Measure Planning & APO)
Hierarchy
☛
SAP_APPL (Software Component) Logistics and Accounting
⤷ LO-BM-AI (Application Component) Active Ingredient Management
⤷ VBAI_APO (Package) Active Ingredient Quantity Planning in APO - Basic Functions
⤷ LO-BM-AI (Application Component) Active Ingredient Management
⤷ VBAI_APO (Package) Active Ingredient Quantity Planning in APO - Basic Functions
Basic Data
Table Category | TRANSP | Transparent table |

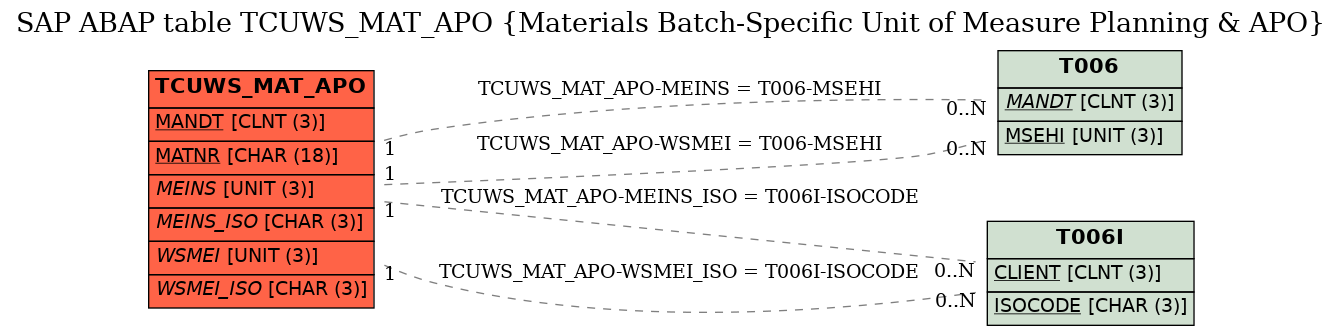

Transparent table | TCUWS_MAT_APO | Table Relationship Diagram |
Short Description | Materials Batch-Specific Unit of Measure Planning & APO |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | A | Application Table (Master- and Transaction Data) |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
2 | MATNR | MATNR | MATNR | CHAR | 18 | 0 | Material Number | * | |
3 | MEINS | MEINS | MEINS | UNIT | 3 | 0 | Base Unit of Measure | T006 | |
4 | MEINS_ISO | ISOCD_UNIT | ISOCD_UNIT | CHAR | 3 | 0 | ISO code for unit of measurement | T006I | |
5 | WSMEI | LRMEI_WS | MEINS | UNIT | 3 | 0 | Batch-specific matl unit of measure (proportion/prod. unit) | T006 | |
6 | WSMEI_ISO | ISOCD_UNIT | ISOCD_UNIT | CHAR | 3 | 0 | ISO code for unit of measurement | T006I | |
7 | KZDWS_MAT_APO | KZDWS_MAT_APO | XFELD | CHAR | 1 | 0 | Material for Batch-Specific UoM Planning in APO Is Active | ||
8 | LCHGD | LAEDA | DATUM | DATS | 8 | 0 | Date of Last Change | ||
9 | LCHGT | CPUTM | UZEIT | TIMS | 6 | 0 | Time of data entry | ||
10 | LCHGU | AENAM | USNAM | CHAR | 12 | 0 | Name of Person Who Changed Object |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | TCUWS_MAT_APO | MEINS | T006 | MSEHI | 1 | CN | |
2 | TCUWS_MAT_APO | MEINS_ISO | T006I | ISOCODE | 1 | CN | |
3 | TCUWS_MAT_APO | WSMEI | T006 | MSEHI | 1 | CN | |
4 | TCUWS_MAT_APO | WSMEI_ISO | T006I | ISOCODE | 1 | CN |
History
Last changed by/on | SAP | 20031212 |
SAP Release Created in |
