SAP ABAP Table TC74 (Digital Signature for PI Sheet)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ CA-DSG (Application Component) Digital Signature
     ⤷ CJ (Package) Application development R/3 PP-PI electronic signature

Basic Data

Table Category	TRANSP	Transparent table

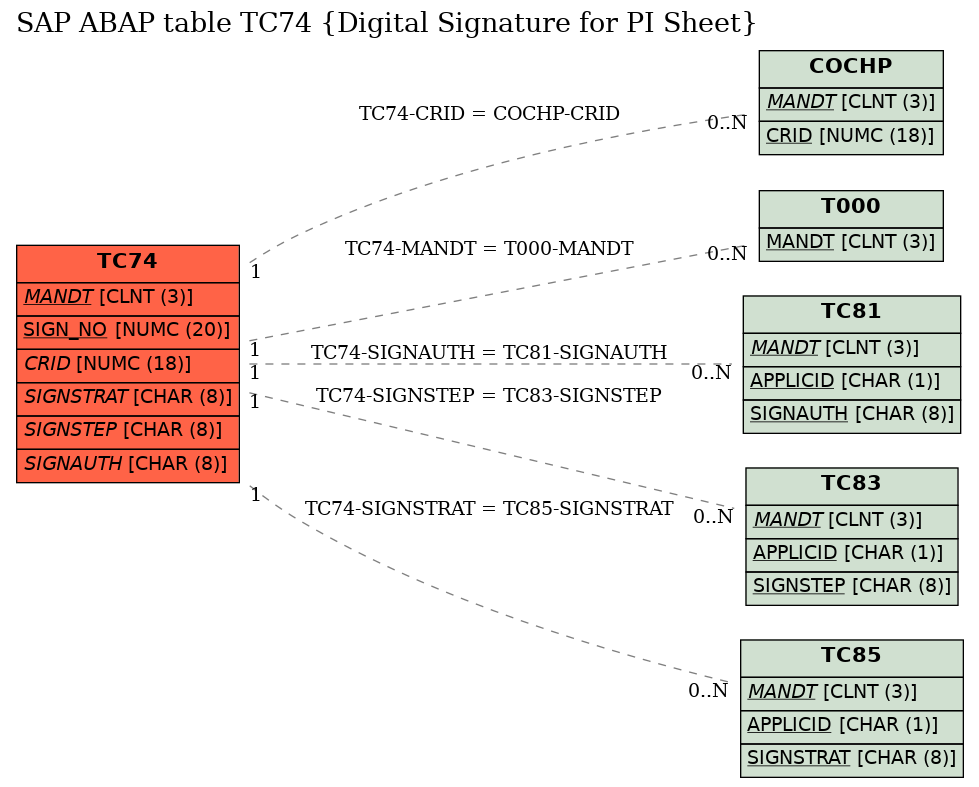

Transparent table	TC74	Table Relationship Diagram
Short Description	Digital Signature for PI Sheet

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	Key for Signature
2	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
3	SIGN_NO	☑	SIG_NO	SIG_NO	NUMC	20	0	Number of digital signature
4	.INCLUDE	☐				0	0	Attributes for Signature for PI Sheet
5	SIGN_OBJ	☐	SIG_OBJ	SIG_OBJ	CHAR	2	0	Signature Object
6	NUMB_CUR	☐	SIG_NUMCUR	SIG_NUMCUR	NUMC	2	0	Current signature made
7	NUMB_TOT	☐	SIG_NUMTOT	SIG_NUMCUR	NUMC	2	0	Total number of signatures to be made
8	CRID	☐	PI_CRID	PI_CRID	NUMC	18	0	PI sheet (process instruction sheet)	COCHP
9	FTNO	☐	FTNO	FTNO	NUMC	8	0	Sequence number of process instruction in recipe	*
10	FVNO	☐	FVNO	NUMC4	NUMC	4	0	Sequence number of proc.instruction characteristic in recipe
11	TAB_MELD	☐	CO_SPALTE	CO_SPALTE	INT1	3	0	Logical Column: Corresponds to Message (Message Category)
12	TAB_ZEILE	☐	CO_ZEILE	CO_ZEILE	NUMC	3	0	Table line in the PI sheet
13	SIGN_COUNT	☐	CO_SIGNCNT	CO_SIGNCNT	NUMC	2	0	Signature counter
14	ATWRT	☐	ATWRT	ATWRT	CHAR	30	0	Characteristic Value
15	.INCLUDE	☐				0	0	Attributes for Multiple-Signature Principle
16	SIGNSTRAT	☐	SIGNSTRAT	SIGNSTRAT	CHAR	8	0	Signature Strategy	TC85
17	COUNT_STEP	☐	SIGNCOUN	SIGNCOUN	NUMC	5	0	Internal Counter for Strategy/Individual Signature Assignmnt
18	SIGNSTEP	☐	SIGNSTEP	SIGNSTEP	CHAR	8	0	Individual signature	TC83
19	SIGNAUTH	☐	SIGNAUTH	SIGNAUTH	CHAR	8	0	Authorization Group / Role for Digital Signatures	TC81
20	FLG_EOSP	☐	FLAG	FLAG	CHAR	1	0	General Flag
21	FTNR	☐	R_FTNR	VORNR	CHAR	4	0	Line Number of Process Instruction
22	FVNR	☐	R_FVNR	VORNR	CHAR	4	0	Line Number of Process Instruction Characteristic

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	TC74	CRID	COCHP	CRID	KEY	1	CN
2	TC74	MANDT	T000	MANDT	KEY	1	CN
3	TC74	SIGNAUTH	TC81	SIGNAUTH	KEY	1	CN
4	TC74	SIGNSTEP	TC83	SIGNSTEP	KEY	1	CN
5	TC74	SIGNSTRAT	TC85	SIGNSTRAT	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
