SAP ABAP Table SXMSTRC_DAT (XMS: Trace Data)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-XI-IS-IEN (Application Component) Integration Engine
     ⤷ SXMSF (Package) XI: Integration Engine Runtime

Basic Data

Table Category	TRANSP	Transparent table

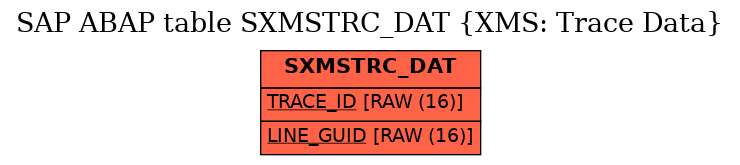

Transparent table	SXMSTRC_DAT	Table Relationship Diagram
Short Description	XMS: Trace Data

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	Trace: Key Structure for Application Data
2	TRACE_ID	☑	SWFTRACEID	SWFTRACEID	RAW	16	0	Unique ID in Trace
3	LINE_GUID	☑	SWFTRCLINEID	SWFTRACEID	RAW	16	0	Unique ID of a Trace Data Line
4	.INCLUDE	☐				0	0	Trace: Generic Part of a Trace-Data-Entry
5	TIMESTAMP	☐	TIMESTAMPL	TZNTSTMPL	DEC	21	7	UTC Time Stamp in Long Form (YYYYMMDDhhmmssmmmuuun)
6	ROLL_AREA_ID	☐	SWFTRCROLLID	SWFTRACEID	RAW	16	0	Roll Area ID
7	ENTRYTYPE	☐	SWFTRC_ETYP	SWFTRC_ETYP	CHAR	4	0	Trace: Type of Entry
8	.INCLUDE	☐				0	0	Trace: Definition of a Logical Date/Time
9	TRC_PCK	☐	SWFTRC_PCK	SWFTRC_PCK	CHAR	30	0	Trace: (Software) Package Name	*
10	TRC_EVT	☐	SWFTRC_EVT		CHAR	12	0	Trace: Logical Time/Date Within a Package
11	TRC_PNT	☐	SWFTRC_PNT	CHAR12	CHAR	12	0	Trace: Physical Trace Point (Code Reference)
12	SY_UNAME	☐	SWFTRCUSER		CHAR	12	0	User
13	PREVIOUS_LINE	☐	SWFTRCPREVIOUS	SWFTRACEID	RAW	16	0	Link to Trace Data Line
14	TRACE_LINK	☐	SWFTRCLINK	SWFTRACEID	RAW	16	0	Link to a Physical Trace
15	HAS_CONTAINER	☐	SWFTRCCONTFLAG	XFLAG	CHAR	1	0	Additional data exists
16	TRC_COMMENT	☐	SWFTRCCOMMENT		STRG	0	0	Trace Data Line Description
17	.INCLUDE	☐				0	0	XMS: Trace Context
18	.INCLUDE	☐				0	0	XMS: Enhancement Structure for Trace Filter
19	MSGGUID	☐	SXMSMGUID	SYSUUID	RAW	16	0	XI: Message ID
20	PID	☐	SXMSPID	SXMSPID	CHAR	40	0	Integration Engine: Pipeline ID	*
21	TRACE_USER	☐	SYUNAME	SYCHAR12	CHAR	12	0	User Name
22	AREA	☐	SXMSAREA	SXMSAREA	CHAR	10	0	Integration Engine: Sub-area (Configuration)
23	.INCLUDE	☐				0	0	XMS: Additional Fields for Trace
24	TRC_STATE	☐	SXMSTRC_STATE	SXMSTRC_STATE	NUMC	3	0	Trace Status
25	TRC_STATE_EXPL	☐	SXMSTRC_STATE_EXPL	SXMSTRC_STATE_EXPL	CHAR	30	0	Description of Trace Status

History

Last changed by/on	SAP	20130604
SAP Release Created in	710
