SAP ABAP Table SWFWSPPORT (WebFlow XML Cache: Web Service Ports)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ BC-BMT-WFM (Application Component) SAP Business Workflow
⤷ SWF_HTTP (Package) Incorporation of External Services with HTTP into a Workflow
⤷ BC-BMT-WFM (Application Component) SAP Business Workflow
⤷ SWF_HTTP (Package) Incorporation of External Services with HTTP into a Workflow
Basic Data
Table Category | TRANSP | Transparent table |

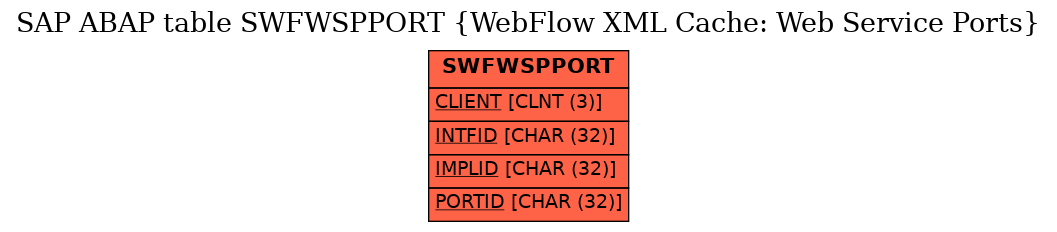

Transparent table | SWFWSPPORT | Table Relationship Diagram |
Short Description | WebFlow XML Cache: Web Service Ports |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | C | Customizing table, maintenance only by cust., not SAP import |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | CLIENT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
2 | INTFID | SWFINTFID | SYSUUID_C | CHAR | 32 | 0 | Interface Definition ID | ||
3 | IMPLID | SWFIMPLID | SYSUUID_C | CHAR | 32 | 0 | ID of an Implementation Definition | ||
4 | PORTID | SWFPORTID | SYSUUID_C | CHAR | 32 | 0 | Service Port ID | ||
5 | .INCLUDE | 0 | 0 | Port Meta Data for Web Services | |||||
6 | SAPNAME | SWFWSPOSAPNAM | SWFWSPOSAPNAM | CHAR | 120 | 0 | SAP Name of a Service Port | ||
7 | NAME | SWFWSPONAM | SWFWSPONAM | CHAR | 120 | 0 | Name of a Service Port | ||
8 | ADDRESS | SWFWSADDR | SWFWSADDR | CHAR | 255 | 0 | Port Address | ||
9 | .INCLUDE | 0 | 0 | Time Stamps for Web Service Cache | |||||
10 | IMPORT_TS | TIMESTAMP | TZNTSTMPS | DEC | 15 | 0 | UTC Time Stamp in Short Form (YYYYMMDDhhmmss) | ||
11 | CHANGE_TS | TIMESTAMP | TZNTSTMPS | DEC | 15 | 0 | UTC Time Stamp in Short Form (YYYYMMDDhhmmss) | ||
12 | SADDRESS | SWFWSSADDR | SWFWSSADDR | STRG | 0 | 0 | String Address of a Service Port | ||
13 | .INCLUDE | 0 | 0 | User | |||||
14 | IMPORT_USR | SYUNAME | SYCHAR12 | CHAR | 12 | 0 | User Name | ||
15 | CHANGE_USR | SYUNAME | SYCHAR12 | CHAR | 12 | 0 | User Name |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in | 620 |
