SAP ABAP Table SMOUIMAP (UIMAP)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MSA (Application Component) Mobile Sales
     ⤷ SMO3 (Package) Consolidated Database

Basic Data

Table Category	TRANSP	Transparent table

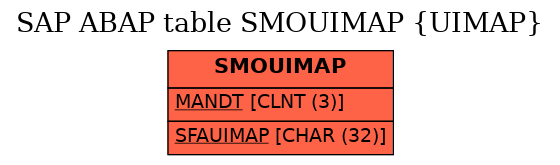

Transparent table	SMOUIMAP	Table Relationship Diagram
Short Description	UIMAP

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	SFAUIMAP	☑	SMO_SFAUIM	SMO_GUID	CHAR	32	0	SFA Key for SMOUIMAP
3	TNAME	☐	SMO_TRNAME	SMO_TXT50	CHAR	50	0	Transaction name
4	BCNAME	☐	SMO_BCNAME	SMO_TXT50	CHAR	50	0	Name of the Business Component in the UI
5	VIEWNAME	☐	SMO_VIEWNM	SMO_TXT50	CHAR	50	0	Name of the tileset that will be opened via the hyperlink
6	TRANSDESC	☐	SMO_TRNSDC	SMO_TXT4	CHAR	4	0	Short code of the Business Entity (e.g. OPP, CAP etc).
7	PARAMNAME	☐	SMO_PARNM	SMO_TXT50	CHAR	50	0	Parameter name expected by the called tileset
8	BONAME	☐	SMO_BONAME	SMO_TXT50	CHAR	50	0	Name of the corresponding Business Object
9	FIELDNAME	☐	SMO_FIELD	SMO_TXT50	CHAR	50	0	Field Name
10	SYSKEYREQ	☐	SMO_SYSREQ	SMO_LOGICL	CHAR	1	0	If true pass only the unique key of the business object
11	.INCLUDE	☐				0	0	Communication Fields for Mobile Sales/Service
12	TR_USER	☐	SMO_TR_USR	SMO_TR_USR	CHAR	32	0	Transaction User
13	TR_ID	☐	SMO_TR_ID	SMO_TR_ID	CHAR	32	0	Transaction Identifier
14	TR_STATUS	☐	SMO_TR_STS	SMO_TR_STS	CHAR	4	0	Status of Transaction
15	TIMESTAMP	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
16	DELETED	☐	SMO_DELETD	SMO_DELETD	CHAR	1	0	Mobile Sales Deleted
17	TR_ROOTID	☐	SMO_RTGUID	SMO_GUID	CHAR	32	0	Identifier of BDoc Root object

History

Last changed by/on	SAP	20030214
SAP Release Created in
