SAP ABAP Table SMOFUPLMAPCUST (Site specific mapping module for the load CRM to R/3 backend)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-ADP (Application Component) Middleware Adapter
     ⤷ SMOF (Package) R/3 Adapter Service

Basic Data

Table Category	TRANSP	Transparent table

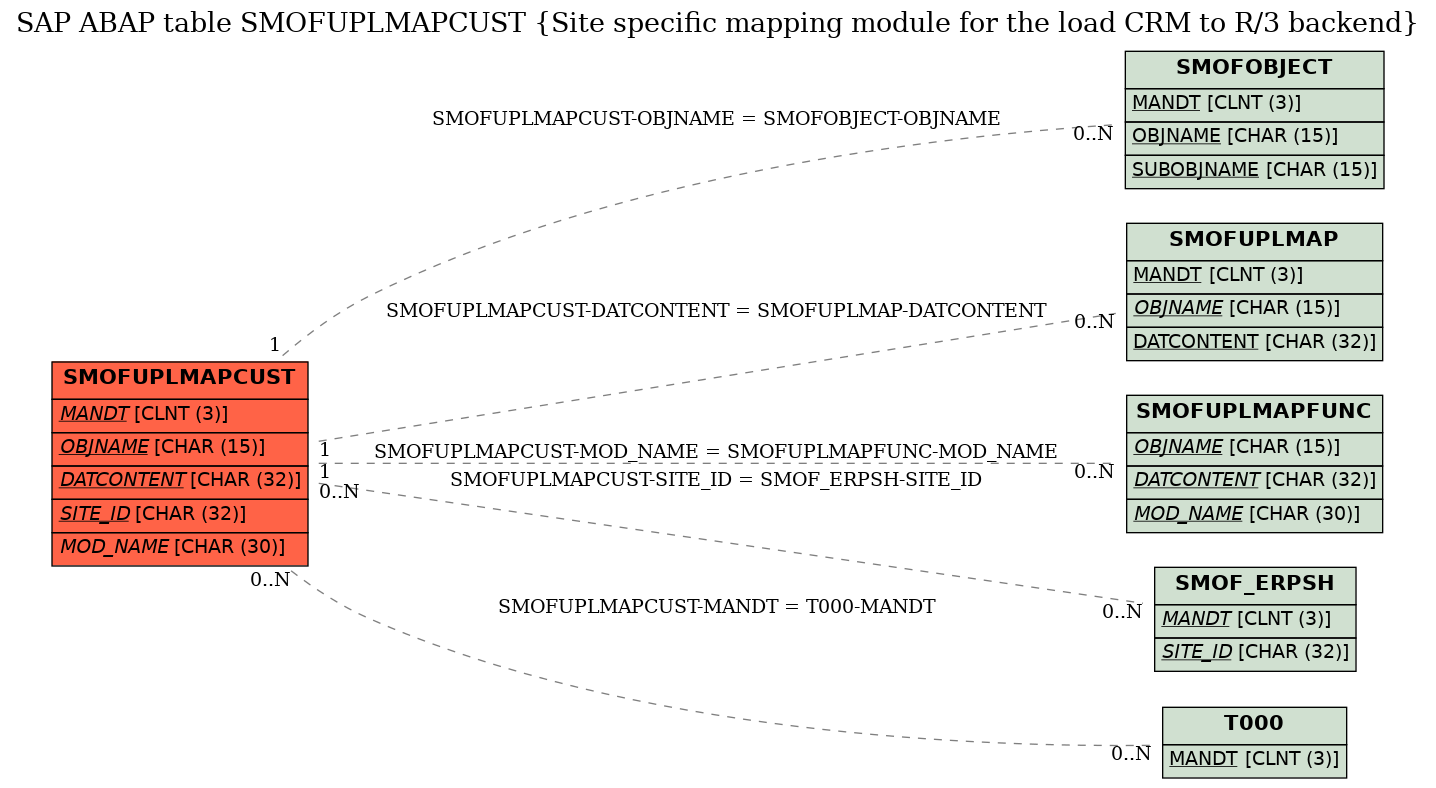

Transparent table	SMOFUPLMAPCUST	Table Relationship Diagram
Short Description	Site specific mapping module for the load CRM to R/3 backend

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	OBJNAME	☑	SMO_OBJNAM	CHAR15	CHAR	15	0	Adapter Object name	SMOFOBJECT
3	DATCONTENT	☑	DATCONTENT	CRMCHAR32	CHAR	32	0	Indication of the data content of the BDoc message	SMOFUPLMAP
4	SITE_ID	☑	SMO_SITEID	SMO_SITEID	CHAR	32	0	Site ID	SMOF_ERPSH
5	MOD_NAME	☐	FUNCNAME	FUNCNAME	CHAR	30	0	Function name	SMOFUPLMAPFUNC
6	INACTIVE	☐	XFELD	XFELD	CHAR	1	0	Checkbox

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SMOFUPLMAPCUST	DATCONTENT	SMOFUPLMAP	DATCONTENT	KEY	1	CN
2	SMOFUPLMAPCUST	MANDT	T000	MANDT	KEY
3	SMOFUPLMAPCUST	MOD_NAME	SMOFUPLMAPFUNC	MOD_NAME		1	CN
4	SMOFUPLMAPCUST	OBJNAME	SMOFOBJECT	OBJNAME	KEY	1	CN
5	SMOFUPLMAPCUST	SITE_ID	SMOF_ERPSH	SITE_ID

History

Last changed by/on	SAP	20030110
SAP Release Created in	400
