SAP ABAP Table SMOFREQTAB (Filter criteria for CRM-Request)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-ADP (Application Component) Middleware Adapter
     ⤷ SMOF (Package) R/3 Adapter Service

Basic Data

Table Category	TRANSP	Transparent table

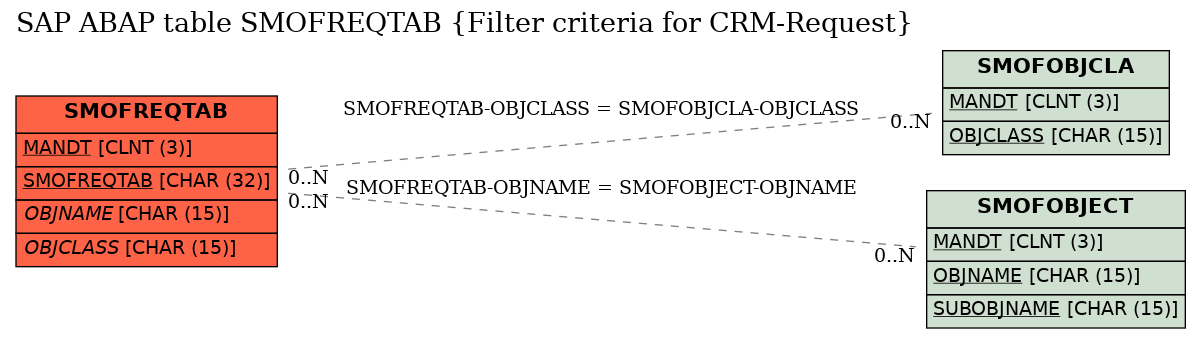

Transparent table	SMOFREQTAB	Table Relationship Diagram
Short Description	Filter criteria for CRM-Request

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	SMOFREQTAB	☑	SMOF_REQ	SMOG_GUID	CHAR	32	0	Request key
3	OBJNAME	☐	SMO_OBJNAM	CHAR15	CHAR	15	0	Adapter Object name	SMOFOBJECT
4	SUBOBJNAME	☐	SMO_SUBOBJ	CHAR15	CHAR	15	0	Sub Object Name
5	OBJCLASS	☐	SMO_OBJCLA	CHAR15	CHAR	15	0	Object class	SMOFOBJCLA
6	TABLENAME	☐	SMOFTABNAM	CHAR30	CHAR	30	0	Table name of length 30
7	FIELD	☐	SMOFFLDNAM	CHAR30	CHAR	30	0	Fieldname of length 30
8	SIGN	☐	SMOFSIGNRA	SMOFSIGNRA	CHAR	1	0	Operator SIGN for selection
9	OPT	☐	SMOFOPTRAN	SMOFOPTRAN	CHAR	2	0	Operator OPTION for selection (according Ranges table)
10	LOW	☐	SMOFLOWRAN	CHAR40	CHAR	40	0	Parameter LOW (according to Ranges Table)
11	HIGH	☐	SMOFHIGHRA	CHAR40	CHAR	40	0	Parameter HIGH (according to Ranges-Table)
12	LOG_UNIT	☐	SMOFUNIT	SMOG_GUID	CHAR	32	0	Definition of a logical request unit
13	TRIES	☐	SMOTRYNO	NUM02	NUMC	2	0	Number of started Download tries
14	STATUS	☐	SMOFREQSTA	SMOFREQSTA	CHAR	1	0	Status of a Request
15	REQTYPE	☐	SMOFREQTYP	SMOFREQTYP	CHAR	1	0	Type of request: Request for download <> Request for compare
16	INACTIVE	☐	XFELD	XFELD	CHAR	1	0	Checkbox

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SMOFREQTAB	OBJCLASS	SMOFOBJCLA	OBJCLASS	REF
2	SMOFREQTAB	OBJNAME	SMOFOBJECT	OBJNAME

History

Last changed by/on	SAP	20010619
SAP Release Created in
