SAP ABAP Table SMOFFUNCTAB_PAR (Parameter table for SMOFFUNCTAB entries)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-MW (Application Component) Middleware
⤷ CRM_PROXY (Package) Package for Proxy Framework (synchronous calls to backends)
⤷ CRM-MW (Application Component) Middleware
⤷ CRM_PROXY (Package) Package for Proxy Framework (synchronous calls to backends)
Basic Data
Table Category | TRANSP | Transparent table |

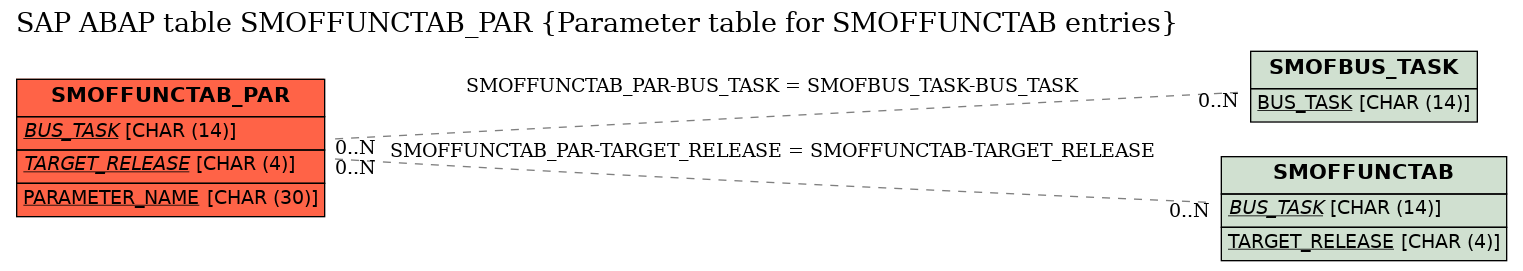

Transparent table | SMOFFUNCTAB_PAR | Table Relationship Diagram |
Short Description | Parameter table for SMOFFUNCTAB entries |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | E | Control table, SAP and customer have separate key areas |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | BUS_TASK | SMOFBUSTASK | CHAR14 | CHAR | 14 | 0 | Business Task | SMOFBUS_TASK | |
2 | TARGET_RELEASE | TARGET_RELEASE | TARGET_RELEASE | CHAR | 4 | 0 | Release of backend system | SMOFFUNCTAB | |
3 | PARAMETER_NAME | PARAMETER | LPARAMETER | CHAR | 30 | 0 | Parameter Name | ||
4 | KIND | SMOF_PARTYPE | SMOF_PARTYPE | NUMC | 2 | 0 | Parameter type | ||
5 | DBFIELD | LIKEFIELD | LIKEFIELD | CHAR | 26 | 0 | Reference field/structure of a parameter | ||
6 | DEFAULT_VALUE | DEFAULT__3 | DEFAULT__3 | CHAR | 21 | 0 | Default value for import parameter | ||
7 | TYPES | CRM_PROXY_TYPE | X | CHAR | 1 | 0 | Reference Structure is an ABAP/4 Type | ||
8 | OPTIONAL | CRM_PROXY_OPTI | X | CHAR | 1 | 0 | Optional Parameters | ||
9 | REFERENCE | CRM_PROXY_REFE | X | CHAR | 1 | 0 | Call by Reference | ||
10 | CHANGING | CRM_PROXY_CHAN | X | CHAR | 1 | 0 | Changing a Parameter Allowed | ||
11 | TYP | RS38L_TYP | RS38L_TYP | CHAR | 132 | 0 | Associated Type of an Interface Parameter | ||
12 | CLASS | CRM_PROXY_CLAS | X | CHAR | 1 | 0 | Reference to a Class | ||
13 | REF_CLASS | CRM_PROXY_CLAS | X | CHAR | 1 | 0 | Reference to a Class | ||
14 | LINE_OF | CRM_PROXY_LINO | X | CHAR | 1 | 0 | Parameter Is 'LINE OF' Table Type | ||
15 | TABLE_OF | CRM_PROXY_TABO | X | CHAR | 1 | 0 | Parameter Is Reference Type 'TABLE OF' | ||
16 | TABLE_TYPE | RS38L_TYP | RS38L_TYP | CHAR | 132 | 0 | Associated Type of an Interface Parameter | ||
17 | ACTIVE | SMARK | X | CHAR | 1 | 0 | Flag | ||
18 | CRM_ONLY | SMARK | X | CHAR | 1 | 0 | Flag |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | SMOFFUNCTAB_PAR | BUS_TASK | SMOFBUS_TASK | BUS_TASK | |||
2 | SMOFFUNCTAB_PAR | TARGET_RELEASE | SMOFFUNCTAB | TARGET_RELEASE |
History
Last changed by/on | SAP | 20050425 |
SAP Release Created in | 100 |
