SAP ABAP Table SMO8ERRSG (Flow Service Error Segments)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-SRV (Application Component) Flow / Services
     ⤷ SMO8 (Package) Flow Control I

Basic Data

Table Category	TRANSP	Transparent table

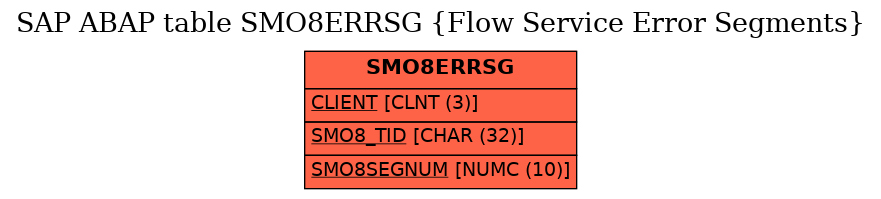

Transparent table	SMO8ERRSG	Table Relationship Diagram
Short Description	Flow Service Error Segments

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	SMO8_TID	☑	SMOG_TID	SMOG_GUID	CHAR	32	0	BDoc Message ID
3	SMO8SEGNUM	☑	SMO8ERRSGN	SMO8ERRSGN	NUMC	10	0	Flow Control BDoc Error Segments: Segment number
4	SMO8FTSTPN	☐	SMO8FTSTPN	SMO8FTSTP	NUMC	5	0	Flow Control Trace: Step number in flow process
5	.INCLUDE	☐				0	0	Flow Service Error Segments: Data
6	SMOG_MERR	☐	SMW0_MERR	SMOG_GUID	CHAR	32	0	Error GUID
7	SEGM_ERR	☐	SMOG_ERRS	SMOG_INT1	INT1	3	0	Segment or transaction error (0=transaction;1=segment)
8	TR_SNAME	☐	SMOG_LNAME	SMOG_CHR30	CHAR	30	0	Long name of Bdoc type
9	ERR_DATE	☐	SMOG_DATE	SMOG_DATE	DATS	8	0	Date
10	ERR_TIME	☐	SMOG_TIME	SMOG_TIME	TIMS	6	0	Time
11	ERR_KEY	☐	SMOG_PKERR	SMOG_GUID	CHAR	32	0	Primary key of segment row, which caused the error
12	ERR_INFO	☐	SMOG_INFO	SMOG_TXT	CHAR	255	0	Additional error Information
13	MSGTYPE	☐	BAPI_MTYPE	SYCHAR01	CHAR	1	0	Message type: S Success, E Error, W Warning, I Info, A Abort
14	MSGID	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
15	MSGNUMBER	☐	SYMSGNO	SYMSGNO	NUMC	3	0	Message Number
16	MESSAGE	☐	BAPI_MSG	TEXT220	CHAR	220	0	Message Text
17	LOG_NO	☐	BALOGNR	BALOGNR	CHAR	20	0	Application log: log number	*
18	LOG_MSG_NO	☐	BALMNR	BALMNR	NUMC	6	0	Application log: Internal message serial number	*
19	MESSAGE_V1	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
20	MESSAGE_V2	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
21	MESSAGE_V3	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
22	MESSAGE_V4	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
23	MSGPARAM	☐	BAPI_PARAM	SWC_ELEM	CHAR	32	0	Parameter Name
24	MSGROW	☐	BAPI_LINE	INT4	INT4	10	0	Lines in parameter
25	MSGFIELD	☐	BAPI_FLD	FDNAME	CHAR	30	0	Field in parameter	*
26	MSGSYSTEM	☐	BAPILOGSYS	LOGSYS	CHAR	10	0	Logical system from which message originates	*

History

Last changed by/on	SAP	20130604
SAP Release Created in
