SAP ABAP Table SMO8_TMSG (Middleware BDoc Header)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-SRV (Application Component) Flow / Services
     ⤷ SMO8 (Package) Flow Control I

Basic Data

Table Category	TRANSP	Transparent table

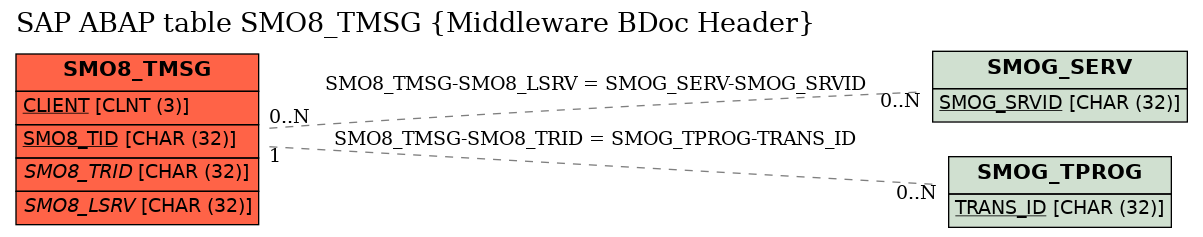

Transparent table	SMO8_TMSG	Table Relationship Diagram
Short Description	Middleware BDoc Header

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	SMO8_TID	☑	SMO8_TID	SMO8_TID	CHAR	32	0	BDoc ID
3	SMO8_TRID	☐	SMOG_TRID	SMOG_TRID	CHAR	32	0	BDoc type ID (base class ID)	SMOG_TPROG
4	VERSKEY	☐	SMOG_TRAN	SMOG_GUID	CHAR	32	0	Transaction Key (GUID)
5	SMO8_DEL	☐	SMO8_DEL	SMO8_DEL	CHAR	1	0	Deletion flag
6	SMO8_TRACE	☐	SMOG_TRACE	SMOG_FLAG	CHAR	1	0	Trace active Flag
7	SMO8_TRCID	☐	SMO8_TRCID	SMO8_TRCID	CHAR	15	0	Trace ID
8	SMO8_ASTP	☐	SMO8_ASTP	SMO8_ASTP	CHAR	1	0	Delay assynchronous processing of tRFC calls for test
9	SMO8_TSTMD	☐	SMO8_TSTMD	SMO8_TSTMD	CHAR	3	0	Test Mode
10	SMO8_LSRV	☐	SMO8_LSRV	SMOG_SRVID	CHAR	32	0	Last Service reached	SMOG_SERV
11	.INCLUDE	☐				0	0	BAPIRET2 with modified fieldnames
12	TYPE_	☐	BAPI_MTYPE	SYCHAR01	CHAR	1	0	Message type: S Success, E Error, W Warning, I Info, A Abort
13	ID_	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
14	NUMBER_	☐	SYMSGNO	SYMSGNO	NUMC	3	0	Message Number
15	MESSAGE_	☐	BAPI_MSG	TEXT220	CHAR	220	0	Message Text
16	LOGNO_	☐	BALOGNR	BALOGNR	CHAR	20	0	Application log: log number	*
17	LOG_MSGNO_	☐	BALMNR	BALMNR	NUMC	6	0	Application log: Internal message serial number	*
18	MSG_V1_	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
19	MSG_V2_	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
20	MSG_V3_	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
21	MSG_V4_	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
22	PARAMETER_	☐	BAPI_PARAM	SWC_ELEM	CHAR	32	0	Parameter Name
23	ROW_	☐	BAPI_LINE	INT4	INT4	10	0	Lines in parameter
24	FIELD_	☐	BAPI_FLD	FDNAME	CHAR	30	0	Field in parameter	*
25	SYSTEM_	☐	BAPILOGSYS	LOGSYS	CHAR	10	0	Logical system from which message originates	*
26	NEXTSTEP	☐	SMO8_NSTEP	SMOG_SRVID	CHAR	32	0	Next Flow Step	*
27	SYS_USER	☐	SYUNAME	SYCHAR12	CHAR	12	0	User Name
28	TR_USER	☐	SMOG_CRUSR	SMOG_GUID	CHAR	32	0	User ID (Creator)
29	CREATE_LNG	☐	SMOG_LANG	SMOG_LANG	CHAR	2	0	Language flag
30	CODEPAGE	☐	SMOG_CP	SMOG_NUM4	NUMC	4	0	Code page
31	TR_CLIENT	☐	SYMANDT	MANDT	CLNT	3	0	Client ID	*
32	SITE_ID	☐	SMO_SITEID	SMO_SITEID	CHAR	32	0	Site ID	*
33	QNAME	☐	SMOG_QNAME	SMOG_CHR32	CHAR	32	0	Queue name to be used for message
34	SND_DATE	☐	SMOG_SDDAT	DATUM	DATS	8	0	Send date
35	SND_TIME	☐	SMOG_SDTIM	TIME	TIMS	6	0	Send time
36	MSG_TYPE	☐	SMOG_MTYPE	SMW_MTYPE	CHAR	1	0	Message validation type (C,E,T,I,X)
37	.INCLUDE	☐				0	0	Flow Control Server Header extension for error handling
38	ERHRESOLTN	☐	SMWCNFLRES	SMWCNFLRES	CHAR	6	0	Action for Conflict Resolution of Flow Control
39	ERHMSGTYPE	☐	BAPI_MTYPE	SYCHAR01	CHAR	1	0	Message type: S Success, E Error, W Warning, I Info, A Abort
40	ERHMSGID	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
41	ERHMSGNO	☐	SYMSGNO	SYMSGNO	NUMC	3	0	Message Number
42	ROOT_ID	☐	SMW0_ROOT	SMOG_GUID	CHAR	32	0	Root ID
43	ROOT_OBJ	☐	SMW0_ROBJ	CHAR30	CHAR	30	0	Root Object
44	UPD_TIME	☐	SMWUPDTIME	TIME	TIMS	6	0	Update time
45	UPD_DATE	☐	SMWUPDDATE	DATS	DATS	8	0	Update date

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SMO8_TMSG	SMO8_LSRV	SMOG_SERV	SMOG_SRVID
2	SMO8_TMSG	SMO8_TRID	SMOG_TPROG	TRANS_ID		1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in
