SAP ABAP Table SMO8_ROUTE (Flow Definition and Routing)
Hierarchy
☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-SRV (Application Component) Flow / Services
     ⤷ SMO8 (Package) Flow Control I
Basic Data
Table Category TRANSP    Transparent table

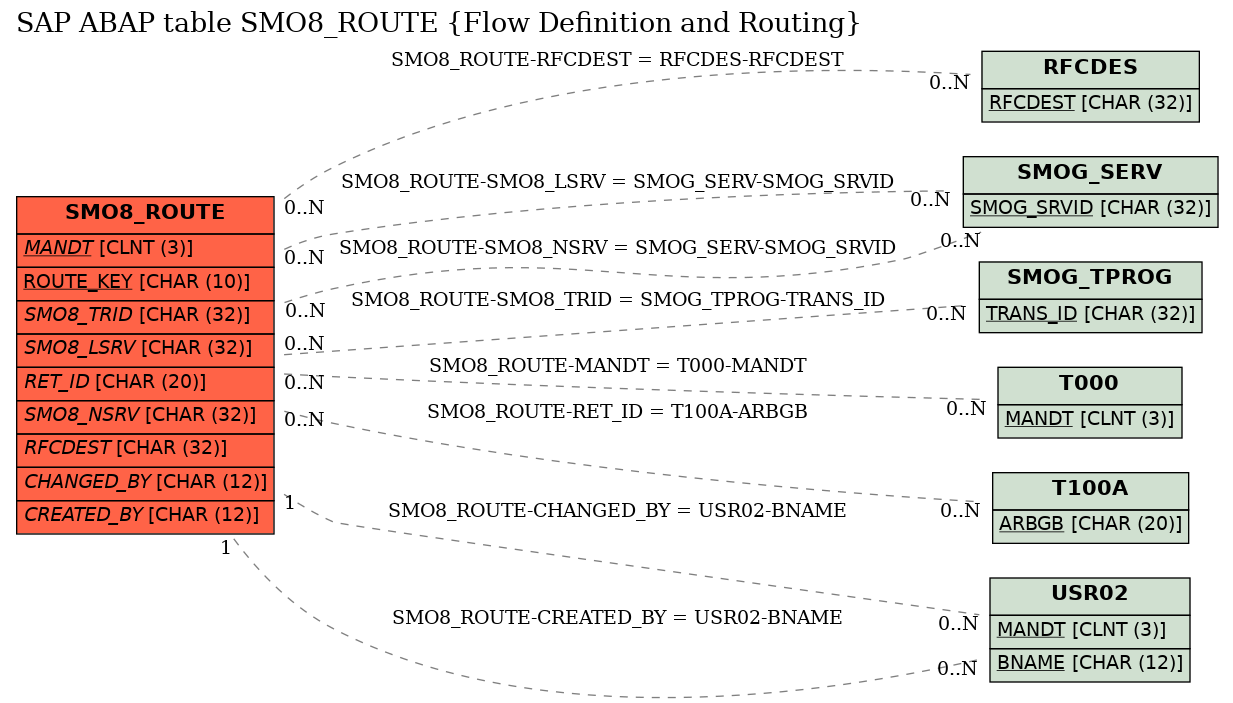

Transparent table SMO8_ROUTE   Table Relationship Diagram
Short Description Flow Definition and Routing
Delivery and Maintenance
Pool/cluster
Delivery Class E   Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance X   Display/Maintenance Allowed
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 MANDT MANDT MANDT CLNT 3   0   Client T000
2 ROUTE_KEY SMO8_KEY10 SMO8_KEY10 CHAR 10   0   Table key field
3 VER1 SMO8_VER SMO8_VER CHAR 10   0   Flow Routing Version 1
4 VER2 SMO8_VER2 SMO8_VER CHAR 10   0   Flow Routing Version 2
5 SMO8_TRID SMOG_TRID SMOG_TRID CHAR 32   0   BDoc type ID (base class ID) SMOG_TPROG
6 SMO8_CMT SMO8_CMT80 SMO8_CMT80 CHAR 80   0   Comment, 80 digits
7 SMO8_STEP SMO8_STEP SMO8_STEP CHAR 15   0   Flow Control Step
8 SMO8_LSRV SMO8_LSRV SMOG_SRVID CHAR 32   0   Last Service reached SMOG_SERV
9 RET_TYPE SMO8_MTYPE SMO8_MTYPE CHAR 10   0   Message Type / BAPI Return
10 RET_ID SYMSGID ARBGB CHAR 20   0   Message Class T100A
11 RET_NUMBER SMO8_MNUM SMO8_MNUM CHAR 10   0   Message number / BAPI return
12 SMO8_NSRV SMOG_SRVID SMOG_SRVID CHAR 32   0   Service ID SMOG_SERV
13 RFCDEST RFCDEST RFCDEST CHAR 32   0   Logical Destination (Specified in Function Call) RFCDES
14 IN_LINE SMO8_INLN SYCHAR01 CHAR 1   0   Inline Flag
15 INACTIVE SMO8_FLAG SMO8_FLAG CHAR 1   0   Flag
16 CHANGED_BY SMO_UNAMM XUBNAME CHAR 12   0   Changed by user USR02
17 CHANGED_AT SMO_MODIFY SMO_DATE DATS 8   0   Date last Modified
18 CREATED_BY SMO_UNAMC XUBNAME CHAR 12   0   Created by user USR02
19 CREATED_AT SMO_CREATE SMO_DATE DATS 8   0   Date of Creation.
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 SMO8_ROUTE CHANGED_BY USR02 BNAME KEY 1 CN
2 SMO8_ROUTE CREATED_BY USR02 BNAME KEY 1 CN
3 SMO8_ROUTE MANDT T000 MANDT
4 SMO8_ROUTE RET_ID T100A ARBGB
5 SMO8_ROUTE RFCDEST RFCDES RFCDEST
6 SMO8_ROUTE SMO8_LSRV SMOG_SERV SMOG_SRVID
7 SMO8_ROUTE SMO8_NSRV SMOG_SERV SMOG_SRVID
8 SMO8_ROUTE SMO8_TRID SMOG_TPROG TRANS_ID
History
Last changed by/on SAP  20130604
SAP Release Created in
