SAP ABAP Table SMO5_MSGBUFFER (Buffer - Unicode)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-CCO (Application Component) Client Console
     ⤷ SMO5 (Package) Client Console / System Monitoring

Basic Data

Table Category	TRANSP	Transparent table

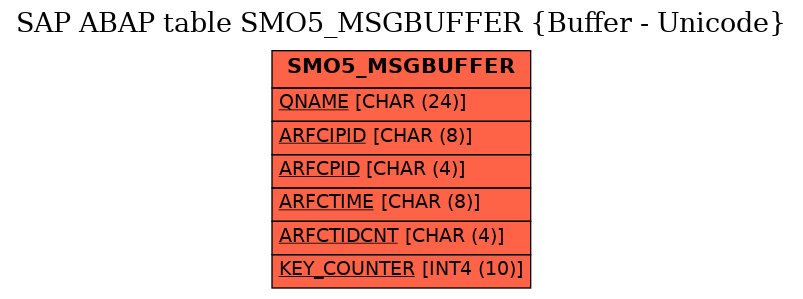

Transparent table	SMO5_MSGBUFFER	Table Relationship Diagram
Short Description	Buffer - Unicode

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	QNAME	☑	TRFCQNAM	TRFCQNAM	CHAR	24	0	Name of tRFC Queue
2	.INCLUDE	☑				0	0	Unique Transaction ID (LUW -> COMMIT WORK)
3	ARFCIPID	☑	ARFCIPID	ARFCIPID	CHAR	8	0	Host ID (IP ID
4	ARFCPID	☑	ARFCPID	ARFCPID	CHAR	4	0	Process ID
5	ARFCTIME	☑	ARFCTIME	ARFCTIME	CHAR	8	0	Time Stamp
6	ARFCTIDCNT	☑	ARFCTIDCNT	ARFCTIDCNT	CHAR	4	0	Transaction ID (LUW -> COMMIT WORK)
7	KEY_COUNTER	☑	MSG_COUNT	MSG_COUNTD	INT4	10	0	Message Count
8	MSG_TOTALCHARS	☐	MSG_COUNT	MSG_COUNTD	INT4	10	0	Message Count
9	DATA	☐	STRING_DATA	STRING_DATA_D	STRG	0	0	String
10	TIMESTAMP	☐	BDM_BDMTIM	SMOG_TS	INT4	10	0	BDoc Modeler timestamp (INT4)
11	BDOC_NAME	☐	RS38L_FNAM	FUNCNAME	CHAR	30	0	Name of Function Module	*

History

Last changed by/on	SAP	20100420
SAP Release Created in	400
