SAP ABAP Table SMO5_BUFHDR (Header table for buffer)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-CCO (Application Component) Client Console
     ⤷ SMO5 (Package) Client Console / System Monitoring

Basic Data

Table Category	TRANSP	Transparent table

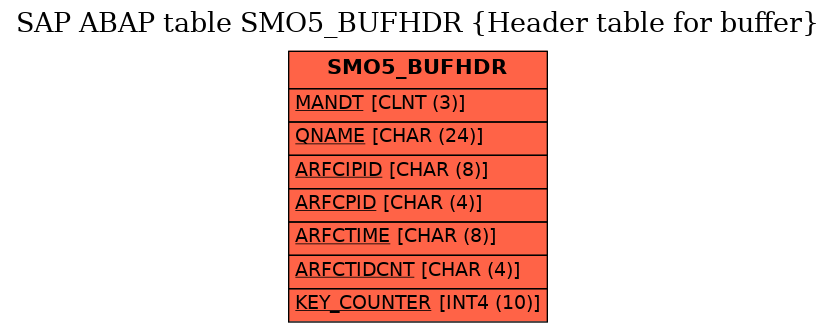

Transparent table	SMO5_BUFHDR	Table Relationship Diagram
Short Description	Header table for buffer

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	QNAME	☑	TRFCQNAM	TRFCQNAM	CHAR	24	0	Name of tRFC Queue
3	.INCLUDE	☑				0	0	Unique Transaction ID (LUW -> COMMIT WORK)
4	ARFCIPID	☑	ARFCIPID	ARFCIPID	CHAR	8	0	Host ID (IP ID
5	ARFCPID	☑	ARFCPID	ARFCPID	CHAR	4	0	Process ID
6	ARFCTIME	☑	ARFCTIME	ARFCTIME	CHAR	8	0	Time Stamp
7	ARFCTIDCNT	☑	ARFCTIDCNT	ARFCTIDCNT	CHAR	4	0	Transaction ID (LUW -> COMMIT WORK)
8	KEY_COUNTER	☑	MSG_COUNT	MSG_COUNTD	INT4	10	0	Message Count
9	MSG_TOTALCHARS	☐	MSG_COUNT	MSG_COUNTD	INT4	10	0	Message Count
10	BDOC_NAME	☐	RS38L_FNAM	FUNCNAME	CHAR	30	0	Name of Function Module	*
11	TIMESTAMP	☐	BDM_BDMTIM	SMOG_TS	INT4	10	0	BDoc Modeler timestamp (INT4)
12	REC_IDENTIFIER	☐	SMOG_GUID	SMOG_GUID	CHAR	32	0	GUID
13	ARFCLUWCNT	☐	ARFCLUWCNT	ARFCLUWCNT	CHAR	8	0	Counter within a transaction (LUW)

History

Last changed by/on	SAP	20100420
SAP Release Created in	400
