SAP ABAP Table SICL930_INT (BRF: Structure for TICL930/931; Internal Use)

Hierarchy

☛ INSURANCE (Software Component) SAP Insurance
   ⤷ FS-CM (Application Component) Claims Management
     ⤷ ICL_BASIS (Package) FS-CM: General Functionality

Basic Data

Table Category	INTTAB	Structure

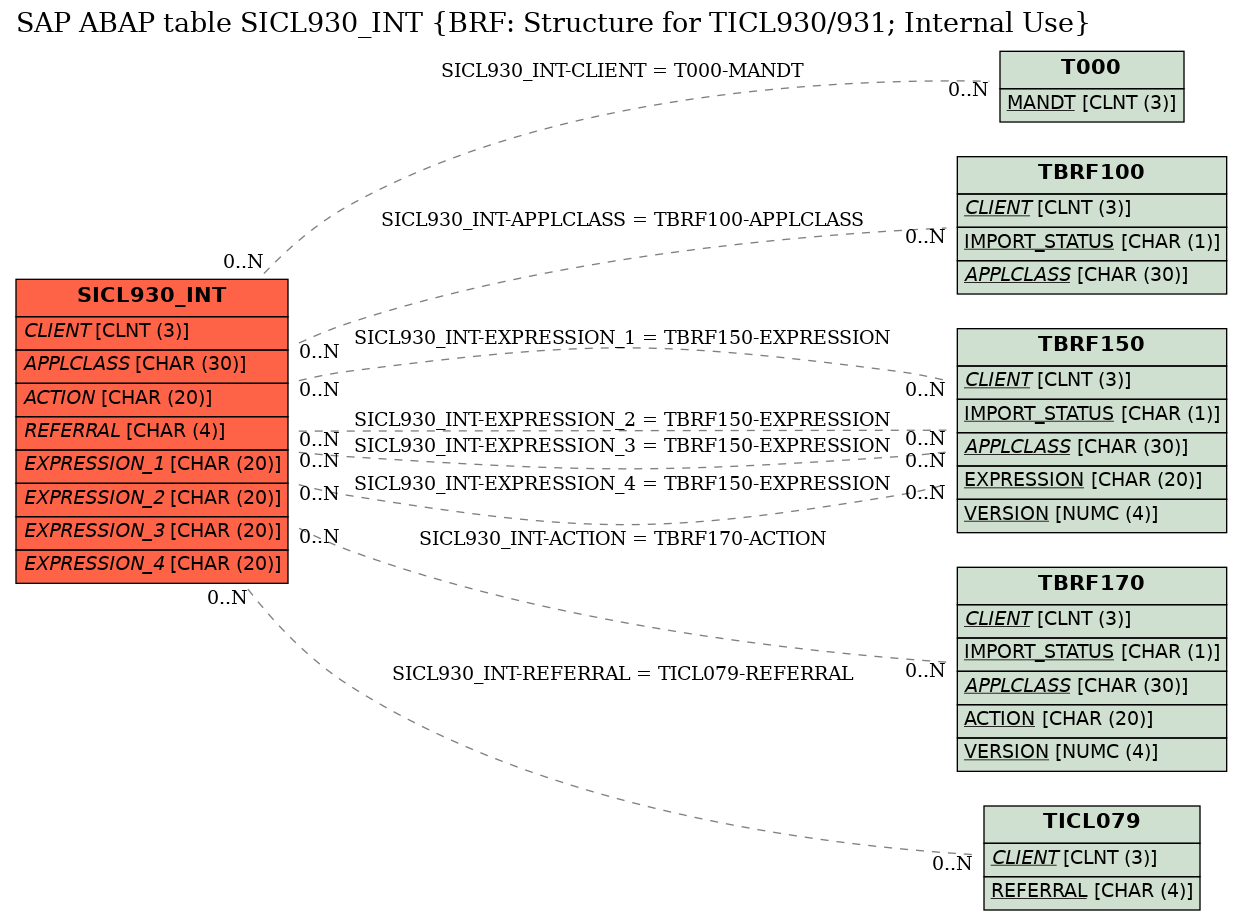

Structure	SICL930_INT	Table Relationship Diagram
Short Description	BRF: Structure for TICL930/931; Internal Use

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	For BRF: Coverage Referral
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	IMPORT_STATUS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
4	APPLCLASS	☐	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	TBRF100
5	ACTION	☐	BRF_ACTION	BRF_ACTION	CHAR	20	0	Name of Action	TBRF170
6	VERSION	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
7	REFERRAL	☐	ICL_REFERRAL	ICL_REFERRAL	CHAR	4	0	Coverage Referral	TICL079
8	SUBSUBACTION	☐	BRF_SUBSUBACTION	BRF_SUBSUBACTION	NUMC	4	0	Any Other Criterion for Subactions
9	XMSGVA	☐	ICL_CMC_XMSGVA	XFIELD	CHAR	1	0	Message Variables Will Be Loaded
10	XEXPRESSION	☐	ICL_CMC_XEXPRESSION	XFIELD	CHAR	1	0	Expressions Exist for This Message
11	EXPRESSION_1	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
12	EXPRESSION_IS_1	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
13	EXPRESSION_2	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
14	EXPRESSION_IS_2	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
15	EXPRESSION_3	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
16	EXPRESSION_IS_3	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
17	EXPRESSION_4	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
18	EXPRESSION_IS_4	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
19	MSGVA_1	☐	ICL_CMC_MSGVA	ICL_TXT50	CHAR	50	0	Message Variable
20	MSGVA_2	☐	ICL_CMC_MSGVA	ICL_TXT50	CHAR	50	0	Message Variable
21	MSGVA_3	☐	ICL_CMC_MSGVA	ICL_TXT50	CHAR	50	0	Message Variable
22	MSGVA_4	☐	ICL_CMC_MSGVA	ICL_TXT50	CHAR	50	0	Message Variable
23	LANGU	☐	LANGU	SPRAS	LANG	1	0	Language Key	*
24	CHECK	☐	BRF_CHECK	BRF_BOOLE_D	CHAR	1	0	Checkbox

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SICL930_INT	ACTION	TBRF170	ACTION
2	SICL930_INT	APPLCLASS	TBRF100	APPLCLASS
3	SICL930_INT	CLIENT	T000	MANDT
4	SICL930_INT	EXPRESSION_1	TBRF150	EXPRESSION
5	SICL930_INT	EXPRESSION_2	TBRF150	EXPRESSION
6	SICL930_INT	EXPRESSION_3	TBRF150	EXPRESSION
7	SICL930_INT	EXPRESSION_4	TBRF150	EXPRESSION
8	SICL930_INT	REFERRAL	TICL079	REFERRAL

History

Last changed by/on	SAP	20110901
SAP Release Created in	471
