SAP ABAP Table SAITEM_STR (SAP Solution Manager: Assignment Structure)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-IMP (Application Component) Solution Manager Implementation
     ⤷ AI_SOLAR (Package) SAP Solution Manager

Basic Data

Table Category	INTTAB	Structure

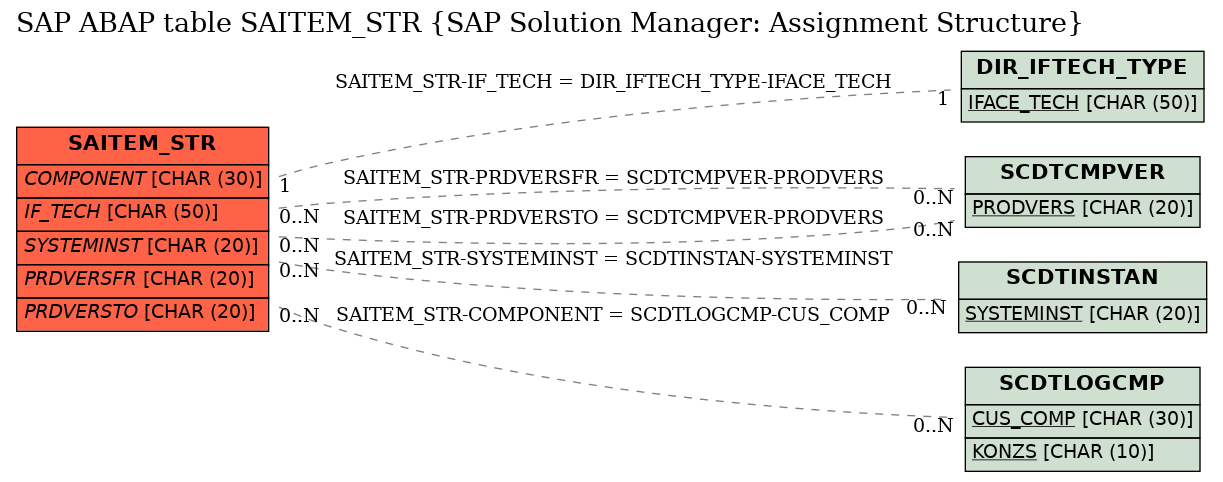

Structure	SAITEM_STR	Table Relationship Diagram
Short Description	SAP Solution Manager: Assignment Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	NODE_TYPE	☐	HIER_NODET	HIER_NODET	CHAR	4	0	Valid Node Types in Structure Repository	*
2	NODE_ID	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
3	TREE_ID	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
4	NAME	☐	HIER_TEXT	HIER_TEXT	CHAR	75	0	Explanatory text
5	COMPONENT	☐	SYSDLVUNIT	SYSDLVUNIT	CHAR	30	0	Technical Description of Logical Components	SCDTLOGCMP
6	TEMPLATES	☐	SATEMPASS		CHAR	255	0	Template assignments
7	ORIGIN	☐	DDTEXT	DDTEXT	CHAR	60	0	Explanatory short text
8	GLATT	☐	SAGLATT	SAGLATT	CHAR	1	0	Global Attribute
9	IGNORE_GLATT	☐	UFFLAG	UFFLAG	CHAR	1	0	Data element for Flag - Any use
10	CNODFRST_N	☐	HIER_TEXT	HIER_TEXT	CHAR	75	0	Explanatory text
11	SOURCE_LC	☐	SYSDLVUNIT	SYSDLVUNIT	CHAR	30	0	Technical Description of Logical Components	*
12	TARGET_LC	☐	SYSDLVUNIT	SYSDLVUNIT	CHAR	30	0	Technical Description of Logical Components	*
13	IF_TECH	☐	DIR_IFTECH	DIR_IFACETECH	CHAR	50	0	Interface Technology	DIR_IFTECH_TYPE
14	IF_TYPE	☐	DIR_IFTYPE	DIR_IFTYPE	CHAR	1	0	Interface Type
15	COPTREFRST	☐	HIER_TREEG	SYCHAR32	CHAR	32	0	GUID for Structure
16	CNODFRST_L	☐	SAORIGIN	SAORIGIN	CHAR	1	0	Source
17	SYSTEMINST	☐	SYSTEMINST	SYSTEMINST	CHAR	20	0	Code for an Assigned System Landscape in Project	SCDTINSTAN
18	PRDVERSFR	☐	SBORPV_FRM	SBORPVNR	CHAR	20	0	Component Release	SCDTCMPVER
19	PRDVERSTO	☐	SBORPV_TO	SBORPVNR	CHAR	20	0	Component Release	SCDTCMPVER
20	IN_SCOPE	☐	SASCOPEFLG	BOOLEAN	CHAR	1	0	SAP Solution Manager: Selection Flag
21	ID	☐			CHAR	70	0
22	EXT_ID	☐			CHAR	255	0
23	DLOCKFLAG	☐	SASOLFLAG		CHAR	1	0	Template
24	INPCHK_ID	☐	UFFLAG	UFFLAG	CHAR	1	0	Data element for Flag - Any use
25	TEMPHANDLE	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
26	GLATTCHNGD	☐			CHAR	1	0
27	COMPHANDLE	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
28	BF_NODE_TYPE	☐	SABFNODETYPE	SABFNODETYPE	CHAR	1	0	Business Function: Node Type
29	BF_HANDLE	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
30	REF_GUID	☐	CON_SOLSCEN	CHAR40	CHAR	40	0	Concatenation of Solution and Scenario ID
31	PRODUCT	☐	SMSYPRODUCT	SMSYPRODUCT	CHAR	20	0	PPMS Product	*
32	COPYHANDLE	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
33	LOG_STR	☐	HIER_LOSTR	HIER_LOSTR	CHAR	1	0	Flag: Logical or Physical Structure
34	PROJECT_ID	☐	PROJECT_ID	PROJECT_ID	CHAR	10	0	Project name	*
35	DIR_STATUS	☐	SADIR_STATUS	SADIR_STATUS	CHAR	40	0	SAP Solution Manager Directory: Status
36	DIR_PROCESSINGTYPE	☐	DIR_PROCESSINGTYPE	DIR_PROCESSINGTYPE	CHAR	1	0	SAP Solution Manager Directory: Processing type
37	DIR_AVAILABILITY	☐	SADIR_AVAILABILITY	SADIR_AVAILABILITY	CHAR	40	0	SAP Solution Manager Directory: Availability
38	DIR_INHERIT_STATUS	☐	FLAG	FLAG	CHAR	1	0	General Flag
39	DIR_PROCESSTYPE	☐	DIR_PROCESSTYPE	TEXT100	CHAR	100	0	SAP Solution Manager Directory: Process Type
40	AREA_NAME	☐	SABAREANAM	TEXT100	CHAR	100	0	SAP Solution Manager: Structure Level in Reference Structure
41	AREA_ID	☐	SABAREA_ID	SYCHAR32	CHAR	32	0	SAP Solution Manager: Organizational Area
42	IF_FIX_TYPE	☐	UFFLAG	UFFLAG	CHAR	1	0	Data element for Flag - Any use
43	COPY_NODE	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
44	COPY_TREE	☐	HIER_TREEG	SYCHAR32	CHAR	32	0	GUID for Structure
45	COPNODFRST	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
46	OLD_COMPONENT	☐	SYSDLVUNIT	SYSDLVUNIT	CHAR	30	0	Technical Description of Logical Components	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SAITEM_STR	COMPONENT	SCDTLOGCMP	CUS_COMP
2	SAITEM_STR	IF_TECH	DIR_IFTECH_TYPE	IFACE_TECH	KEY	1	1
3	SAITEM_STR	PRDVERSFR	SCDTCMPVER	PRODVERS
4	SAITEM_STR	PRDVERSTO	SCDTCMPVER	PRODVERS
5	SAITEM_STR	SYSTEMINST	SCDTINSTAN	SYSTEMINST

History

Last changed by/on	SAP	20100705
SAP Release Created in	610
