SAP ABAP Table RPLM_TS_QI_BAPI2045D3 (Inspection Result - Sample Level (with Tolerance Check))

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ EP-PCT-MAN-QI (Application Component) Business Package for Quality Inspector
     ⤷ RPLM_QI_BE (Package) Quality Inspector Backend

Basic Data

Table Category	INTTAB	Structure

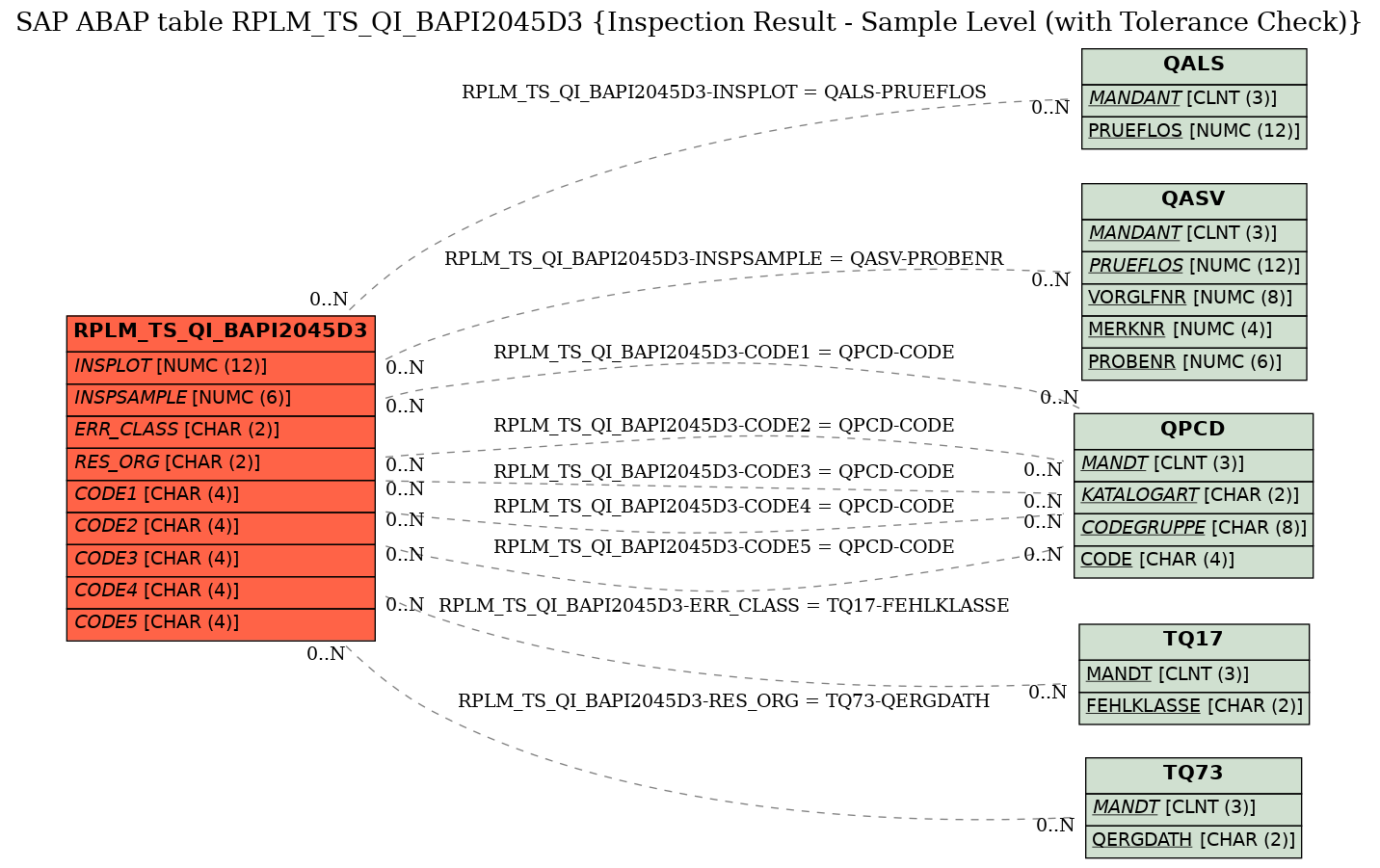

Structure	RPLM_TS_QI_BAPI2045D3	Table Relationship Diagram
Short Description	Inspection Result - Sample Level (with Tolerance Check)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Inspection Result - Sample Level
2	INSPLOT	☐	QIBPLOSNR	QPLOS	NUMC	12	0	Inspection Lot Number	QALS
3	INSPOPER	☐	QIBPVORNR	VORNR	CHAR	4	0	Inspection Lot Operation Number
4	INSPCHAR	☐	QIBPMERKNR	NUMC4	NUMC	4	0	Insp. Lot Charac. No.
5	INSPSAMPLE	☐	QIBPPROBE	QPROBENR	NUMC	6	0	Insp. Lot Sample	QASV
6	LAST_SMPL	☐	QEIFKZENDE	QKZ	CHAR	1	0	Last Original Value, Sample or Inspection Point
7	CLOSED	☐	QEIFABSCHL	QKZ	CHAR	1	0	Close Characteristic or Sample
8	EVALUATED	☐	QEIFBEWE	QKZ	CHAR	1	0	Copy Valuation from External System
9	SMPL_ATTR	☐	QATTRIBUT	QATTRIBUT	CHAR	1	0	Attribute of the Results Record (Valid, Invalid,...)
10	SMPL_INVAL	☐	QRES_INVAL	CHAR1	CHAR	1	0	Invalid Result
11	EVALUATION	☐	QMBEWERTG	QEEBEWERTG	CHAR	1	0	Inspection Result Valuation
12	ERR_CLASS	☐	QFEHLKLAS	QFEHLKLAS	CHAR	2	0	Defect class	TQ17
13	VALID_VALS	☐	QEIFAWERTG	CHAR7	CHAR	7	0	No. of Valid Values for Char. Results Upload to QM Subsys.
14	NONCONF	☐	QEIFAFEEH	CHAR7	CHAR	7	0	No. of Nonconforming Units for Char. Confirmation via QM-IDI
15	DEFECTS	☐	QEIFAFEHL	CHAR7	CHAR	7	0	Number of Defects for Confirmation of Charac. via QM-IDI
16	VALS_ABOVE	☐	QEIFAWRTU	CHAR7	CHAR	7	0	Number of Values Below the Tolerance Limit (Characteristic)
17	VALS_BELOW	☐	QEIFAWRTO	CHAR7	CHAR	7	0	Number of Values Above the Tolerance Limit (Characteristic)
18	MEAN_VALUE	☐	QMEAN_VAL	QIFLTP	CHAR	22	0	Mean Value
19	VARIANCE	☐	QVARIANCE	QIFLTP	CHAR	22	0	Variance
20	MAXIMUM	☐	QMEAN_VAL	QIFLTP	CHAR	22	0	Mean Value
21	MINIMUM	☐	QMEAN_VAL	QIFLTP	CHAR	22	0	Mean Value
22	START_DATE	☐	QEIFPRDATV	DATUM	DATS	8	0	Inspection Start Date (QM Subsystem Interface)
23	START_TIME	☐	QEIFPRZTV	QZEIT	TIMS	6	0	Inspection Start Time (QM Subsystem Interface)
24	END_DATE	☐	QEIFPRDATB	DATUM	DATS	8	0	Inspection End Date (QM Subsystem Interface)
25	END_TIME	☐	QEIFPRZTB	QZEIT	TIMS	6	0	Inspection End Time (QM Subsystem Interface)
26	INSPECTOR	☐	QINSPECTOR	TEXT20	CHAR	20	0	Name of the Inspector
27	RES_ORG	☐	QRES_ORG	QERGDATH	CHAR	2	0	Data Origin	TQ73
28	REMARK	☐	QRES_REMAR	TEXT40	CHAR	40	0	Inspection Description for Single Value
29	CODE1	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
30	CODE_GRP1	☐	QCODE_GROU	CHAR8	CHAR	8	0	Code Group
31	CODE2	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
32	CODE_GRP2	☐	QCODE_GROU	CHAR8	CHAR	8	0	Code Group
33	CODE3	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
34	CODE_GRP3	☐	QCODE_GROU	CHAR8	CHAR	8	0	Code Group
35	CODE4	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
36	CODE_GRP4	☐	QCODE_GROU	CHAR8	CHAR	8	0	Code Group
37	CODE5	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
38	CODE_GRP5	☐	QCODE_GROU	CHAR8	CHAR	8	0	Code Group
39	ORIGINAL_INPUT	☐	QORIGINAL_INPUT	CHAR25	CHAR	25	0	Original Value Before Input Processing
40	INPPROC_READY	☐	QINPPROC_READY	QKZ	CHAR	1	0	Input Processing Successfully Completed
41	DIFF_DEC_PLACES	☐	QDIFF_DEC_PLACES	INT2	INT2	5	0	Different Number of Decimal Places
42	TOLERANCE_STATUS	☐	RPLM_TT_QI_TOLERANCE_CHECK		TTYP	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RPLM_TS_QI_BAPI2045D3	CODE1	QPCD	CODE
2	RPLM_TS_QI_BAPI2045D3	CODE2	QPCD	CODE
3	RPLM_TS_QI_BAPI2045D3	CODE3	QPCD	CODE
4	RPLM_TS_QI_BAPI2045D3	CODE4	QPCD	CODE
5	RPLM_TS_QI_BAPI2045D3	CODE5	QPCD	CODE
6	RPLM_TS_QI_BAPI2045D3	ERR_CLASS	TQ17	FEHLKLASSE
7	RPLM_TS_QI_BAPI2045D3	INSPLOT	QALS	PRUEFLOS
8	RPLM_TS_QI_BAPI2045D3	INSPSAMPLE	QASV	PROBENR
9	RPLM_TS_QI_BAPI2045D3	RES_ORG	TQ73	QERGDATH

History

Last changed by/on	SAP	20130529
SAP Release Created in	600
