SAP ABAP Table RCGCCUNTPACK (EHS: Structure for CCUNTPACK)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ EHS-SAF (Application Component) Product Safety
     ⤷ CBUI (Package) Company Environment Information System

Basic Data

Table Category	INTTAB	Structure

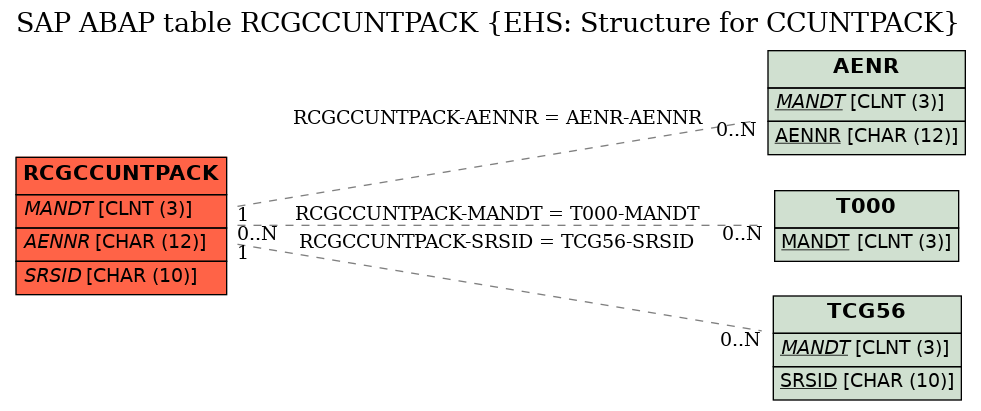

Structure	RCGCCUNTPACK	Table Relationship Diagram
Short Description	EHS: Structure for CCUNTPACK

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	EHS: Structure for key info of master data
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	RECN	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
4	ACTN	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
5	.INCLUDE	☐				0	0	EHS: Structure for General Administration Information
6	VALFR	☐	ESEVALFR	DATUM	DATS	8	0	Valid-From Date
7	VALTO	☐	ESEVALTO	DATUM	DATS	8	0	Valid-To Date
8	AENNR	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	AENR
9	DELFLG	☐	ESEDELFLG	ESDFLAG	CHAR	1	0	Deletion Indicator
10	PARKFLG	☐	ESEPARKFLG	ESDFLAG	CHAR	1	0	Data Record Is Inactive
11	CRDAT	☐	ESECRDAT	DATUM	DATS	8	0	Created On
12	CRNAM	☐	ESECRNAM	USNAM	CHAR	12	0	Created By
13	UPDDAT	☐	ESEUPDDAT	DATUM	DATS	8	0	Changed On
14	UPDNAM	☐	ESEUPDNAM	USNAM	CHAR	12	0	Last Changed By
15	SRSID	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	TCG56
16	OWNID	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
17	RECNROOT	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
18	RECNMST	☐	ESERECNMST	ESDRECN	NUMC	20	0	Reference to Master Table
19	DPOT	☐	THME_DPOT	HMD_DPOT	CHAR	10	0	Risk Potential	*
20	INSTR_ENCL	☐	CBUNE_INSTR_ENCL	CBUND_INSTR_ENCL	CHAR	10	0	Instruction for Enclosure	*
21	PACOD_IN	☐	CBDUE_PACOD_IN	CBUND_PACOD	CHAR	10	0	Packaging Code Inner Packaging	*
22	PACOD_OUT	☐	CBDUE_PACOD_OUT	CBUND_PACOD	CHAR	10	0	Packaging Code Outer Packaging	*
23	PACOD_SGL	☐	CBDUE_PACOD_SGL	CBUND_PACOD	CHAR	10	0	Packaging Code Single Packaging	*
24	MAX_QUANT_IN	☐	THME_IPMQU	HMD_QUAN	QUAN	8	2	Inner Packaging: Maximum Quantity / Volume
25	U_MAX_QUANT_IN	☐	THME_UIPMQ	MEINS	UNIT	3	0	Unit of measure for inner packaging: max. quantity/volume	*
26	FLG_MAX_QU_IN	☐	CBDUE_FLG_MAX_QU_IN	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Quantity Inner Packaging
27	MAX_QUANT_OUT	☐	THME_OPMQU	HMD_QUAN	QUAN	8	2	Outer Packaging: Maximum Quantity / Volume
28	U_MAX_QUANT_OUT	☐	THME_UOPMQ	MEINS	UNIT	3	0	Unit for maximum quantity / volume of outer package	*
29	FLG_MAX_QU_OUT	☐	CBDUE_FLG_MAX_QU_OUT	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Quantity Outer Packaging
30	MAX_QUANT_SGL	☐	THME_SPAQU	HMD_QUAN	QUAN	8	2	Single Packaging: Maximum Quantity / Volume
31	U_MAX_QUANT_SGL	☐	THME_USPAQ	MEINS	UNIT	3	0	Unit for single packaging: max. quantity / volume	*
32	FLG_MAX_QU_SGL	☐	CBDUE_FLG_MAX_QU_SGL	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Quantity Single Packaging
33	MAX_GROSS_WEIGHT	☐	THME_TOGWE	HMD_QUAN	QUAN	8	2	Maximum Gross Weight
34	U_MAX_GRS_WEIGHT	☐	THME_UTOGW	MEINS	UNIT	3	0	Unit for packaging gross weight	*
35	FLG_MAX_GRS_WGHT	☐	CBDUE_FLG_MAX_GRS_WGHT	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Gross Weight
36	IPALL	☐	THME_IPALL	X	CHAR	1	0	Pallet / Skeleton Container
37	AGREE_AUTHORITIE	☐	THME_AGAUN	X	CHAR	1	0	Agreement of Authorities Required

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RCGCCUNTPACK	AENNR	AENR	AENNR	REF	1	CN
2	RCGCCUNTPACK	MANDT	T000	MANDT
3	RCGCCUNTPACK	SRSID	TCG56	SRSID	REF	1	CN

History

Last changed by/on	SAP	20110901
SAP Release Created in	600
