SAP ABAP Table RCBUN07IOT (EHS: IOTAB for UN-Listed Substance Transport Approval)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ EHS-SAF (Application Component) Product Safety
     ⤷ CBUI (Package) Company Environment Information System

Basic Data

Table Category	INTTAB	Structure

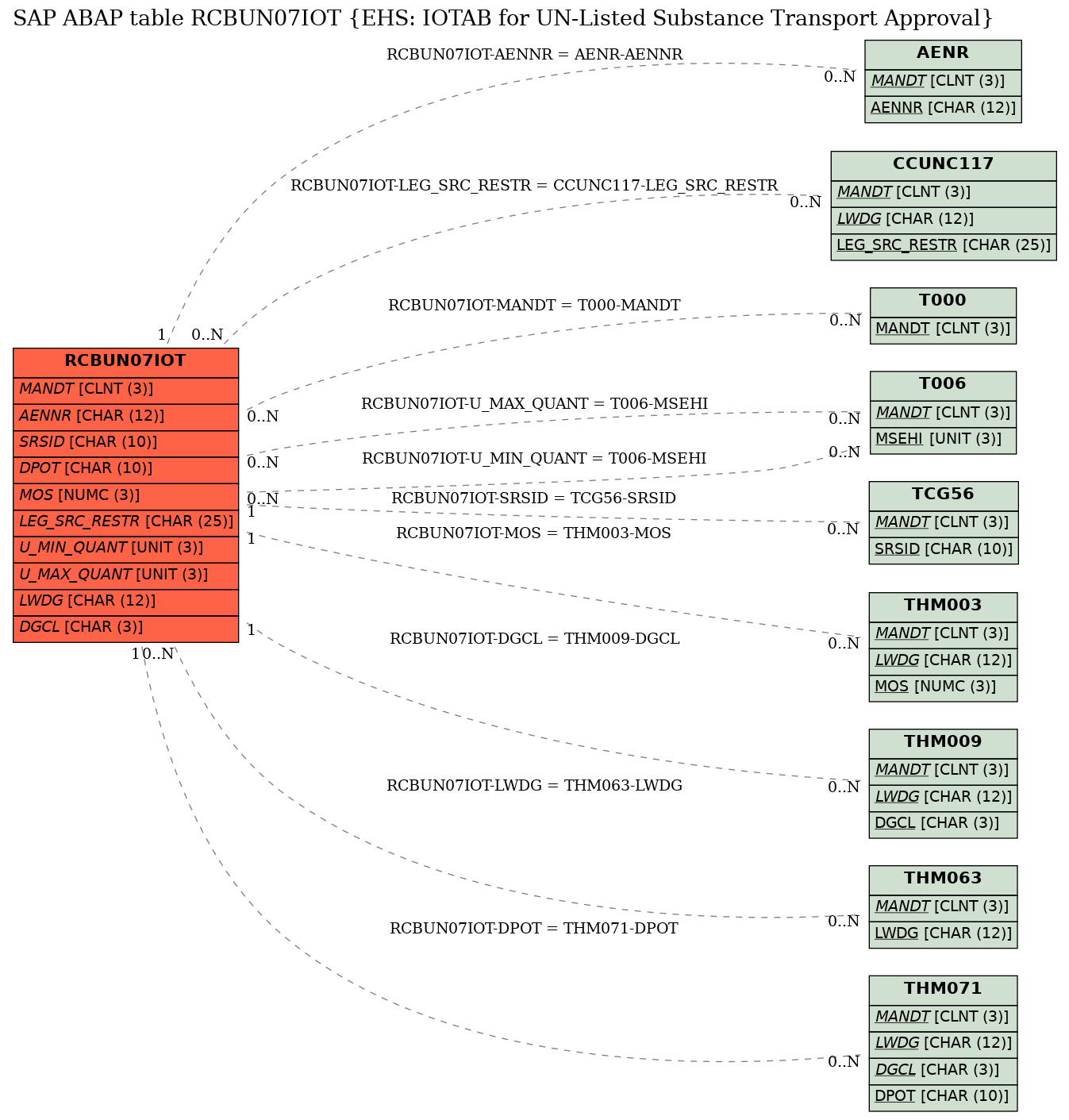

Structure	RCBUN07IOT	Table Relationship Diagram
Short Description	EHS: IOTAB for UN-Listed Substance Transport Approval

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	EHS: IOTAB for transport approval (DGM)
2	.INCLUDE	☐				0	0	EHS: Standard fields for IOTABs (step loop library)
3	MARKFLG	☐	ESEMARKFLG	ESDFLAG	CHAR	1	0	Row Is Selected
4	SELEFLG	☐	ESESELEFLG	ESDFLAG	CHAR	1	0	Step Loop Line Selected
5	LINENO	☐	ESECOUNTER	NUMC10	NUMC	10	0	General Auxiliary Counter
6	LINEMOD	☐	ESELINEMOD	CHAR1	CHAR	1	0	Processing status or mode of a record/step loop line
7	CHCOFLG	☐	ESECHCOFLG	ESDFLAG	CHAR	1	0	Indicator: Change number collision
8	LOCKMOD	☐	ESELOCKMOD	CHAR1	CHAR	1	0	Lock Mode (Shared, Exclusive)
9	INTRFLG	☐	ESEINTRFLG	ESDFLAG	CHAR	1	0	Flag for Internal Use
10	.INCLUDE	☐				0	0	EHS: Dangerous Goods Management - Transport Approval
11	.INCLUDE	☐				0	0	EHS: Structure for key info of master data
12	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
13	RECN	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
14	ACTN	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
15	.INCLUDE	☐				0	0	EHS: Structure for General Administration Information
16	VALFR	☐	ESEVALFR	DATUM	DATS	8	0	Valid-From Date
17	VALTO	☐	ESEVALTO	DATUM	DATS	8	0	Valid-To Date
18	AENNR	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	AENR
19	DELFLG	☐	ESEDELFLG	ESDFLAG	CHAR	1	0	Deletion Indicator
20	PARKFLG	☐	ESEPARKFLG	ESDFLAG	CHAR	1	0	Data Record Is Inactive
21	CRDAT	☐	ESECRDAT	DATUM	DATS	8	0	Created On
22	CRNAM	☐	ESECRNAM	USNAM	CHAR	12	0	Created By
23	UPDDAT	☐	ESEUPDDAT	DATUM	DATS	8	0	Changed On
24	UPDNAM	☐	ESEUPDNAM	USNAM	CHAR	12	0	Last Changed By
25	SRSID	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	TCG56
26	OWNID	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
27	RECNROOT	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
28	RECNMST	☐	ESERECNMST	ESDRECN	NUMC	20	0	Reference to Master Table
29	DPOT	☐	THME_DPOT	HMD_DPOT	CHAR	10	0	Risk Potential	THM071
30	MOS	☐	THME_MOS	HMD_MOS	NUMC	3	0	Dangerous Goods Transport Type	THM003
31	ADMOS	☐	THME_ADMOS	X	CHAR	1	0	Transport Permitted
32	LEG_SRC_RESTR	☐	CBDUE_LEG_SRC_RESTR	CBUND_LEG_SRC_RESTR	CHAR	25	0	Regulatory Basis for Transport Restrictions	CCUNC117
33	RESTR_PHRKEY	☐	CBDUE_RESTR_PHRKEY	CBDUD_FIELD_WITH_PHRASE	CHAR	21	0	Phrase Key for Transport Restriction
34	MIN_QUANT	☐	CBDUE_MIN_QUANT	HMD_QUAN	QUAN	8	2	Minimum Quantity for Restriction
35	U_MIN_QUANT	☐	CBDUE_U_MIN_QUANT	MEINS	UNIT	3	0	Unit of Measurement for Minimum Quantity	T006
36	MAX_QUANT	☐	CBDUE_MAX_QUANT	HMD_QUAN	QUAN	8	2	Maximum Quantity for Exemption
37	U_MAX_QUANT	☐	CBDUE_U_MAX_QUANT	MEINS	UNIT	3	0	Unit of Measurement for Maximum Quantity	T006
38	FLG_MIN_QUANT	☐	CBDUE_FLG_MIN_QUANT	CBUND_FLG	CHAR	1	0	Value Entered for Minimum Quantity for Restriction
39	FLG_MAX_QUANT	☐	CBDUE_FLG_MAX_QUANT	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Quantity for Restriction
40	.INCLUDE	☐				0	0	EHS: Standard information for legal data (dangerous goods)
41	LWDG	☐	THME_LWDG	HMD_LWDG	CHAR	12	0	Dangerous Goods Regulation	THM063
42	DGCL	☐	THME_DGCL	HMD_DGCL	CHAR	3	0	Dangerous Goods Class	THM009
43	DPOTD	☐	THME_DPOTD	HMD_STXT	CHAR	132	0	Description for risk potential
44	LDBC	☐	THME_LDBC	HMD_LDBC	CHAR	5	0	Classification Code	*
45	LDBCD	☐	THME_LDBCD	HMD_STXT	CHAR	132	0	Description of Classification Code
46	PGRO	☐	THME_PGRO	CHAR3	CHAR	3	0	Packing Group
47	MOSC	☐	THME_MOSC	HMD_STXT	CHAR	132	0	Comments on transport category
48	MOSD	☐	THME_MOSD	HMD_STXT	CHAR	132	0	Description for Transport Type
49	LEG_SRC_RESTR_D	☐	CBDUE_LEG_SRC_RESTR_D	CBUND_LEG_SRC_RESTR_D	CHAR	132	0	Description for Regulatory Basis for Transport Restrictions
50	RESTR_C	☐	CBDUE_RESTR_C	TEXT40	CHAR	40	0	Phrase Code for Transport Restriction
51	RESTR_D	☐	CBDUE_RESTR_D	TEXT132	CHAR	132	0	Phrase Text for Transport Restriction
52	MIN_QUANT_TXT	☐	CBDUE_MIN_QUANT_TXT	TEXT14	CHAR	14	0	Minimum Quantity for Restriction
53	MAX_QUANT_TXT	☐	CBDUE_MAX_QUANT_TXT	TEXT14	CHAR	14	0	Maximum Quantity for Exemption

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RCBUN07IOT	AENNR	AENR	AENNR	REF	1	CN
2	RCBUN07IOT	DGCL	THM009	DGCL		1	CN
3	RCBUN07IOT	DPOT	THM071	DPOT		1	CN
4	RCBUN07IOT	LEG_SRC_RESTR	CCUNC117	LEG_SRC_RESTR
5	RCBUN07IOT	LWDG	THM063	LWDG
6	RCBUN07IOT	MANDT	T000	MANDT
7	RCBUN07IOT	MOS	THM003	MOS		1	CN
8	RCBUN07IOT	SRSID	TCG56	SRSID	REF	1	CN
9	RCBUN07IOT	U_MAX_QUANT	T006	MSEHI
10	RCBUN07IOT	U_MIN_QUANT	T006	MSEHI

History

Last changed by/on	SAP	20110901
SAP Release Created in	0207B0406C
