SAP ABAP Table RCBDUPACKIOT (EHS: IOTAB for Packing Requirement)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ EHS-DGP (Application Component) Dangerous Goods Management
     ⤷ CBDG (Package) PI-EH&S Dangerous Goods Management

Basic Data

Table Category	INTTAB	Structure

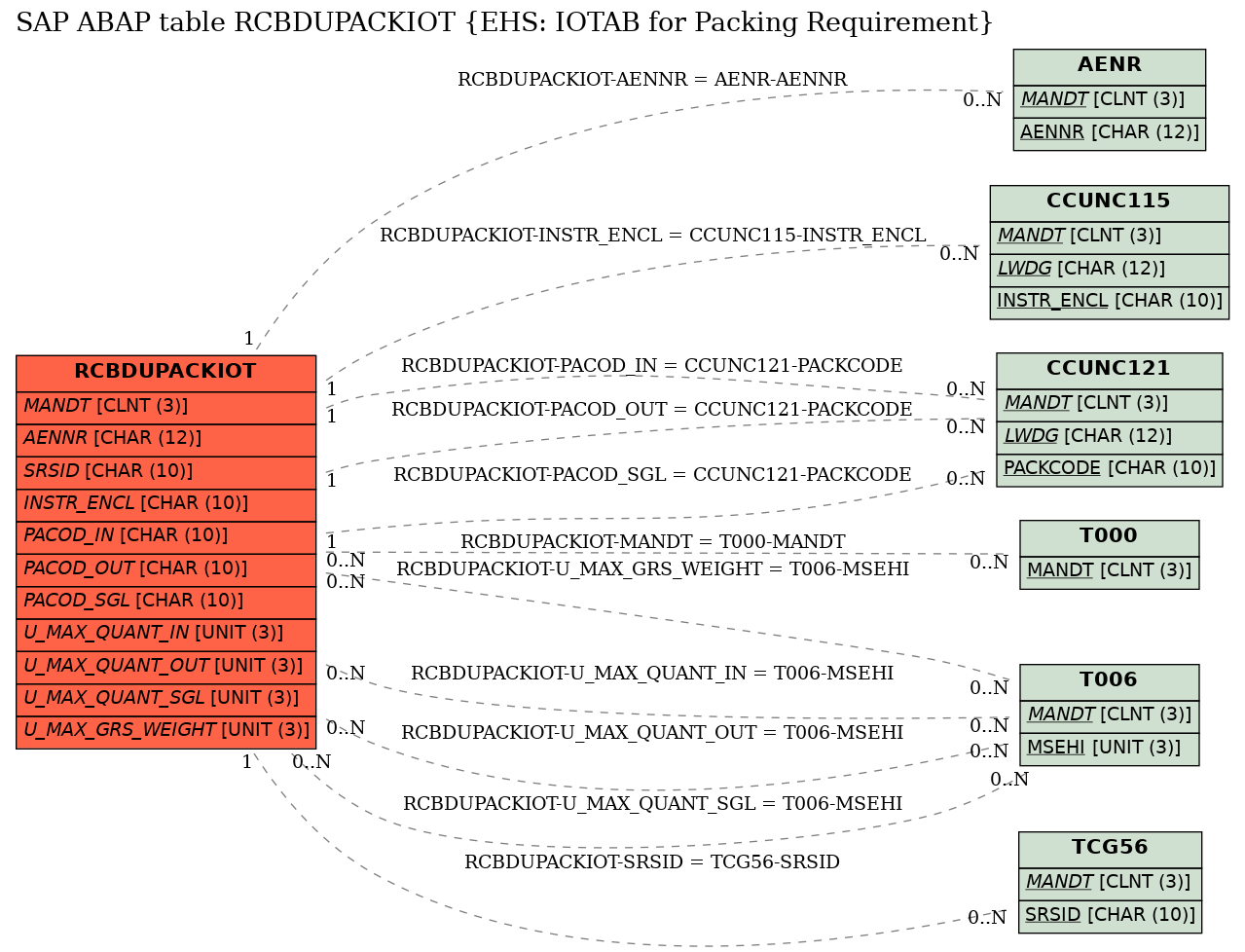

Structure	RCBDUPACKIOT	Table Relationship Diagram
Short Description	EHS: IOTAB for Packing Requirement

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	EHS: Standard fields for IOTABs (step loop library)
2	MARKFLG	☐	ESEMARKFLG	ESDFLAG	CHAR	1	0	Row Is Selected
3	SELEFLG	☐	ESESELEFLG	ESDFLAG	CHAR	1	0	Step Loop Line Selected
4	LINENO	☐	ESECOUNTER	NUMC10	NUMC	10	0	General Auxiliary Counter
5	LINEMOD	☐	ESELINEMOD	CHAR1	CHAR	1	0	Processing status or mode of a record/step loop line
6	CHCOFLG	☐	ESECHCOFLG	ESDFLAG	CHAR	1	0	Indicator: Change number collision
7	LOCKMOD	☐	ESELOCKMOD	CHAR1	CHAR	1	0	Lock Mode (Shared, Exclusive)
8	INTRFLG	☐	ESEINTRFLG	ESDFLAG	CHAR	1	0	Flag for Internal Use
9	.INCLUDE	☐				0	0	EHS: Standard information for legal data (dangerous goods)
10	LWDG	☐	THME_LWDG	HMD_LWDG	CHAR	12	0	Dangerous Goods Regulation	*
11	DGCL	☐	THME_DGCL	HMD_DGCL	CHAR	3	0	Dangerous Goods Class	*
12	DPOTD	☐	THME_DPOTD	HMD_STXT	CHAR	132	0	Description for risk potential
13	LDBC	☐	THME_LDBC	HMD_LDBC	CHAR	5	0	Classification Code	*
14	LDBCD	☐	THME_LDBCD	HMD_STXT	CHAR	132	0	Description of Classification Code
15	PGRO	☐	THME_PGRO	CHAR3	CHAR	3	0	Packing Group
16	.INCLUDE	☐				0	0	Packaging Code Approvals
17	.INCLUDE	☐				0	0	EHS: Structure for key info of master data
18	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
19	RECN	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
20	ACTN	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
21	.INCLUDE	☐				0	0	DG: Structure for General Administration Information
22	VALFR	☐	ESEVALFR	DATUM	DATS	8	0	Valid-From Date
23	VALTO	☐	ESEVALTO	DATUM	DATS	8	0	Valid-To Date
24	AENNR	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	AENR
25	DELFLG	☐	ADGE_DELFLG	ESDFLAG	CHAR	1	0	Deletion Indicator
26	PARKFLG	☐	ESEPARKFLG	ESDFLAG	CHAR	1	0	Data Record Is Inactive
27	CRDAT	☐	ESECRDAT	DATUM	DATS	8	0	Created On
28	CRNAM	☐	ESECRNAM	USNAM	CHAR	12	0	Created By
29	UPDDAT	☐	ESEUPDDAT	DATUM	DATS	8	0	Changed On
30	UPDNAM	☐	ESEUPDNAM	USNAM	CHAR	12	0	Last Changed By
31	SRSID	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	TCG56
32	OWNID	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
33	RECNROOT	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
34	.INCLUDE	☐				0	0	EHS: Application Data for Table CCDUTPACK
35	INSTR_ENCL	☐	CBUNE_INSTR_ENCL	CBUND_INSTR_ENCL	CHAR	10	0	Instruction for Enclosure	CCUNC115
36	PACOD_IN	☐	CBDUE_PACOD_IN	CBUND_PACOD	CHAR	10	0	Packaging Code Inner Packaging	CCUNC121
37	PACOD_OUT	☐	CBDUE_PACOD_OUT	CBUND_PACOD	CHAR	10	0	Packaging Code Outer Packaging	CCUNC121
38	PACOD_SGL	☐	CBDUE_PACOD_SGL	CBUND_PACOD	CHAR	10	0	Packaging Code Single Packaging	CCUNC121
39	MAX_QUANT_IN	☐	THME_IPMQU	HMD_QUAN	QUAN	8	2	Inner Packaging: Maximum Quantity / Volume
40	U_MAX_QUANT_IN	☐	THME_UIPMQ	MEINS	UNIT	3	0	Unit of measure for inner packaging: max. quantity/volume	T006
41	FLG_MAX_QU_IN	☐	CBDUE_FLG_MAX_QU_IN	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Quantity Inner Packaging
42	MAX_QUANT_OUT	☐	THME_OPMQU	HMD_QUAN	QUAN	8	2	Outer Packaging: Maximum Quantity / Volume
43	U_MAX_QUANT_OUT	☐	THME_UOPMQ	MEINS	UNIT	3	0	Unit for maximum quantity / volume of outer package	T006
44	FLG_MAX_QU_OUT	☐	CBDUE_FLG_MAX_QU_OUT	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Quantity Outer Packaging
45	MAX_QUANT_SGL	☐	THME_SPAQU	HMD_QUAN	QUAN	8	2	Single Packaging: Maximum Quantity / Volume
46	U_MAX_QUANT_SGL	☐	THME_USPAQ	MEINS	UNIT	3	0	Unit for single packaging: max. quantity / volume	T006
47	FLG_MAX_QU_SGL	☐	CBDUE_FLG_MAX_QU_SGL	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Quantity Single Packaging
48	MAX_GROSS_WEIGHT	☐	THME_TOGWE	HMD_QUAN	QUAN	8	2	Maximum Gross Weight
49	U_MAX_GRS_WEIGHT	☐	THME_UTOGW	MEINS	UNIT	3	0	Unit for packaging gross weight	T006
50	FLG_MAX_GRS_WGHT	☐	CBDUE_FLG_MAX_GRS_WGHT	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Gross Weight
51	IPALL	☐	THME_IPALL	X	CHAR	1	0	Pallet / Skeleton Container
52	AGAUN	☐	THME_AGAUN	X	CHAR	1	0	Agreement of Authorities Required
53	REGNO	☐	ADGE_REGNO	CHAR30	CHAR	30	0	Approval no.
54	AGRNO	☐	ADGE_AGRNO	CHAR30	CHAR	30	0	Exception and Agreement Number
55	DAOR	☐	ADGE_DAOR	ADGD_DAOR	CHAR	1	0	Data Origin (Filling and Distribution)
56	SCREENFLAG	☐	ADGE_SCREENFLG	CHAR1	CHAR	1	0	Screen Flag
57	INSTR_ENCL_CAT	☐	CBUNE_INSTR_ENCL_CAT	CBUND_INSTR_ENCL_CAT	CHAR	15	0	Category of Instruction for Enclosure	*
58	INSTR_ENCL_D	☐	CBUNE_INSTR_ENCL_D	CBUND_INSTR_ENCL_D	CHAR	132	0	Description for Instruction for Enclosure
59	INSTR_ENCL_CAT_D	☐	CBUNE_INSTR_ENCL_CAT_D	CBUND_INSTR_ENCL_CAT_D	CHAR	132	0	Description for Category of Instruction for Enclosure
60	MAX_QU_IN_TXT	☐	CBDUE_MAX_QUANT_IN_TXT	TEXT14	CHAR	14	0	Inner Packaging: Maximum Quantity / Volume
61	MAX_QU_OUT_TXT	☐	CBDUE_MAX_QUANT_OUT_TXT	TEXT14	CHAR	14	0	Outer Packaging: Maximum Quantity / Volume
62	MAX_QU_SGL_TXT	☐	CBDUE_MAX_QUANT_SGL_TXT	TEXT14	CHAR	14	0	Single Packaging: Maximum Quantity / Volume
63	MAX_GRS_WGHT_TXT	☐	CBDUE_MAX_GRSS_WGHT_TXT	TEXT14	CHAR	14	0	Maximum Gross Weight

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RCBDUPACKIOT	AENNR	AENR	AENNR	REF	1	CN
2	RCBDUPACKIOT	INSTR_ENCL	CCUNC115	INSTR_ENCL		1	CN
3	RCBDUPACKIOT	MANDT	T000	MANDT
4	RCBDUPACKIOT	PACOD_IN	CCUNC121	PACKCODE		1	CN
5	RCBDUPACKIOT	PACOD_OUT	CCUNC121	PACKCODE		1	CN
6	RCBDUPACKIOT	PACOD_SGL	CCUNC121	PACKCODE		1	CN
7	RCBDUPACKIOT	SRSID	TCG56	SRSID	REF	1	CN
8	RCBDUPACKIOT	U_MAX_GRS_WEIGHT	T006	MSEHI
9	RCBDUPACKIOT	U_MAX_QUANT_IN	T006	MSEHI
10	RCBDUPACKIOT	U_MAX_QUANT_OUT	T006	MSEHI
11	RCBDUPACKIOT	U_MAX_QUANT_SGL	T006	MSEHI

History

Last changed by/on	SAP	20110901
SAP Release Created in	0207B0406C
