SAP ABAP Table QSAMPTAB (Internal structure: Partial samples in inspection lot)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ QM-IM-SM (Application Component) Sample Management
     ⤷ QPR (Package) QM sample management

Basic Data

Table Category	INTTAB	Structure

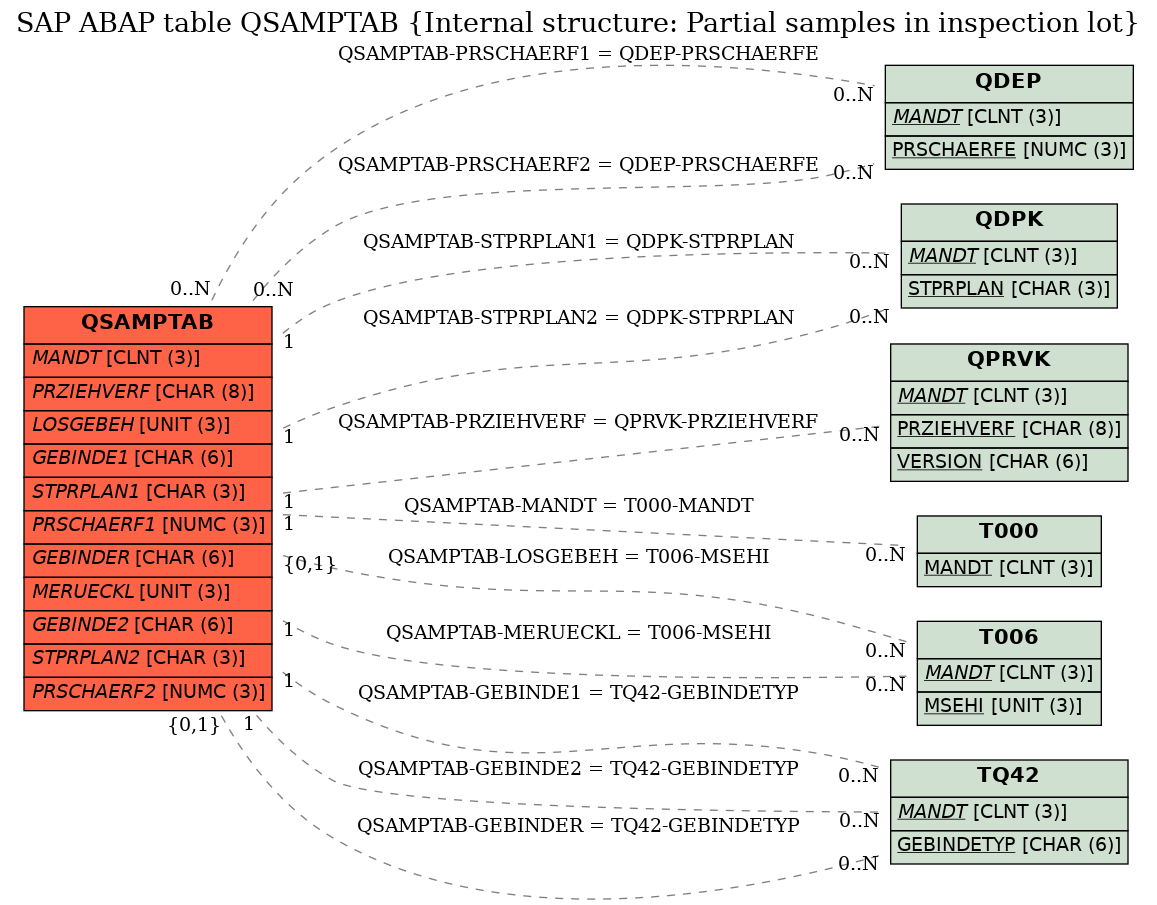

Structure	QSAMPTAB	Table Relationship Diagram
Short Description	Internal structure: Partial samples in inspection lot

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	PRUEFLOS	☐	QPLOS	QPLOS	NUMC	12	0	Inspection Lot Number	*
2	VORGLFNR	☐	QLFNKN	KNTNR	NUMC	8	0	Current Node Number from Order Counter APLZL
3	VORNR	☐	QVORNRD	VORNR	CHAR	4	0	Operation Number in the Quality Level
4	PRPLATZ	☐	QPRPLATZ	ARBPL	CHAR	8	0	Work Center
5	PRPLATZWRK	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
6	PRPLATZTXT	☐	QKURZTEXT	QKURZTEXT	CHAR	40	0	Short Text
7	PHYSPROBE	☐	QPHYSPROBE	QPROBENR	NUMC	6	0	Number of the Partial Sample	*
8	BPRUEFUMF	☐	QPRUEFUMF	QMENGEPLOS	QUAN	13	3	Quantity to Be Inspected
9	BMENGENEH	☐	QPROBEMGEH	MEINS	UNIT	3	0	Base Unit of Measure for the Sample Unit	*
10	PPRUEFUMF	☐	QPRUEFUMF	QMENGEPLOS	QUAN	13	3	Quantity to Be Inspected
11	PMENGENEH	☐	QPROBME	MEINS	UNIT	3	0	Sample Unit of Measure	*
12	FAKPLANME	☐	QUMREN	QUMRENFAK	FLTP	16	16	Factor for Converting MatUnitOfMeasure to SampUnitOfMeasure
13	FAKPROBME	☐	QUMRENPME	QUMRENFAK	FLTP	16	16	Factor for Converting SampUnitOfMeasure to MatUnitOfMeasure
14	.INCLUDE	☐				0	0	Sample-drawing items
15	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
16	PRZIEHVERF	☐	QPRZIEHVER	QPRZIEHVER	CHAR	8	0	Sample-Drawing Procedure	QPRVK
17	VERSION	☐	QVERSNPRZV	QVERSNR	CHAR	6	0	Version No. of the Sample-Drawing Procedure
18	POSNRPRZV	☐	QZAEHLPRZV	NUM4	NUMC	4	0	Item Number in Sample-Drawing Procedure
19	LOSGEBEH	☐	QGEBEH	MEINS	UNIT	3	0	Lot Container	T006
20	PROBNRPL	☐	QPROBNRBIS	QPROBEPL	NUMC	3	0	Highest Partial Sample No. Valid for Instruction
21	GEBINDE1	☐	QGEBINDE1	QGEBINDET	CHAR	6	0	Physical-Sample Container for Drawing Primary Sample	TQ42
22	STPRPLAN1	☐	QSTPRPLAN1	QSTPRPLAN	CHAR	3	0	Sampling Scheme for Primary Sample Stage of Sample Drawing	QDPK
23	PRSCHAERF1	☐	QPRSCHAER1	QPRSCHAERF	NUMC	3	0	Insp. Severity in Samp.-Draw. Proc. at Primary Sample Stage	QDEP
24	AQLWERT1	☐	QAQLWERT1	QAQLWERT	DEC	7	3	AQL Value in Primary Sample Stage
25	PRANZ1	☐	QPRANZ1	QANZAHL1	INT1	3	0	Fixed No. of Physical Samples for Primary Sample Stage
26	FAKTORPR1	☐	QFAKTORPR1	QANZAHL1	INT1	3	0	Factor for Determining the Sample Size of a Primary Sample
27	FORMEL1	☐	QFORMELP	QFORMEL	CHAR	60	0	Formula Field for the Number of Samples
28	GEBINDER	☐	QGEBINDER	QGEBINDET	CHAR	6	0	Physical-Sample Container for Reserve Sample	TQ42
29	ANZRUECKL	☐	QANZRUECKL	QANZAHL1	INT1	3	0	Number of Reserve Samples
30	UMFRUECKL	☐	QUMFRUECKL	QMENGEPLOS	QUAN	13	3	Size of Reserve Sample
31	MERUECKL	☐	QMERUECKL	MEINS	UNIT	3	0	Unit of Measure for Reserve Sample	T006
32	GEBINDE2	☐	QGEBINDE2	QGEBINDET	CHAR	6	0	Physical-Sample Container for Drawing Pooled Sample	TQ42
33	STPRPLAN2	☐	QSTPRPLAN2	QSTPRPLAN	CHAR	3	0	Sampling Scheme for Pooled Sample Stage of Sample Drawing	QDPK
34	PRSCHAERF2	☐	QPRSCHAER2	QPRSCHAERF	NUMC	3	0	Insp. Severity of Samp.-Proc. at Pooled Sample Stage	QDEP
35	AQLWERT2	☐	QAQLWERT2	QAQLWERT	DEC	7	3	AQL Value in Pooled Sample Stage
36	PRANZ2	☐	QPRANZ2	QANZAHL1	INT1	3	0	Fixed No. of Physical Samples for Pooled Sample Stage
37	FAKTORPR2	☐	QFAKTORPR2	QANZAHL1	INT1	3	0	Factor for Determining the Sample Size of a Pooled Sample
38	FORMEL2	☐	QFORMELP	QFORMEL	CHAR	60	0	Formula Field for the Number of Samples
39	ERSTELLER	☐	QERSTELLER	QAENDERER	CHAR	12	0	Name of User Who Created the Data Record
40	AENDERER	☐	QAENDERER	QAENDERER	CHAR	12	0	Name of User who Most Recently Changed the Data Record
41	DATUMERST	☐	QDATUMERST	DATUM	DATS	8	0	Date on Which the Data Record Was Created
42	ZEITERST	☐	QERSTZEIT	QZEIT	TIMS	6	0	Time Data Record Was Created
43	DATUMAEND	☐	QDATUMAEND	DATUM	DATS	8	0	Date on Which Data Record Was Changed
44	ZEITAEND	☐	QAENZEIT	QZEIT	TIMS	6	0	Time of Last Data Record Change
45	ANZENTPR	☐	QPRANZ1	QANZAHL1	INT1	3	0	Fixed No. of Physical Samples for Primary Sample Stage
46	UMFENTPR	☐	QPHYSPRUM	QMENGEPLOS	QUAN	13	3	Size of the Physical Sample
47	ANZMISCHPR	☐	QPRANZ2	QANZAHL1	INT1	3	0	Fixed No. of Physical Samples for Pooled Sample Stage
48	UMFMISCHPR	☐	QPHYSPRUM	QMENGEPLOS	QUAN	13	3	Size of the Physical Sample

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	QSAMPTAB	GEBINDE1	TQ42	GEBINDETYP	REF	1	CN
2	QSAMPTAB	GEBINDE2	TQ42	GEBINDETYP	REF	1	CN
3	QSAMPTAB	GEBINDER	TQ42	GEBINDETYP	REF	C	CN
4	QSAMPTAB	LOSGEBEH	T006	MSEHI	REF	C	CN
5	QSAMPTAB	MANDT	T000	MANDT	KEY	1	CN
6	QSAMPTAB	MERUECKL	T006	MSEHI	REF	1	CN
7	QSAMPTAB	PRSCHAERF1	QDEP	PRSCHAERFE
8	QSAMPTAB	PRSCHAERF2	QDEP	PRSCHAERFE
9	QSAMPTAB	PRZIEHVERF	QPRVK	PRZIEHVERF	KEY	1	CN
10	QSAMPTAB	STPRPLAN1	QDPK	STPRPLAN	REF	1	CN
11	QSAMPTAB	STPRPLAN2	QDPK	STPRPLAN	REF	1	CN

History

Last changed by/on	SAP	20110901
SAP Release Created in
