SAP ABAP Table QAS2 (Sample Results (Single Values))

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ QM-QC-IS (Application Component) Information System
     ⤷ QG01 (Package) QM quality inspection analysis

Basic Data

Table Category	INTTAB	Structure

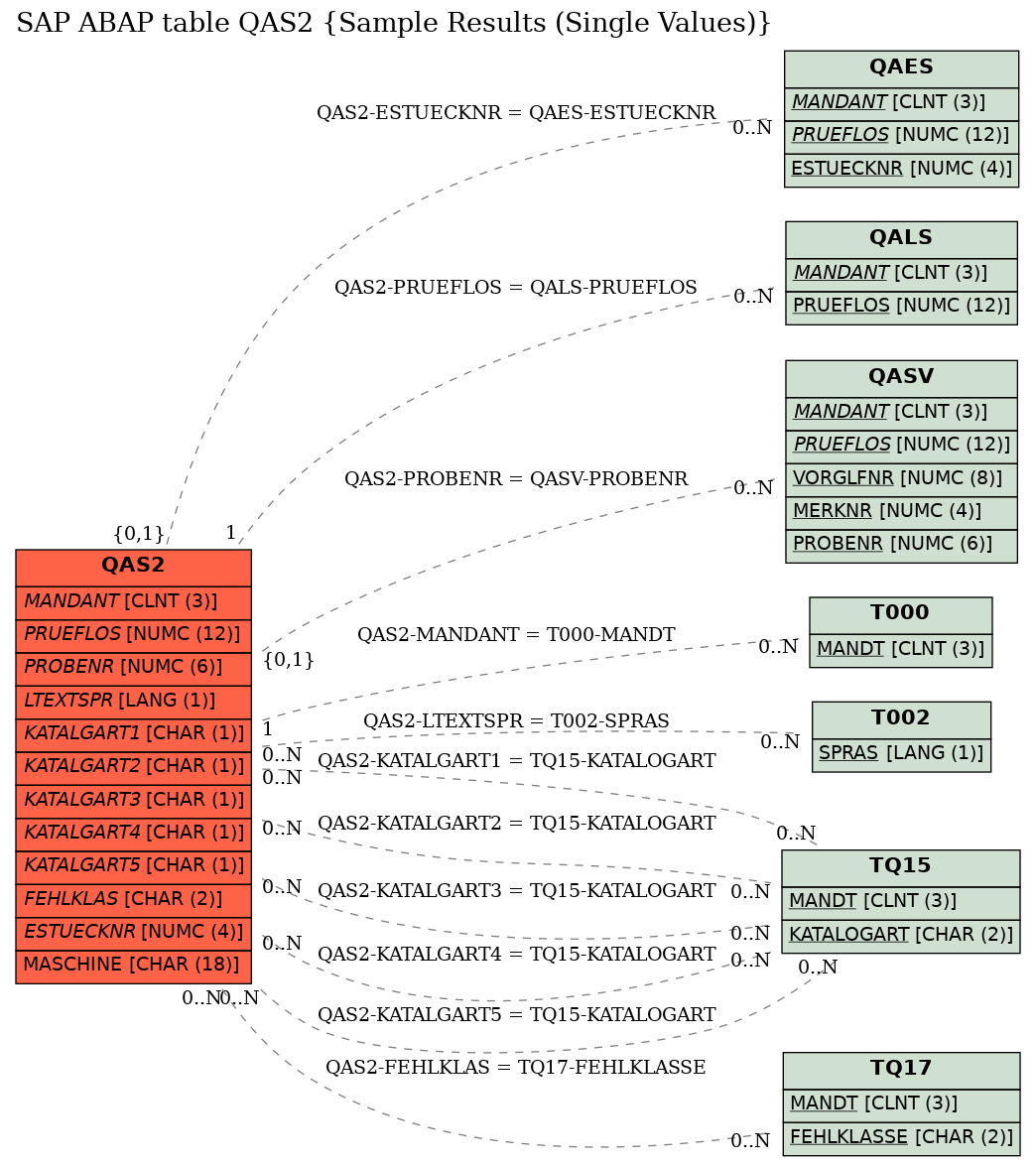

Structure	QAS2	Table Relationship Diagram
Short Description	Sample Results (Single Values)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Results table for the sample unit
2	MANDANT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	PRUEFLOS	☐	QPLOS	QPLOS	NUMC	12	0	Inspection Lot Number	QALS
4	VORGLFNR	☐	QLFNKN	KNTNR	NUMC	8	0	Current Node Number from Order Counter APLZL
5	MERKNR	☐	QMERKNRP	QMERKNRP	NUMC	4	0	Inspection Characteristic Number
6	DETAILERG	☐	QDETAILERG	QDETAILERG	NUMC	8	0	Number of the Individual Result
7	ATTRIBUT	☐	QATTRIBUT	QATTRIBUT	CHAR	1	0	Attribute of the Results Record (Valid, Invalid,...)
8	ERSTELLER	☐	QERSTELLER	QAENDERER	CHAR	12	0	Name of User Who Created the Data Record
9	ERSTELLDAT	☐	QDATUMERST	DATUM	DATS	8	0	Date on Which the Data Record Was Created
10	AENDERER	☐	QAENDERER	QAENDERER	CHAR	12	0	Name of User who Most Recently Changed the Data Record
11	AENDERDAT	☐	QDATUMAEND	DATUM	DATS	8	0	Date on Which Data Record Was Changed
12	PROBENR	☐	QPROBENR	QPROBENR	NUMC	6	0	Sample Number	QASV
13	STUECKNR	☐	QSTUECKNR	QZAEHL	NUMC	4	0	Counter for Inspection Unit Number
14	PRUEFER	☐	QPRUEFER	QPRUEFER	CHAR	12	0	Name of the Inspector
15	PRUEFDATUV	☐	QPRUEFDATV	DATUM	DATS	8	0	Inspection Start Date
16	PRUEFDATUB	☐	QPRUEFDATB	DATUM	DATS	8	0	End Date of the Inspection
17	PRUEFZEITV	☐	QPRUEFZTV	QZEIT	TIMS	6	0	Starting Time of the Inspection
18	PRUEFZEITB	☐	QPRUEFZTB	QZEIT	TIMS	6	0	End Time of the Inspection
19	PRUEFBEMKT	☐	QKURZTEXT	QKURZTEXT	CHAR	40	0	Short Text
20	PRLTEXTKZ	☐	QLTEXTKZ	QKZ	CHAR	1	0	Inspection Characteristic Long Text Exists
21	LTEXTSPR	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
22	MESSWERTNI	☐	QMESSWRTNI	QNOTINI	CHAR	1	0	Measured Value is Not Initial
23	MESSWERT	☐	QMESSWERT	QURWERT	FLTP	16	16	Measured Value for a Sample Unit
24	KATALGART1	☐	QKATART	QKATART	CHAR	1	0	Catalog	TQ15
25	GRUPPE1	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
26	CODE1	☐	QCODE	QCODE	CHAR	4	0	Code	*
27	VERSION1	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
28	KATALGART2	☐	QKATART	QKATART	CHAR	1	0	Catalog	TQ15
29	GRUPPE2	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
30	CODE2	☐	QCODE	QCODE	CHAR	4	0	Code	*
31	VERSION2	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
32	KATALGART3	☐	QKATART	QKATART	CHAR	1	0	Catalog	TQ15
33	GRUPPE3	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
34	CODE3	☐	QCODE	QCODE	CHAR	4	0	Code	*
35	VERSION3	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
36	KATALGART4	☐	QKATART	QKATART	CHAR	1	0	Catalog	TQ15
37	GRUPPE4	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
38	CODE4	☐	QCODE	QCODE	CHAR	4	0	Code	*
39	VERSION4	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
40	KATALGART5	☐	QKATART	QKATART	CHAR	1	0	Catalog	TQ15
41	GRUPVERS5	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
42	GRUPPE5	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
43	CODE5	☐	QCODE	QCODE	CHAR	4	0	Code	*
44	VERSION5	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
45	ANZFEHLER	☐	QANZFEHL1	QANZAHL1	INT1	3	0	Number of Defects Found
46	FEHLKLAS	☐	QFEHLKLAS	QFEHLKLAS	CHAR	2	0	Defect class	TQ17
47	MBEWERTG	☐	QMBEWERTG	QEEBEWERTG	CHAR	1	0	Inspection Result Valuation
48	ESTUECKNR	☐	QESTUECKNR	QESTUECKNR	NUMC	4	0	Number of the Single Unit in the Inspection Lot	QAES
49	SERIALNR	☐	QSERIALNR	QSERIALNR	CHAR	18	0	Single-Unit Number for the Unit to Be Inspected
50	MASCHINE	☐	QMASCHINE	QEQUNR	CHAR	18	0	General Information	*
51	POSITION	☐	QPRPOS	QPRPOS	NUMC	4	0	Test Position
52	ZEITERSTL	☐	QZEITERSTL	QZEIT	TIMS	6	0	Time at which data record was created
53	ZEITAEND	☐	QZEITAEND	QZEIT	TIMS	6	0	Time at which data record was last changed
54	ORIGINAL_INPUT	☐	QORIGINAL_INPUT	CHAR25	CHAR	25	0	Original Value Before Input Processing
55	DIFF_DEC_PLACES	☐	QDIFF_DEC_PLACES	INT2	INT2	5	0	Different Number of Decimal Places
56	INPPROC_READY	☐	QINPPROC_READY	QKZ	CHAR	1	0	Input Processing Successfully Completed

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	QAS2	ESTUECKNR	QAES	ESTUECKNR	REF	C	CN
2	QAS2	FEHLKLAS	TQ17	FEHLKLASSE
3	QAS2	KATALGART1	TQ15	KATALOGART
4	QAS2	KATALGART2	TQ15	KATALOGART
5	QAS2	KATALGART3	TQ15	KATALOGART
6	QAS2	KATALGART4	TQ15	KATALOGART
7	QAS2	KATALGART5	TQ15	KATALOGART
8	QAS2	LTEXTSPR	T002	SPRAS
9	QAS2	MANDANT	T000	MANDT	KEY	1	CN
10	QAS2	PROBENR	QASV	PROBENR	REF	C	CN
11	QAS2	PRUEFLOS	QALS	PRUEFLOS	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
