SAP ABAP Table PVFRMM (RMS-FRM: PVS-FRM Variant, Material-Related Data)
Hierarchy
☛
EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
⤷ PLM-RM (Application Component) Recipe Management
⤷ RMSFRMIPP (Package) RMS-FRM: RMS Formula - iPPE Integration
⤷ PLM-RM (Application Component) Recipe Management
⤷ RMSFRMIPP (Package) RMS-FRM: RMS Formula - iPPE Integration
Basic Data
Table Category | TRANSP | Transparent table |

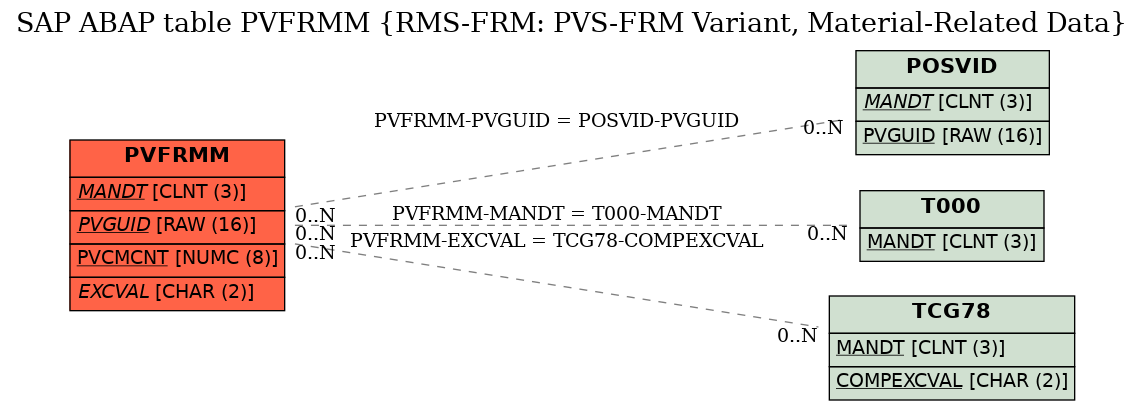

Transparent table | PVFRMM | Table Relationship Diagram |
Short Description | RMS-FRM: PVS-FRM Variant, Material-Related Data |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | A | Application Table (Master- and Transaction Data) |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
2 | PVGUID | FRMLE_PVGUID | SYSUUID | RAW | 16 | 0 | PVS Variant Identifier | POSVID | |
3 | PVCMCNT | FRMLE_PVCNT | NUMC8 | NUMC | 8 | 0 | Internal Counter of PVS Variant Table Entries | ||
4 | .INCLUDE | 0 | 0 | RMS-FRM: Material Data of PVS Item Variant | |||||
5 | DEF_EXPL_FLG | FRMLE_DEFEXPL_FLG | FRMLD_DEFEXPL_FLG | CHAR | 1 | 0 | Standard Explosion | ||
6 | .INCLUDE | 0 | 0 | RMS-FRM: Material Item | |||||
7 | .INCLUDE | 0 | 0 | RMS-FRM: Material with Value Range | |||||
8 | MATNR | FRMLE_MATNR | MATNR | CHAR | 18 | 0 | Material Number of an Item | * | |
9 | .INCLUDE | 0 | 0 | RMS-FRM: Value Range of a Component | |||||
10 | COMPTGT | FRMLE_COMPTGT | EHSBD_QUAN6_6 | QUAN | 12 | 6 | Quantity of a Material or Substance Item | ||
11 | COMPTGT_ERR_FLG | FRMLE_ERR_FLG | FLAG | CHAR | 1 | 0 | Error When Converting Units | ||
12 | OPLOW | FRMLE_OPLOW | FRMLD_OPLOW | CHAR | 2 | 0 | Operator for Lower Limit | ||
13 | COMPLOW | FRMLE_COMPLOW | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Value of Lower Limit of Item Quantity | ||
14 | OPUP | FRMLE_OPUP | FRMLD_OPUP | CHAR | 2 | 0 | Operator for Upper Limit | ||
15 | COMPUPP | FRMLE_COMPUPP | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Value of Upper Limit of Item Quantity | ||
16 | UNIT | FRMLE_COMPUNIT | MEINS | UNIT | 3 | 0 | Unit of Measure of a Material or Substance Item | * | |
17 | EXCVAL | FRMLE_EXCVAL | ESDCOMPEXCVAL | CHAR | 2 | 0 | Exception Value | TCG78 | |
18 | ADDVAL | FRMLE_ADDVAL | CHAR030 | CHAR | 30 | 0 | Freely Available Field of Type Character String w.30 Characs | ||
19 | COMPTGT_FLT | FRMLE_FLT | FLTP | FLTP | 16 | 16 | Floating-Point Value | ||
20 | COMPLOW_FLT | FRMLE_COMPLOW_FLT | FLTP | FLTP | 16 | 16 | Lower Limit Value of Item Quantity (Floating Point Value) | ||
21 | COMPUPP_FLT | FRMLE_COMPUPP_FLT | FLTP | FLTP | 16 | 16 | Upper Limit Value of Item Quantity (Floating Point Value) | ||
22 | OVR_FACTOR | FRMLE_OVR_FACTOR | FRMLD_OVR | NUMC | 3 | 0 | Overrun Factor | ||
23 | FLG_1_N_MAT | FRMLE_1_N_MAT | XFELD | CHAR | 1 | 0 | Group Item | ||
24 | MAT_DELFLG | FRMLE_DEL_FLG | XFELD | CHAR | 1 | 0 | Deletion Indicator | ||
25 | MAT_RECN | FRMLE_RECN | FRMLD_GUID | CHAR | 32 | 0 | RMS-FRM: Object Identifier |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | PVFRMM | EXCVAL | TCG78 | COMPEXCVAL | |||
2 | PVFRMM | MANDT | T000 | MANDT | |||
3 | PVFRMM | PVGUID | POSVID | PVGUID |
History
Last changed by/on | SAP | 20130529 |
SAP Release Created in | 46C |
