SAP ABAP Table PPFTBCSTE (Transmission Medium Database Table (Template))

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-SRV-GBT-PPF (Application Component) Post Processing Framework
     ⤷ SPPF_MEDIA (Package) PPF: Central Media

Basic Data

Table Category	TRANSP	Transparent table

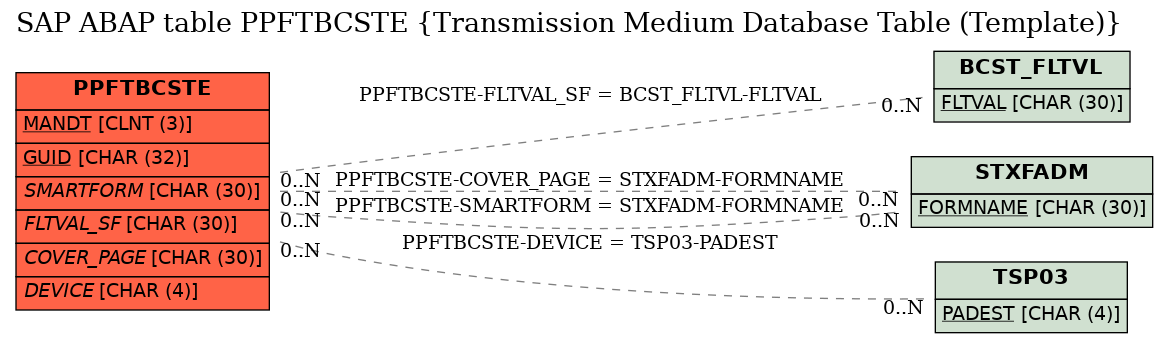

Transparent table	PPFTBCSTE	Table Relationship Diagram
Short Description	Transmission Medium Database Table (Template)

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	SYMANDT	MANDT	CLNT	3	0	Client ID	*
2	GUID	☑	GUID_32	SYSUUID_C	CHAR	32	0	GUID in 'CHAR' Format in Uppercase
3	.INCLUDE	☐				0	0	Include Structure for Transmission Medium (Templ.)
4	CUSTOB_CLS	☐	OS_GUID	SYSUUID	RAW	16	0	Globally Unique Identifier
5	CUSTOB_OID	☐	OS_GUID	SYSUUID	RAW	16	0	Globally Unique Identifier
6	NEXT_CLS	☐	OS_GUID	SYSUUID	RAW	16	0	Globally Unique Identifier
7	NEXT_OID	☐	OS_GUID	SYSUUID	RAW	16	0	Globally Unique Identifier
8	INVALID	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
9	ARCHVMODE	☐	PPFDBCSARC	PPFDBCSARC	CHAR	1	0	Archive Mode for External Sending
10	SMARTFORM	☐	TDSFNAME	TDSFNAME	CHAR	30	0	Smart Forms: Form Name	STXFADM
11	FLTVAL_SF	☐	BCSDFLTVAL	BCSDFLTVAL	CHAR	30	0	Filter Value for BADI DOC_PERSONALIZE_BCS	BCST_FLTVL
12	COVER_PAGE	☐	TDSFNAME	TDSFNAME	CHAR	30	0	Smart Forms: Form Name	STXFADM
13	FLTVAL_COV	☐	BCSDFLTVAL	BCSDFLTVAL	CHAR	30	0	Filter Value for BADI DOC_PERSONALIZE_BCS	*
14	USECUSTDAT	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
15	COMMTYPE	☐	BCSDCOMTYP	BCSDCOMTYP	CHAR	3	0	Communication Method for 'External Communication'
16	SFMAINDOC	☐	PPFDSFMAIN	PPFDSFMAIN	CHAR	1	0	Smart Form as Main Document
17	.INCLUDE	☐				0	0	PPF: Include Structure for BCS Medium (Templ.) - Print
18	DEPARTMENT	☐	SYPRABT	SYCHAR12K	CHAR	12	0	Spool Department Name
19	COVER	☐	SYPRSAP	SYPRSAP	CHAR	1	0	Print SAP Cover Page
20	COVERTEXT	☐	SYPRTXT	SYCHAR68K	CHAR	68	0	Spool Description
21	AUTHORIZTN	☐	SYPRBER	SYCHAR12	CHAR	12	0	Print: Authorization
22	DEVICE	☐	RSPOPNAME	RSPOPNAME	CHAR	4	0	Spool: Output device	TSP03
23	SPOOLNAME	☐	RSPO0NAME	CHAR6	CHAR	6	0	Spool request: Name
24	SUFFIX1	☐	RSPO1NAME	CHAR4	CHAR	4	0	Spool request: Suffix 1
25	SUFFIX2	☐	RSPO2NAME	CHAR12	CHAR	12	0	Spool request: Suffix 2
26	PRNTIMMED	☐	SYPRIMM	SYCHAR01	CHAR	1	0	Immediate Spool Print
27	DELSPOOL	☐	SYPRREL	SYCHAR01	CHAR	1	0	Immediate Spool Deletion
28	COPIES	☐	TDCOPIES	TDCOPIES	NUMC	3	0	Number of Identical Copies
29	NEWSPOOL	☐	SYPRNEW	SYCHAR01	CHAR	1	0	New Spool Request
30	TDGROUP	☐	TDGROUP	TDGROUP	CHAR	1	0	Grouping Copies
31	RECIPIENT	☐	SYPRREC	SYCHAR12	CHAR	12	0	Spool Recipient Name
32	SEND_OID	☐	OS_GUID	SYSUUID	RAW	16	0	Globally Unique Identifier
33	SEND_CLS	☐	OS_GUID	SYSUUID	RAW	16	0	Globally Unique Identifier
34	PERSTYPE	☐	BCS_PERS	BCSD_PERS	CHAR	1	0	Type of Possible Personalization of a Document
35	USEPRNTDET	☐	PPFDUSEPDT	PPFDUSEPDT	CHAR	1	0	Use Dynamic Printer Determination
36	FORMTYPE	☐	FPTOOLTYPE	FPTOOLTYPE	CHAR	1	0	Form Formatting Type
37	COVERTYPE	☐	FPTOOLTYPE	FPTOOLTYPE	CHAR	1	0	Form Formatting Type

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	PPFTBCSTE	COVER_PAGE	STXFADM	FORMNAME
2	PPFTBCSTE	DEVICE	TSP03	PADEST
3	PPFTBCSTE	FLTVAL_SF	BCST_FLTVL	FLTVAL
4	PPFTBCSTE	SMARTFORM	STXFADM	FORMNAME

History

Last changed by/on	SAP	20130604
SAP Release Created in	610
