SAP ABAP Table ORDERADM_H (Reporting Structure for Ext. ORDERADM_H)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-ANA-RFW (Application Component) Reporting Framework
     ⤷ CRM_REPORT (Package) Operative Reporting in CRM

Basic Data

Table Category	INTTAB	Structure

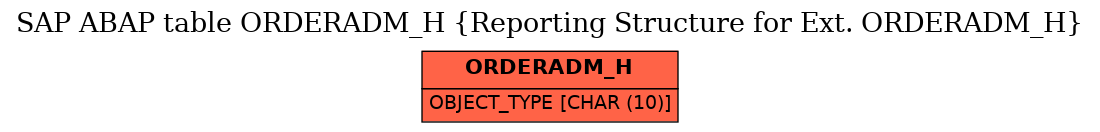

Structure	ORDERADM_H	Table Relationship Diagram
Short Description	Reporting Structure for Ext. ORDERADM_H

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Reporting Structure for Ext. ORDERADM_H
2	CHANGED_AT_DATE	☐	SYDATUM	SYDATS	DATS	8	0	System Date
3	CONCATSTAT	☐	J_STEXT	TEXT40	CHAR	40	0	System status line
4	CONCATSTATUSER	☐	J_STEXT	TEXT40	CHAR	40	0	System status line
5	PROCESS_TYPE_TXT	☐	CRMT_REPORT_PROCESS_TYPE_TXT	DDTEXT	CHAR	60	0	Text Description for Transaction Category
6	.INCLUDE	☐				0	0	Business Transaction
7	.INCLUDE	☐				0	0	One Order: Key Fields
8	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
9	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
10	.INCLUDE	☐				0	0	General Header Data - Structure of External Fields
11	OBJECT_ID	☐	CRMT_OBJECT_ID_DB	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
12	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE_DB	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
13	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
14	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
15	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
16	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
17	CRM_RELEASE	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
18	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
19	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
20	.INCLUDE	☐				0	0	Time and User of Last Transaction Processing
21	CREATED_AT	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
22	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
23	CHANGED_AT	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
24	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
25	HEAD_CHANGED_AT	☐	CRMT_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
26	.INCLUDE	☐				0	0	EEW Extension
27	ORDERADM_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
28	.INCLUDE	☐				0	0
29	.INCLU--AP	☐				0	0	Additional Fields in ORDERADM_H After Decoupling
30	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
31	BTX_CLASS	☐	CRMT_TRANSACTION_CLASSIFICATN	CRM_TRANSACTION_CLASSIFICATION	CHAR	1	0	CRM Business Transaction Classification
32	AUTH_SCOPE	☐	CRM_AUTH_SCOPE	CRM_AUTH_SCOPE	NUMC	6	0	Authorization Scope	*
33	COMP_TX_HEADER	☐	CRMT_COMP_TX_HEADER_GUID	SYSUUID	RAW	16	0	GUID of Composite Transaction Header
34	.INCLUDE	☐				0	0	General Header Data - Structure of System Fields
35	OBJECT_TYPE	☐	CRMT_SUBOBJECT_CATEGORY_DB	CRM_OJ_NAME_PROCESS	CHAR	10	0	Business Trans. Cat.	*
36	ARCHIVING_FLAG	☐	CRMT_ARCHIVING_FLAG	CRM_BOOLEAN	CHAR	1	0	Indicator Whether the Business Transaction Can Be Archived
37	DESCRIPTION_UC	☐	CRMT_PROCESS_DESCRIPTION_UC	CRM_PROCESS_DESCRIPTION_UC	CHAR	40	0	Transaction Description (Upper Case)
38	OBJECT_ID_OK	☐	CRMT_OBJECT_ID_OK	CRM_BOOLEAN	CHAR	1	0	Indicator Whether Business Transaction Number is Correct
39	VERIFY_DATE	☐	CRMT_VERIFY_DATE	BCOS_TSTMP	DEC	15	0	Time Period of Last Archiving Attempt
40	CRM_CHANGED_AT	☐	CRMT_ONLINE_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change in CRM Online
41	POSTPROCESS_AT	☐	CRMT_SUBMIT_FOR_POSTPROCESS_AT	BCOS_TSTMP	DEC	15	0	Time at Which Transaction Is Saved for Postprocessing
42	.INCLUDE	☐				0	0	Control Data of Predecessor Document
43	PREDECESSOR_PROCESS	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
44	PREDECESSOR_OBJECT_TYPE	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	*
45	PREDECESSOR_LOG_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
46	BIN_RELATION_TYPE	☐	CRMT_BIN_RELATION_TYPE	CRM_BIN_RELATION_TYPE	CHAR	4	0	Binary Relation Type for Object Relationship Service
47	OBJECT_TYPE_TXT	☐	SAEOBJTEXT	SADC40	CHAR	40	0	Object text for language-dependent table

History

Last changed by/on	SAP	20140802
SAP Release Created in	20B
