SAP ABAP Table ODP_S_HIERARCHY_ELEMENT (Hierarchy Element)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷
BC-BW-SRV (Application Component) BW Generation Tool and Set Object
⤷
SODPS (Package) Central Components for Operartional Data Provisioning
SAP_BASIS (Software Component) SAP Basis Component⤷
BC-BW-SRV (Application Component) BW Generation Tool and Set Object⤷
SODPS (Package) Central Components for Operartional Data Provisioning
Basic Data
| Table Category | INTTAB | Structure |
| Structure | ODP_S_HIERARCHY_ELEMENT |

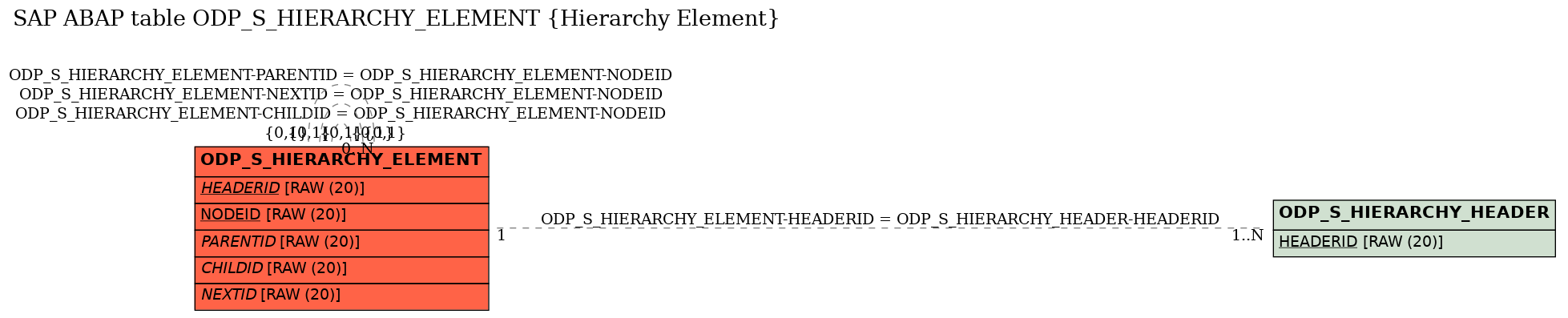

Table Relationship Diagram
|
| Short Description | Hierarchy Element |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | ||
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  HEADERID |
ODP_HEADERID | RSMDS_HASHX | RAW | 20 | 0 | Hash ID for Hierarchy Header | ODP_S_HIERARCHY_HEADER | |
| 2 | NODEID |
ODP_NODEID | RSMDS_HASHX | RAW | 20 | 0 | Hash ID for Hierarchy Header | ||
| 3 | PARENTID |
ODP_PARENTID | RSMDS_HASHX | RAW | 20 | 0 | Parent Element ID | ODP_S_HIERARCHY_ELEMENT | |
| 4 | CHILDID |
ODP_CHILDID | RSMDS_HASHX | RAW | 20 | 0 | ID of First Child Element | ODP_S_HIERARCHY_ELEMENT | |
| 5 | NEXTID |
ODP_NEXTID | RSMDS_HASHX | RAW | 20 | 0 | ID of Next Sibling Element | ODP_S_HIERARCHY_ELEMENT | |
| 6 | TLEVEL |
RSTLEVEL | RSTLEVEL | NUMC | 2 | 0 | Level of a hierarchy node | ||
| 7 | INTERVL |
RSINTERVL | CHAR1 | CHAR | 1 | 0 | Flag: Node is interval | ||
| 8 | .INCLUDE |
0 | 0 | Semantic Key of Hierarchy Element | |||||
| 9 | FIELDNAME_ASC |
FIELDNAME | FDNAME | CHAR | 30 | 0 | Field Name | * | |
| 10 | DATETO |
RSDATETO | DATUM | DATS | 8 | 0 | Valid-to date | ||
| 11 | DATEFROM |
RSDATEFROM | DATUM | DATS | 8 | 0 | Valid-From Date | ||
| 12 | FOLDERNAME |
ODP_FOLDERNAME | RSNODENAME | CHAR | 32 | 0 | Name of Hierarchy Folder | ||
| 13 | LINKCOUNT |
ODP_LINKCOUNT | ODP_LINKCOUNT | INT4 | 10 | 0 | Link Counter for Duplicate Hierarchy Elements |
Foreign Keys
| |
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right |
|---|---|---|---|---|---|---|---|
 |
|
|
|
|
|
|
|
| 1 | ODP_S_HIERARCHY_ELEMENT | CHILDID |  ODP_S_HIERARCHY_ELEMENT |
NODEID |
KEY | C | C |
| 2 | ODP_S_HIERARCHY_ELEMENT | HEADERID | ODP_S_HIERARCHY_HEADER |
HEADERID |
KEY | 1 | N |
| 3 | ODP_S_HIERARCHY_ELEMENT | NEXTID | ODP_S_HIERARCHY_ELEMENT |
NODEID |
KEY | C | C |
| 4 | ODP_S_HIERARCHY_ELEMENT | PARENTID | ODP_S_HIERARCHY_ELEMENT |
NODEID |
KEY | C | CN |
History
| Last changed by/on | SAP | 20110908 |
| SAP Release Created in | 703 |
