SAP ABAP Table MGV_COCH (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

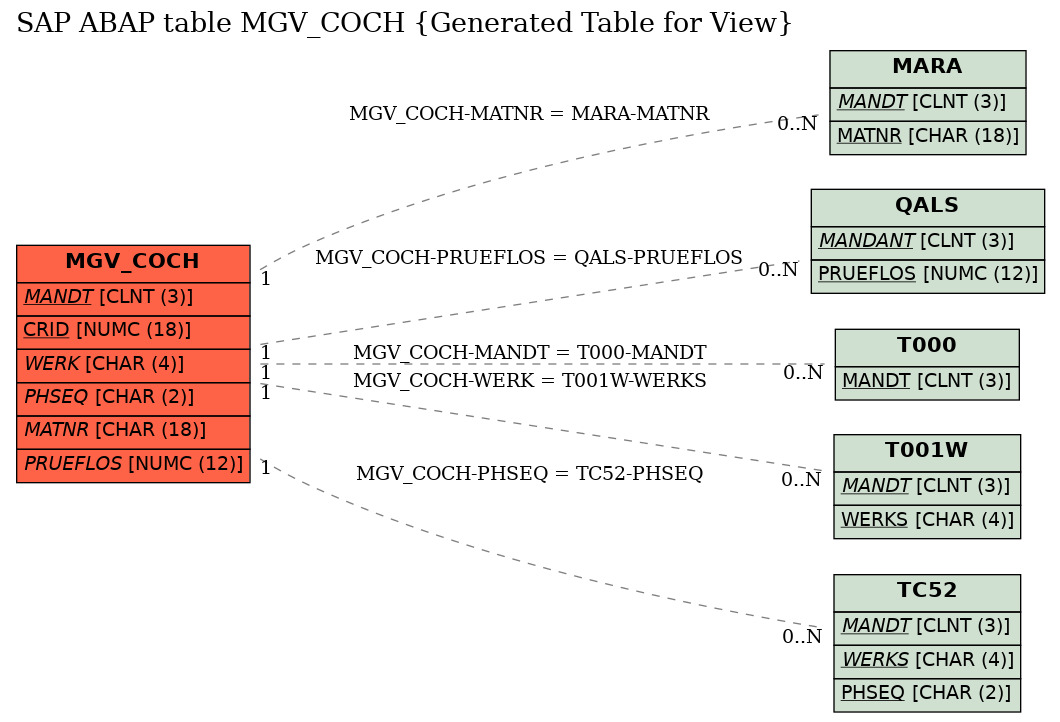

General view structure	MGV_COCH	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	CRID	☑	CO_CRID	CO_CRID	NUMC	18	0	Control recipe number
3	WERK	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
4	BID	☐	CO_BID	CO_BID	CHAR	12	0	Process order
5	PHSEQ	☐	PHSEQ	PHSEQ	CHAR	2	0	Control Recipe Destination	TC52
6	ADRES	☐	ADR	CHAR32	CHAR	32	0	Address of the Control Recipe Destination
7	COTYP	☐	COMTY	COMTY	CHAR	1	0	Type of Control Recipe Destination
8	TSTKZ	☐	TSTKZ	FLAG	CHAR	1	0	Indicator: Message or Control Recipe for Test Purposes
9	CRSTAT	☐	CO_CRSTAT	CO_CRSTAT	CHAR	5	0	Control recipe status
10	ANDAT	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
11	ANUZT	☐	ANUZT	UZEIT	TIMS	6	0	Time when the record was created
12	AEDAT	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
13	KTXT	☐	AUFTEXT	TEXT40	CHAR	40	0	Description
14	MATNR	☐	PI_MATNR	MATNR	CHAR	18	0	Material Number for Order	MARA
15	MATXT	☐	PI_MATXT	TEXT40	CHAR	40	0	Material Description
16	PRUEFLOS	☐	PI_QPLOS	QPLOS	NUMC	12	0	Inspection Lot Number	QALS
17	ERRKZ	☐	CO_ERRKZ	CHAR1	CHAR	1	0	Processing status of the process message/the control recipe
18	ARFCIPID	☐	ARFCIPID	ARFCIPID	CHAR	8	0	Host ID (IP ID
19	ARFCPID	☐	ARFCPID	ARFCPID	CHAR	4	0	Process ID
20	ARFCTIME	☐	ARFCTIME	ARFCTIME	CHAR	8	0	Time Stamp
21	ARFCTIDCNT	☐	ARFCTIDCNT	ARFCTIDCNT	CHAR	4	0	Transaction ID (LUW -> COMMIT WORK)
22	EXSTAT	☐	CO_EXSTAT	CO_CRSTAT	CHAR	5	0	Execution status of a control recipe
23	CHARG	☐	CHARG_D	CHARG	CHAR	10	0	Batch Number
24	FSAVD	☐	FSAVD	DATUM	DATS	8	0	Earliest scheduled start: Execution (date)
25	FSAVZ	☐	FSAVZ	ATIME	TIMS	6	0	Earliest scheduled start: Execution (time)
26	DECNTRL_PRC	☐	DECNTRL_PRC	CHAR1	CHAR	1	0	Indicator for Decentralized Control Recipe Execution
27	XS_ID	☐	CMX_CR_XS_GUID	SYSUUID_22	CHAR	22	0	XSteps: Unique ID of a Node
28	MATNR_EXT	☐	MATNR_EXT	MATNR_EXT	CHAR	40	0	External Long Material Number
29	MATNR_VERS	☐	MATNR_VERS	MATNR_VERS	CHAR	10	0	Material Version Number

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	MGV_COCH	MANDT	T000	MANDT	KEY	1	CN
2	MGV_COCH	MATNR	MARA	MATNR	REF	1	CN
3	MGV_COCH	PHSEQ	TC52	PHSEQ	KEY	1	CN
4	MGV_COCH	PRUEFLOS	QALS	PRUEFLOS	REF	1	CN
5	MGV_COCH	WERK	T001W	WERKS	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
