SAP ABAP Table J_3RFREP_TECHDAT (Reporting Hierarchy Technical Settings)

Hierarchy

☛ SAP_FIN (Software Component) SAP_FIN
   ⤷ FI-LOC (Application Component) Localization
     ⤷ J3RFTAX (Package) Tax Accounting

Basic Data

Table Category	TRANSP	Transparent table

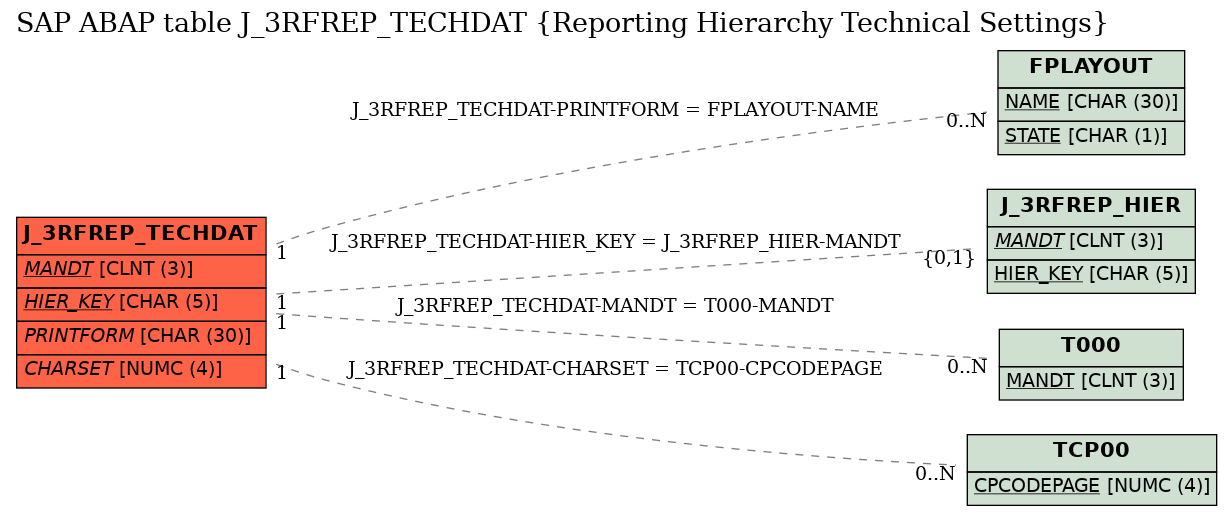

Transparent table	J_3RFREP_TECHDAT	Table Relationship Diagram
Short Description	Reporting Hierarchy Technical Settings

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	Key Fields of Reporting Hierarchy Object
2	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
3	HIER_KEY	☑	J_3RF_REP_HIER_KEY	J_3RF_REP_HIER_KEY	CHAR	5	0	Reporting Hierarchy Code	J_3RFREP_HIER
4	.INCLUDE	☐				0	0	Technical Settings of Reporting Hierarchy
5	REP_FILENAME	☐	J_3RF_REP_FNAME		CHAR	70	0	Report File Name for Reporting Hierarchy
6	PRINTFORM	☐	J_3RF_REP_PRINTFORM	FPNAME	CHAR	30	0	Name of Form Object assigned to Reporting Hierarchy	FPLAYOUT
7	CHARSET	☐	J_3RF_REP_CHARSET	CPCODEPAGE	NUMC	4	0	SAP Character Set ID for the Report	TCP00
8	XSD_PATH	☐	J_3RF_REP_XSDPATH		CHAR	70	0	Path to XSD file
9	XSLT_PATH	☐	J_3RF_REP_XSLTPATH		CHAR	70	0	XSLT File Path
10	CALC_DIRECTION	☐	J_3RF_REP_CALCDIR	FLAG	CHAR	1	0	Attributes calculation direction
11	SPLITTABLE	☐	J_3RF_REP_HAVE_SPL	FLAG	CHAR	1	0	Hierarchy is splittable into several XML files
12	RENDERER	☐	SEOCLSNAME	SEOCLSNAME	CHAR	30	0	Object Type Name

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	J_3RFREP_TECHDAT	CHARSET	TCP00	CPCODEPAGE	KEY	1	CN
2	J_3RFREP_TECHDAT	HIER_KEY	J_3RFREP_HIER	MANDT	KEY	1	C
3	J_3RFREP_TECHDAT	MANDT	T000	MANDT	KEY	1	CN
4	J_3RFREP_TECHDAT	PRINTFORM	FPLAYOUT	NAME	REF	1	CN

History

Last changed by/on	SAP	20140121
SAP Release Created in	607
