SAP ABAP Table J_3RFREP_OBJ_MAIN (Reporting Object Properties)

Hierarchy

☛ SAP_FIN (Software Component) SAP_FIN
   ⤷ FI-LOC (Application Component) Localization
     ⤷ J3RFTAX (Package) Tax Accounting

Basic Data

Table Category	INTTAB	Structure

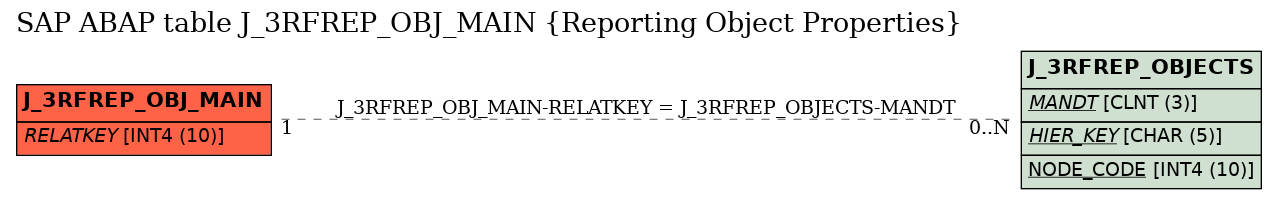

Structure	J_3RFREP_OBJ_MAIN	Table Relationship Diagram
Short Description	Reporting Object Properties

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	NODE_NAME	☐	J_3RF_REP_NODE_NAME	J_3RF_REP_NODE_NAME	CHAR	21	0	Reporting Hierarchy Object Name
2	NODE_KEY	☐	SEU_ID	SEU_ID	NUMC	6	0	Internal: Node ID
3	RELATKEY	☐	J_3RF_REP_OBJECTREF	J_3RF_REP_OBJECT	INT4	10	0	Root Reporting Object	J_3RFREP_OBJECTS
4	NODE_MANDATORY	☐	J_3RF_REP_MANDATORY	BOOLEAN	CHAR	1	0	Specifies, whether Reporting Hierarchy Element is mandatory
5	MIN_OCCURS	☐	J_3RF_REP_MINOCCURS		INT2	5	0	Minimum Number of Occurences of the Reporting Object
6	MAX_OCCURS	☐	J_3RF_REP_MAXOCCURS		INT2	5	0	Maximum Number of Occurances of the Reporting Object
7	HAS_INCCRIT	☐	J_3RF_REP_USE_CRITERIA	J_3RF_REP_USE_CRITERIA	INT1	3	0	Inclusion Criteria Status of the Reporting Hierarchy Object
8	CRIT_CONC_METH	☐	J_3RF_REP_CONCAT_METHOD	J_3RF_REP_CONCAT_METHOD	INT1	3	0	concatenation method for logical expressions
9	IS_LINK	☐	J_3RF_REP_LINKFLAG	BOOLEAN	CHAR	1	0	Specifies, whether current Element is a link to another one
10	LINK_NODE	☐	J_3RF_REP_OBJLINK	J_3RF_REP_OBJECT	INT4	10	0	Reference Reporting Object	*
11	HAS_REPCRIT	☐	J_3RF_REP_USE_REPCRIT	FLAG	CHAR	1	0	Flag for having repetition criteria
12	NODE_ALIAS	☐	J_3RF_REP_NODE_ALIAS	J_3RF_REP_NODE_ALIAS	CHAR	20	0	Node Alias
13	INVERT_SIGN	☐	J_3RF_REP_INV_SIGN	FLAG	CHAR	1	0	Invert sign for all nested attributes

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	J_3RFREP_OBJ_MAIN	RELATKEY	J_3RFREP_OBJECTS	MANDT	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in	607
