SAP ABAP Table J_3RFREP_CONDREF (Reporting Hierarchy Object: ref. to other node conditions)
Hierarchy
☛ SAP_FIN (Software Component) SAP_FIN
   ⤷ FI-LOC (Application Component) Localization
     ⤷ J3RFTAX (Package) Tax Accounting
Basic Data
Table Category TRANSP    Transparent table

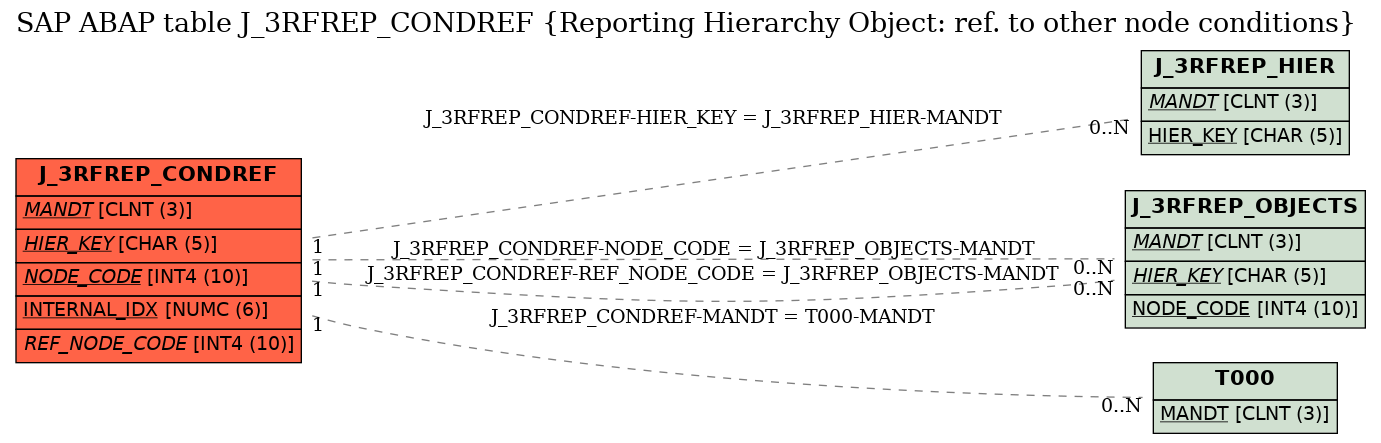

Transparent table J_3RFREP_CONDREF   Table Relationship Diagram
Short Description Reporting Hierarchy Object: ref. to other node conditions
Delivery and Maintenance
Pool/cluster
Delivery Class E   Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 .INCLUDE       0   0   Whole Key of the Reporting Object Inclusion Criteria
2 .INCLUDE       0   0   Whole Key of the Reporting Hierarchy Object
3 .INCLUDE       0   0   Key Fields of Reporting Hierarchy Object
4 MANDT MANDT MANDT CLNT 3   0   Client T000
5 HIER_KEY J_3RF_REP_HIER_KEY J_3RF_REP_HIER_KEY CHAR 5   0   Reporting Hierarchy Code J_3RFREP_HIER
6 .INCLUDE       0   0   Key Fields of Reporting Hierarchy Object
7 NODE_CODE J_3RF_REP_OBJ_CODE J_3RF_REP_OBJECT INT4 10   0   Reporting Hierarchy Object classification code J_3RFREP_OBJECTS
8 .INCLUDE       0   0   Key Fields Reporting Object Inclusion Criteria
9 INTERNAL_IDX J_3RF_REP_INTINDEX NUMC6 NUMC 6   0   Internal Index for Reporting Hierarchy Elements
10 .INCLUDE       0   0   References for conditions on other
11 REF_NODE_CODE J_3RF_REP_OBJ_CODE J_3RF_REP_OBJECT INT4 10   0   Reporting Hierarchy Object classification code J_3RFREP_OBJECTS
12 OPERATION J_3RF_REP_CONCAT_METHOD J_3RF_REP_CONCAT_METHOD INT1 3   0   concatenation method for logical expressions
13 OP_RESULT J_3RF_REP_TARGET_RESULT BOOLEAN CHAR 1   0   Operation Result
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 J_3RFREP_CONDREF HIER_KEY J_3RFREP_HIER MANDT KEY 1 CN
2 J_3RFREP_CONDREF MANDT T000 MANDT KEY 1 CN
3 J_3RFREP_CONDREF NODE_CODE J_3RFREP_OBJECTS MANDT KEY 1 CN
4 J_3RFREP_CONDREF REF_NODE_CODE J_3RFREP_OBJECTS MANDT KEY 1 CN
History
Last changed by/on SAP  20130529
SAP Release Created in 607
